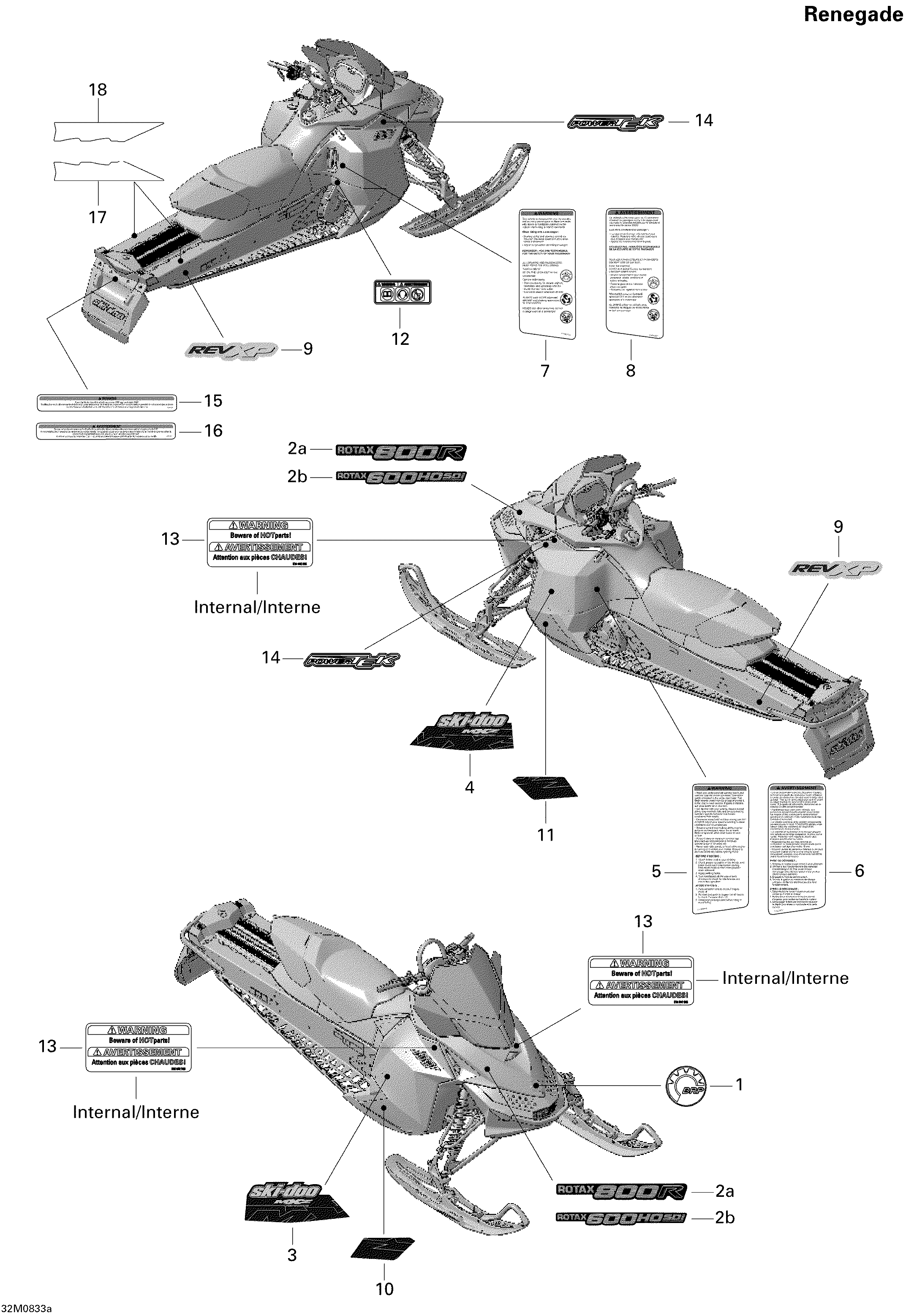

09- Decals 800R REN для BRP Ski-Doo MX Z RENEGADE 800R - 2008
-
№АртикулНазвание
-
1219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
2a516003440 Hood Decal, Rotax 800R. 800R PTEKHood Decal, Rotax 800R. 800R PTEK
-
3516003449 RH Lower DecalRH Lower Decal
-
4516003450 LH Lower DecalLH Lower Decal
-
5516003556 Decal Security, EnglishDecal Security, English
-
6516003557 Decal Security, FrenchDecal Security, French
-
7516003558 Decal Security, EnglishDecal Security, English
-
8516003559 Decal Security, FrenchDecal Security, French
-
9516003543 REV XP DecalREV XP Decal
-
10516003446 RH Lower DecalRH Lower Decal
-
11516003445 LH Lower DecalLH Lower Decal
-
12516003027 Europe Pictogram Decal. EuropeEurope Pictogram Decal. Europe
-
13516002965 Security Label, Hot PartsSecurity Label, Hot Parts
-
14516003028 ''PTEK'' Decal. 800R PTEK''PTEK'' Decal. 800R PTEK
-
15516003578 Warning Decal, EnglishWarning Decal, English
-
16516003579 Warning Decal, FrenchWarning Decal, French
