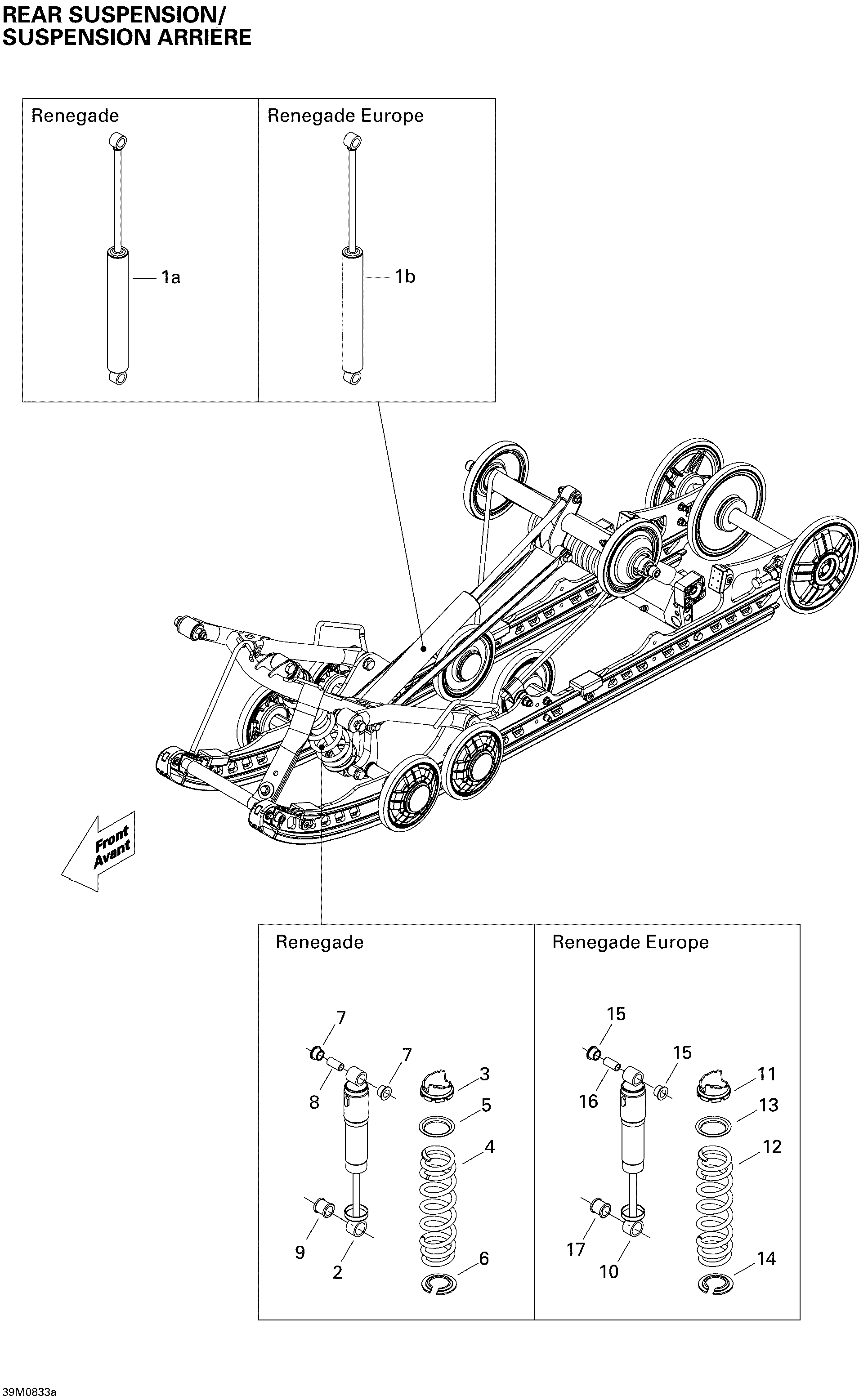

08- Rear Suspension Shocks Renegade для BRP Ski-Doo MX Z RENEGADE 800R - 2008
-
№АртикулНазвание
-
1a503191584 Rear ShockRear Shock
-
1b503191815 Rear Shock. EuropeRear Shock. Europe
-
2503191799 Center ShockCenter Shock
-
3505070150 Adjustment CamAdjustment Cam
-
4503191329 SpringSpring
-
5503191872 Spring GuideSpring Guide
-
6503191535 Spring StopperSpring Stopper
-
7503189117 CushionCushion
-
8503189282 BushingBushing
-
9503189271 CushionCushion
-
10503191813 Center Shock. EuropeCenter Shock. Europe
-
11505070150 Adjustment Cam. EuropeAdjustment Cam. Europe
-
12503191329 Spring. EuropeSpring. Europe
-
13503191872 Spring Guide. EuropeSpring Guide. Europe
-
14503191535 Spring Stopper. EuropeSpring Stopper. Europe
-
15503189117 Cushion. EuropeCushion. Europe
-
16503189282 Bushing. EuropeBushing. Europe
-
17503189271 Cushion. EuropeCushion. Europe
