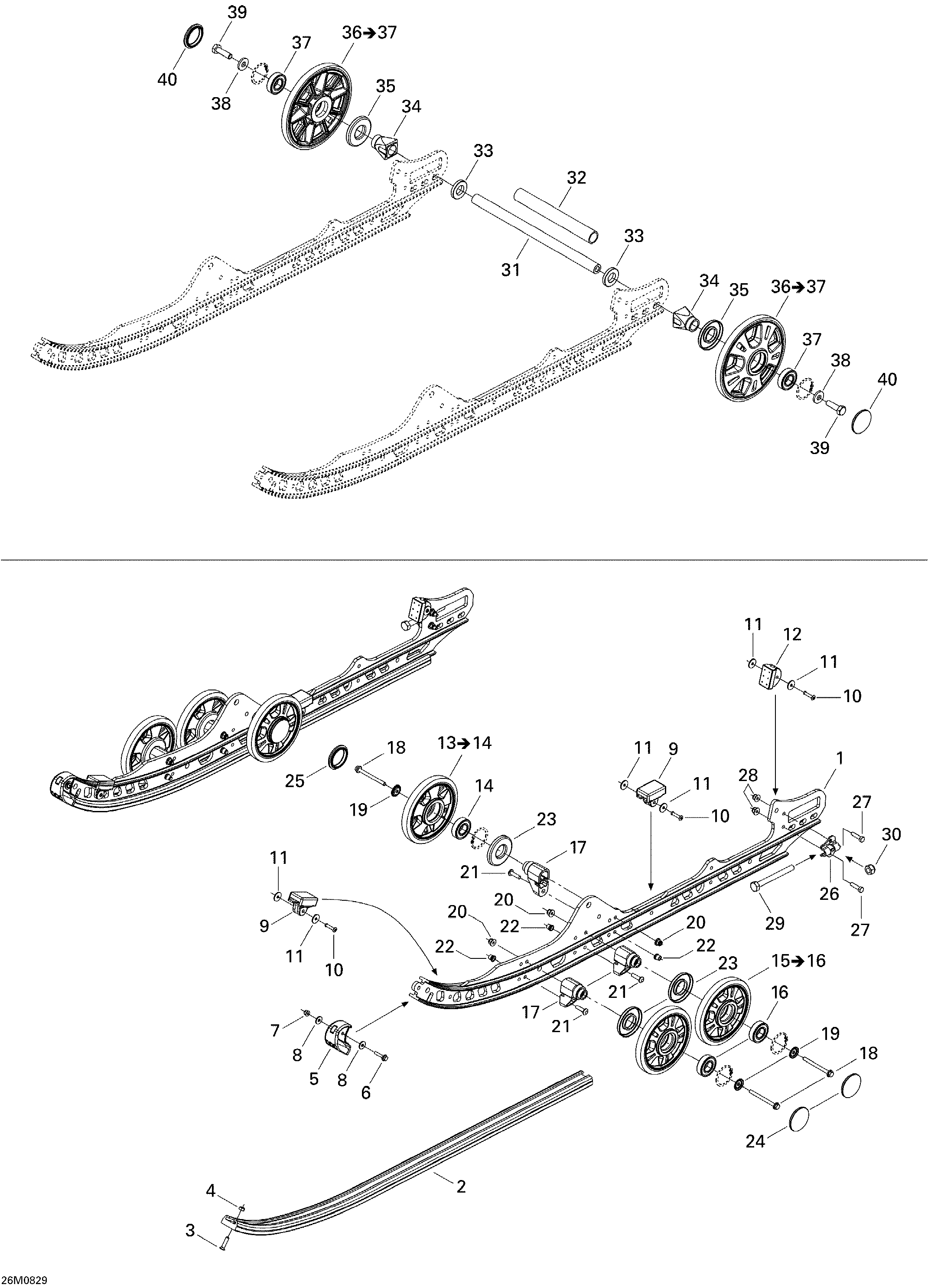

08- Rear Suspension для BRP Ski-Doo MX Z X 600 HO SDI - 2008
-
№АртикулНазвание
-
1503191158 Runner 120''Runner 120''
-
2503191301 Slider Shoe 120'', BlackSlider Shoe 120'', Black
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13503191151 Wheel 141 mm Ass'y, Black. Includes 13 to 14Wheel 141 mm Ass'y, Black. Includes 13 to 14
-
14503190396 Ball BearingBall Bearing
-
15503191151 Wheel 141 mm Ass'y, Black. Includes 15 to 16Wheel 141 mm Ass'y, Black. Includes 15 to 16
-
16503190396 Ball BearingBall Bearing
-
17503191833 SupportSupport
-
18207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
19503191820 Wheel Cup M6Wheel Cup M6
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23503190434 Labyrinth SealLabyrinth Seal
-
24570063600 Wheel CapWheel Cap
-
25570063600 Wheel CapWheel Cap
-
26503190380 TensionerTensioner
-
27207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
30233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
31503190429 Rear AxleRear Axle
-
32503191108 SpacerSpacer
-
33503190432 WasherWasher
-
34503190428 Rear Wheel SpacerRear Wheel Spacer
-
35503190434 Labyrinth SealLabyrinth Seal
-
36503191742 Wheel 180 mm Ass'y, Black. Includes 36 to 37Wheel 180 mm Ass'y, Black. Includes 36 to 37
-
37503190396 Ball BearingBall Bearing
-
38503190439 WasherWasher
-
39250000019 Hex. Screw With NylonHex. Screw With Nylon
-
40570063600 Wheel CapWheel Cap
