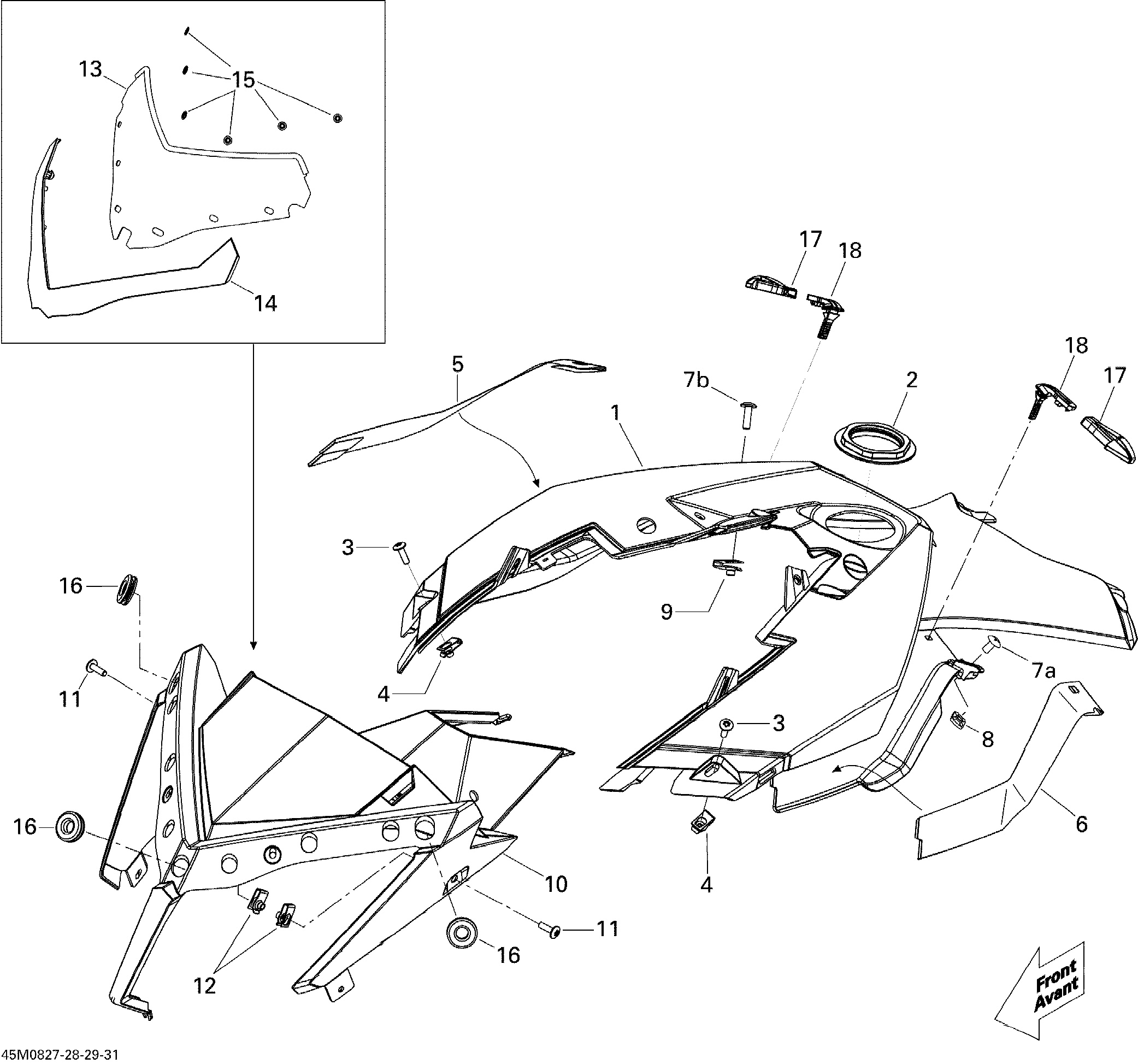

09- Windshield And Console 600HO SDI для BRP Ski-Doo MX Z X 600 HO SDI - 2008
![](/wa-data/public/shop/sheme/bombardier/ski-doo/1af5fb33-ea08-457e-80e4-7929e9ce81c5.png)
-
№АртикулНазвание
-
1517303778 Console, Yellow. 600HO SDI, Yellow/Yellow ModelConsole, Yellow. 600HO SDI, Yellow/Yellow Model
-
1517303922 Console, Black. 600HO SDI, Black/Lava Grey ModelConsole, Black. 600HO SDI, Black/Lava Grey Model
-
2517302575 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5517304103 RH DecalRH Decal
-
6517304104 LH DecalLH Decal
-
7A250000353 Phillips Screw M8 X 12Phillips Screw M8 X 12
-
7b250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8250100106 Weld Nut M6Weld Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517303603 Indicator SupportIndicator Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13517303621 WindshieldWindshield
-
14517303757 Windshield SupportWindshield Support
-
15732610072 Push NutPush Nut
-
16517303756 GrommetGrommet
-
17517303978 End Piece, Yellow. Yellow/Yellow ModelEnd Piece, Yellow. Yellow/Yellow Model
-
17517303980 End Piece, Grey Volcano. Black/Lava Grey ModelEnd Piece, Grey Volcano. Black/Lava Grey Model
-
18517303981 Panel LatchPanel Latch
