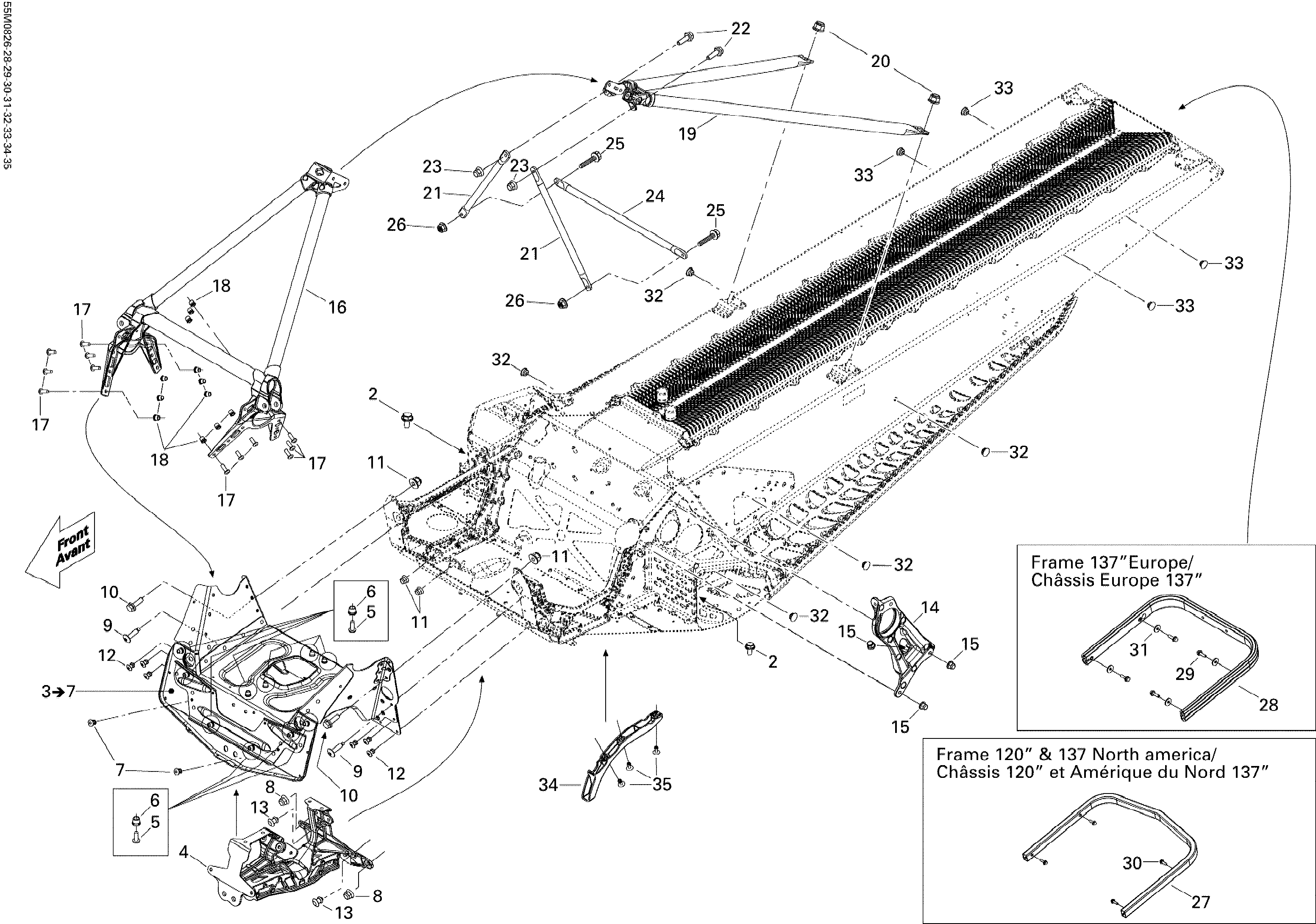

09- Frame and Components для BRP Ski-Doo MX Z X 600 HO SDI - 2008
-
№АртикулНазвание
-
2207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
3518325660 Cross-member. Includes 3 to 7Cross-member. Includes 3 to 7
-
4518324860 Front Suspension SupportFront Suspension Support
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7293150144 Stavex RivetStavex Rivet
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
10207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12293150144 Stavex RivetStavex Rivet
-
13293150147 Hemlock RivetHemlock Rivet
-
14518324908 Driven Pulley SupportDriven Pulley Support
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16518324844 Front MemberFront Member
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19518325082 Rear MemberRear Member
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21518325114 Upper Column SupportUpper Column Support
-
22207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24518325115 Center Column SupportCenter Column Support
-
25207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27518324980 Rear BumperRear Bumper
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32293730041 Dart 8 mmDart 8 mm
-
33293730042 DartDart
-
34518324985 Front ProtectorFront Protector
-
35293150108 Pop Rivet 3/16''Pop Rivet 3/16''
