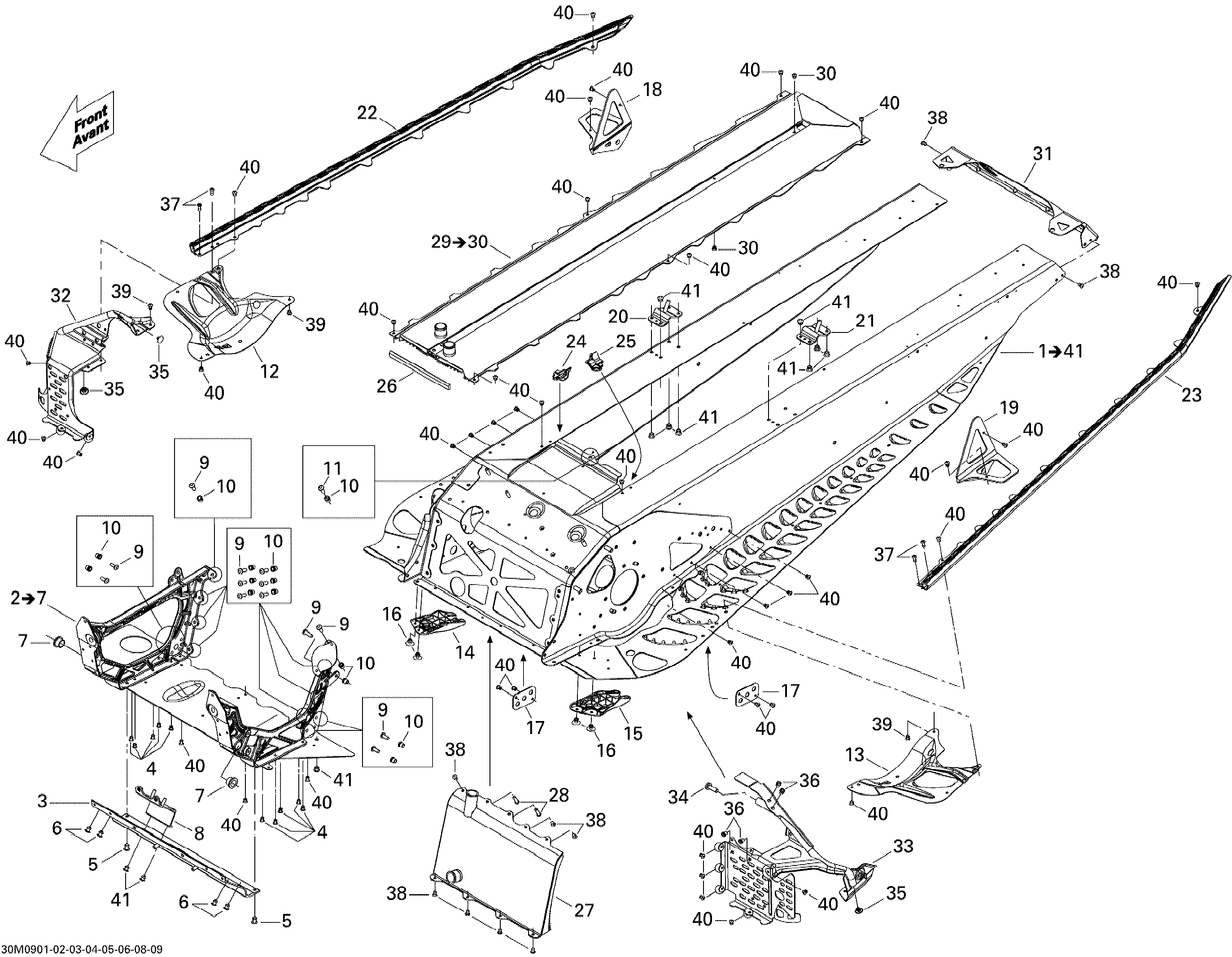

09- Frame для BRP Ski-Doo MX Z TNT 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1415129382 Frame, 120''. Includes 1 to 41Frame, 120''. Includes 1 to 41
-
2518326069 E-Module. Includes 2 to 7E-Module. Includes 2 to 7
-
3518325091 Front MemberFront Member
-
4293150144 Stavex RivetStavex Rivet
-
5293150147 Hemlock RivetHemlock Rivet
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505070954 CushionCushion
-
8518325943 MAG Engine SupportMAG Engine Support
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12518324874 RH ReinforcementRH Reinforcement
-
13518324875 LH ReinforcementLH Reinforcement
-
14518325782 RH DeflectorRH Deflector
-
15518325783 LH DeflectorLH Deflector
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17518201321 Reinforcement PlateReinforcement Plate
-
18518324885 RH Slide BracketRH Slide Bracket
-
19518324886 LH Slide BracketLH Slide Bracket
-
20518325973 RH Rear BaseRH Rear Base
-
21518325974 LH Rear BaseLH Rear Base
-
22518324812 RH RollerRH Roller
-
23518324813 LH RollerLH Roller
-
24518325653 RH SealRH Seal
-
25518325654 LH SealLH Seal
-
26293200105 Neoprene SealNeoprene Seal
-
27518325714 Front RadiatorFront Radiator
-
28250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
29518325666 Rear Radiator. Includes 29 to 30Rear Radiator. Includes 29 to 30
-
30293150144 Stavex RivetStavex Rivet
-
31518325421 Rear CapRear Cap
-
32518326032 RH StirrupRH Stirrup
-
33518326021 LH StirrupLH Stirrup
-
34250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35293730042 DartDart
-
36293450268 InsertInsert
-
37390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
38390909200 Avex RivetAvex Rivet
-
39390909100 Avex RivetAvex Rivet
-
40293150144 Stavex RivetStavex Rivet
-
41293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
