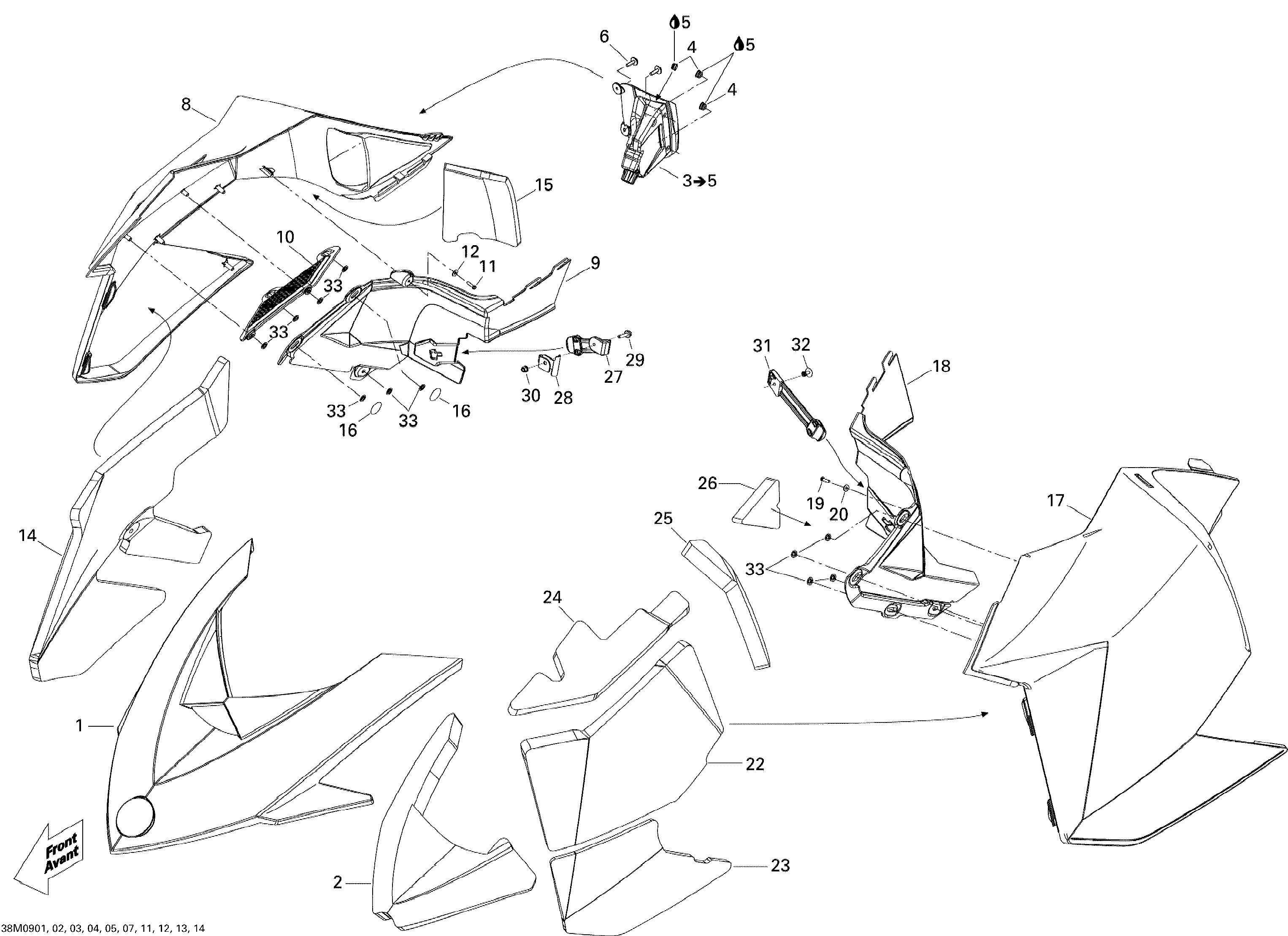

09- Hood для BRP Ski-Doo MX Z TNT 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1517303598 Hood, YellowHood, Yellow
-
2517303990 Hood FoamHood Foam
-
3517304322 RH Console. Manual StarterRH Console. Manual Starter
-
4275500241 Cap, Black. Manual StarterCap, Black. Manual Starter
-
5413408300 Loctite, Black Max, 3 ml. Manual StarterLoctite, Black Max, 3 ml. Manual Starter
-
6250000113 Screw M4 X 16, Type K-40. Manual StarterScrew M4 X 16, Type K-40. Manual Starter
-
8517304210 RH Panel. Electric StarterRH Panel. Electric Starter
-
8517304029 RH Panel. Manual StarterRH Panel. Manual Starter
-
9517303671 RH Moulding PanelRH Moulding Panel
-
10517303622 GrillGrill
-
11241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
12234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
14517304149 RH Panel Center FoamRH Panel Center Foam
-
15517303982 RH Panel Rear FoamRH Panel Rear Foam
-
16518325560 Adhesive PatchAdhesive Patch
-
17517304030 LH PanelLH Panel
-
18517303673 LH Moulding PanelLH Moulding Panel
-
19241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
20234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
22517303983 LH Panel Center FoamLH Panel Center Foam
-
23517303984 LH Panel Lower FoamLH Panel Lower Foam
-
24517303985 LH Panel Upper FoamLH Panel Upper Foam
-
25517303986 LH Panel Rear FoamLH Panel Rear Foam
-
26517303987 FoamFoam
-
27517303612 Panel LatchPanel Latch
-
28517304221 Latch SupportLatch Support
-
29207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
30233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
31517303808 Panel LatchPanel Latch
-
32293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
33732610072 Push NutPush Nut
