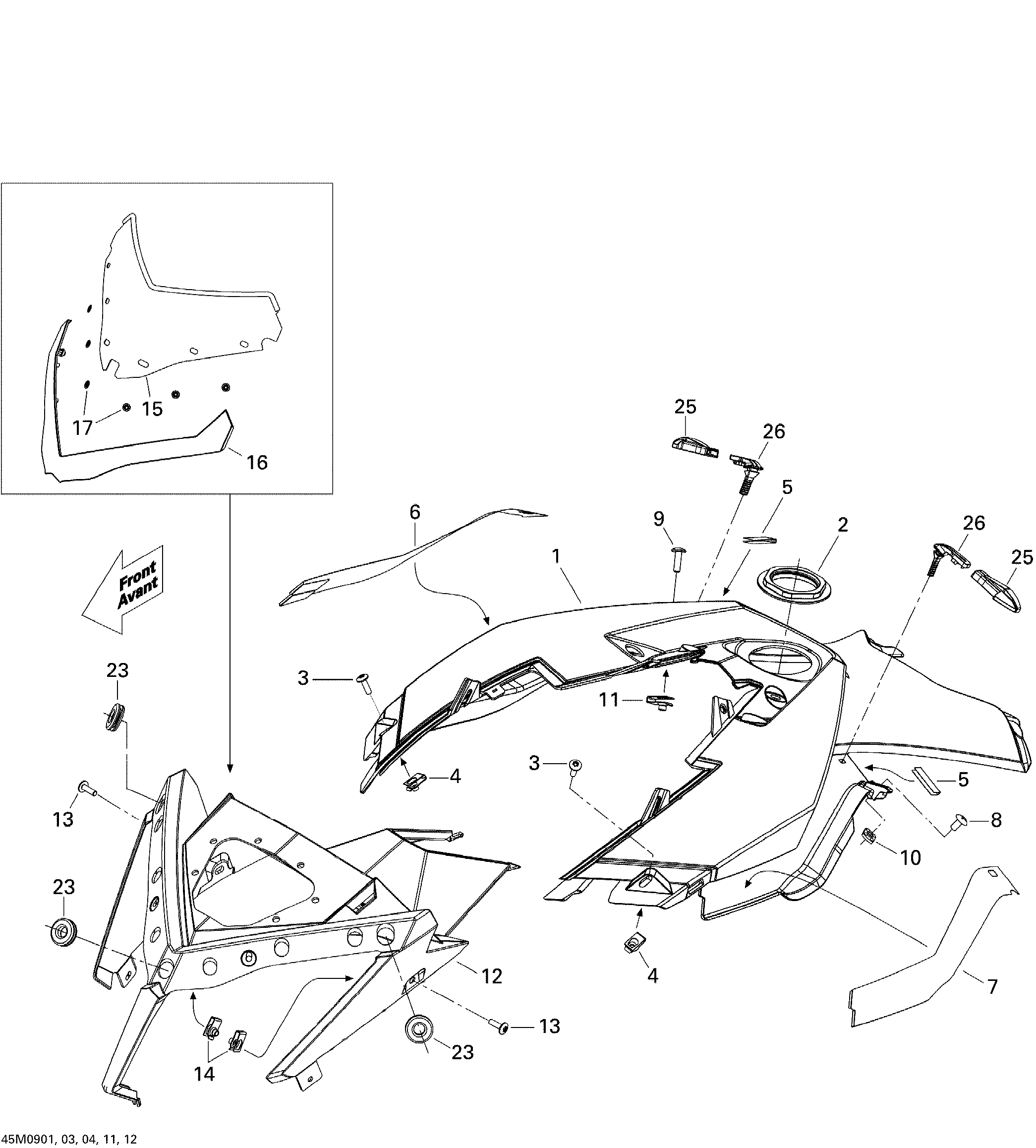

09- Windshield And Console для BRP Ski-Doo MX Z TNT 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1517303778 Console, YellowConsole, Yellow
-
2517302575 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5517304105 Console DecalConsole Decal
-
6517304103 RH DecalRH Decal
-
7517304104 LH DecalLH Decal
-
8250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
9250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
10250100106 Weld Nut M6Weld Nut M6
-
11250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
12517303603 Indicator SupportIndicator Support
-
13250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
14250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
15517304226 Low Windshield Ass'yLow Windshield Ass'y
-
16517303757 Windshield SupportWindshield Support
-
17732610072 Push NutPush Nut
-
23517303756 GrommetGrommet
-
25517304075 End Piece LatchEnd Piece Latch
-
26517303981 Panel LatchPanel Latch
