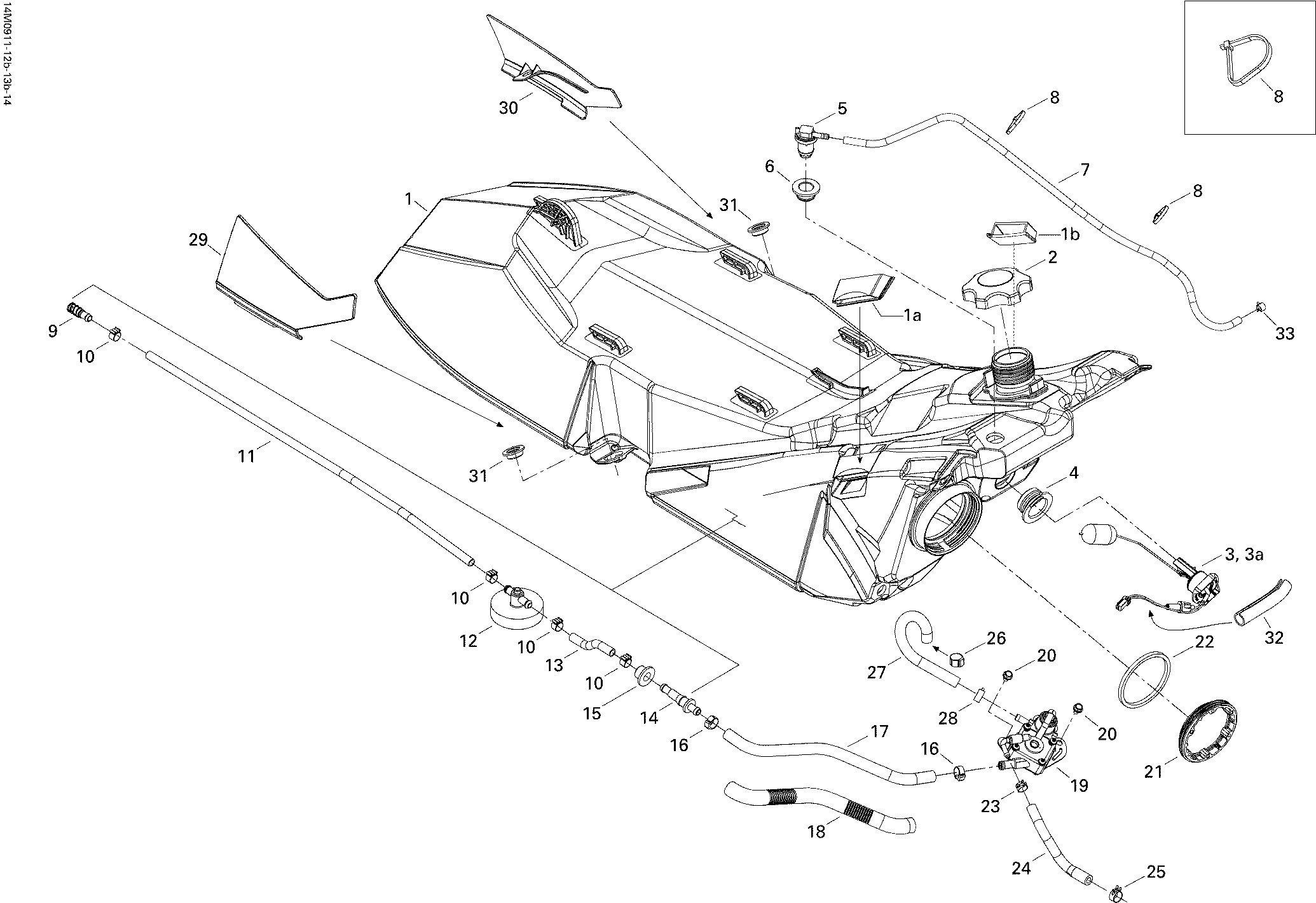

02- Fuel System 800R для BRP Ski-Doo Summit X 800R Power T.E.K. - 2009
-
№АртикулНазвание
-
1513033458 Fuel TankFuel Tank
-
1a513033471 RH Side Panel ClipRH Side Panel Clip
-
1b513033472 LH Side Panel ClipLH Side Panel Clip
-
2513033024 Fuel CapFuel Cap
-
3513033168 Fuel SensorFuel Sensor
-
3a710001995 Fuel Sensor FuseFuel Sensor Fuse
-
4513033559 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033189 GrommetGrommet
-
7415080200 Polyurethane HosePolyurethane Hose
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9414872100 Fuel FilterFuel Filter
-
10513033010 Norma Spring ClampNorma Spring Clamp
-
11513033332 HoseHose
-
12513033353 MP Pick-UpMP Pick-Up
-
13513033352 HoseHose
-
14414872700 Male ConnectorMale Connector
-
15513033435 GrommetGrommet
-
16293650053 Crimp ClampCrimp Clamp
-
17513033165 HoseHose
-
18415080000 Tubing 16 mmTubing 16 mm
-
19513033184 Fuel PumpFuel Pump
-
20210261040 Hex. Flanged Forming Screw M6 X 10Hex. Flanged Forming Screw M6 X 10
-
21513033330 CapCap
-
22513033334 GasketGasket
-
23414415200 Universal Spring ClampUniversal Spring Clamp
-
24513033327 HoseHose
-
25513033029 Spring ClampSpring Clamp
-
26293650125 Oetiker ClampOetiker Clamp
-
27513033343 HoseHose
-
28414655700 Spring ClampSpring Clamp
-
29513033418 RH CapRH Cap
-
30513033419 LH CapLH Cap
-
31513033326 Shoulder BushingShoulder Bushing
-
32415080000 Tubing 16 mmTubing 16 mm
-
33414554800 Spring ClampSpring Clamp
