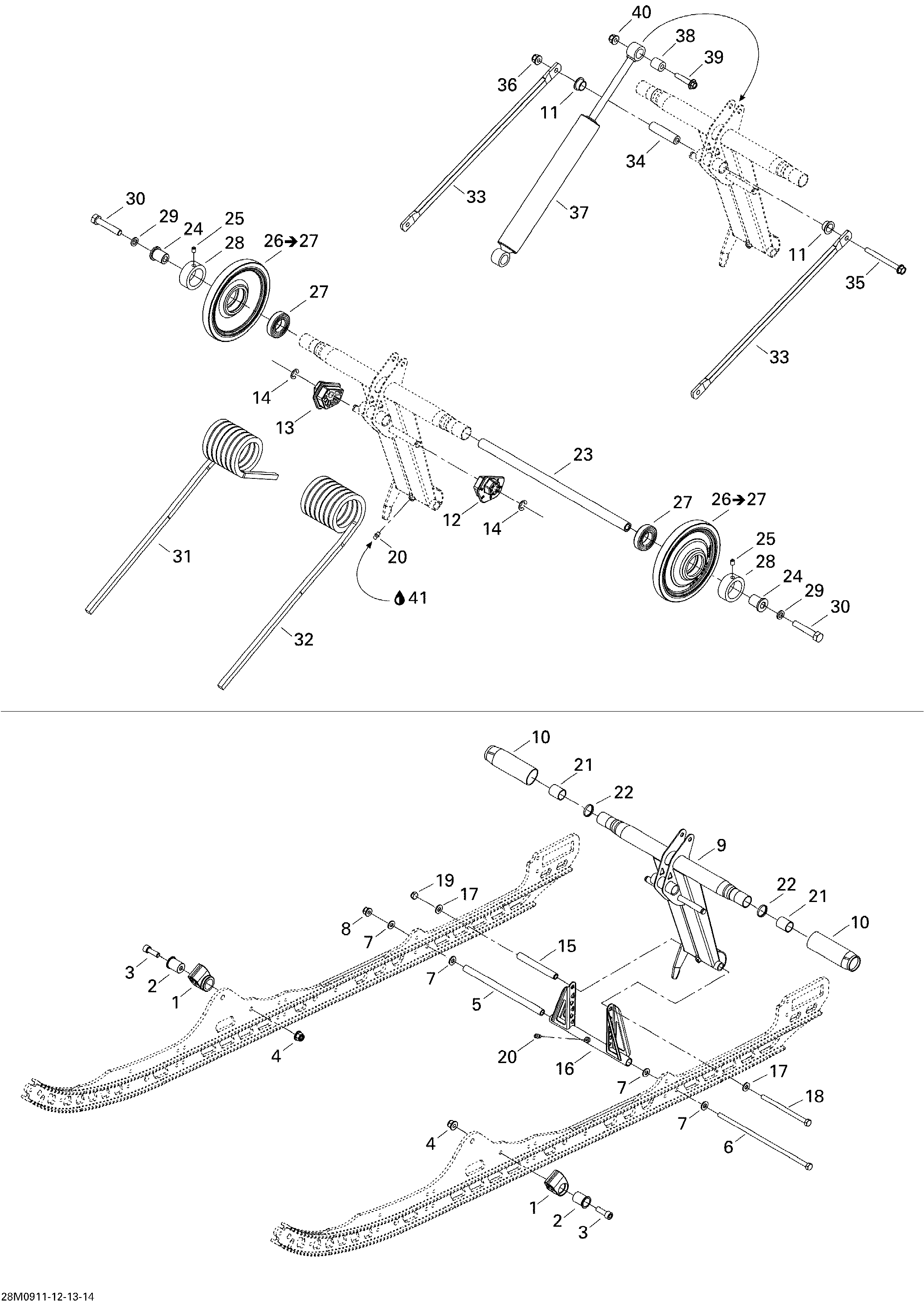

08- Rear Arm для BRP Ski-Doo Summit X 800R Power T.E.K. - 2009
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503189156 Pivot Arm AxlePivot Arm Axle
-
6732601198 Long Bolt M8Long Bolt M8
-
7503189157 WasherWasher
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9503191762 Welded Rear ArmWelded Rear Arm
-
10572080700 BushingBushing
-
11503191555 Swivel BushingSwivel Bushing
-
12503191565 LH Cam AdjusterLH Cam Adjuster
-
13503191566 RH Cam AdjusterRH Cam Adjuster
-
14293370013 E-CirclipE-Circlip
-
15503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
16503191209 Welded Pivot ArmWelded Pivot Arm
-
17503189157 WasherWasher
-
18732601197 Short Bolt M8Short Bolt M8
-
19232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
20408200700 Grease FittingGrease Fitting
-
21503191556 Extended BushingExtended Bushing
-
22503191651 WasherWasher
-
23503191215 Upper ShaftUpper Shaft
-
24503191262 BushingBushing
-
25206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
26503191738 Wheel 155. Includes 26 to 27Wheel 155. Includes 26 to 27
-
27503191982 Ball BearingBall Bearing
-
28503168800 Retaining RingRetaining Ring
-
29503189564 WasherWasher
-
30207205586 Hex. Screw, Scotch GripHex. Screw, Scotch Grip
-
31503192080 RH SpringRH Spring
-
32503192081 LH SpringLH Spring
-
33503191148 Link RodLink Rod
-
34503190643 Bar AxleBar Axle
-
35207688544 Hex. Flanged ScewHex. Flanged Scew
-
36233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
37503191534 Rear ShockRear Shock
-
38414936000 CushionCushion
-
39207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
41219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
