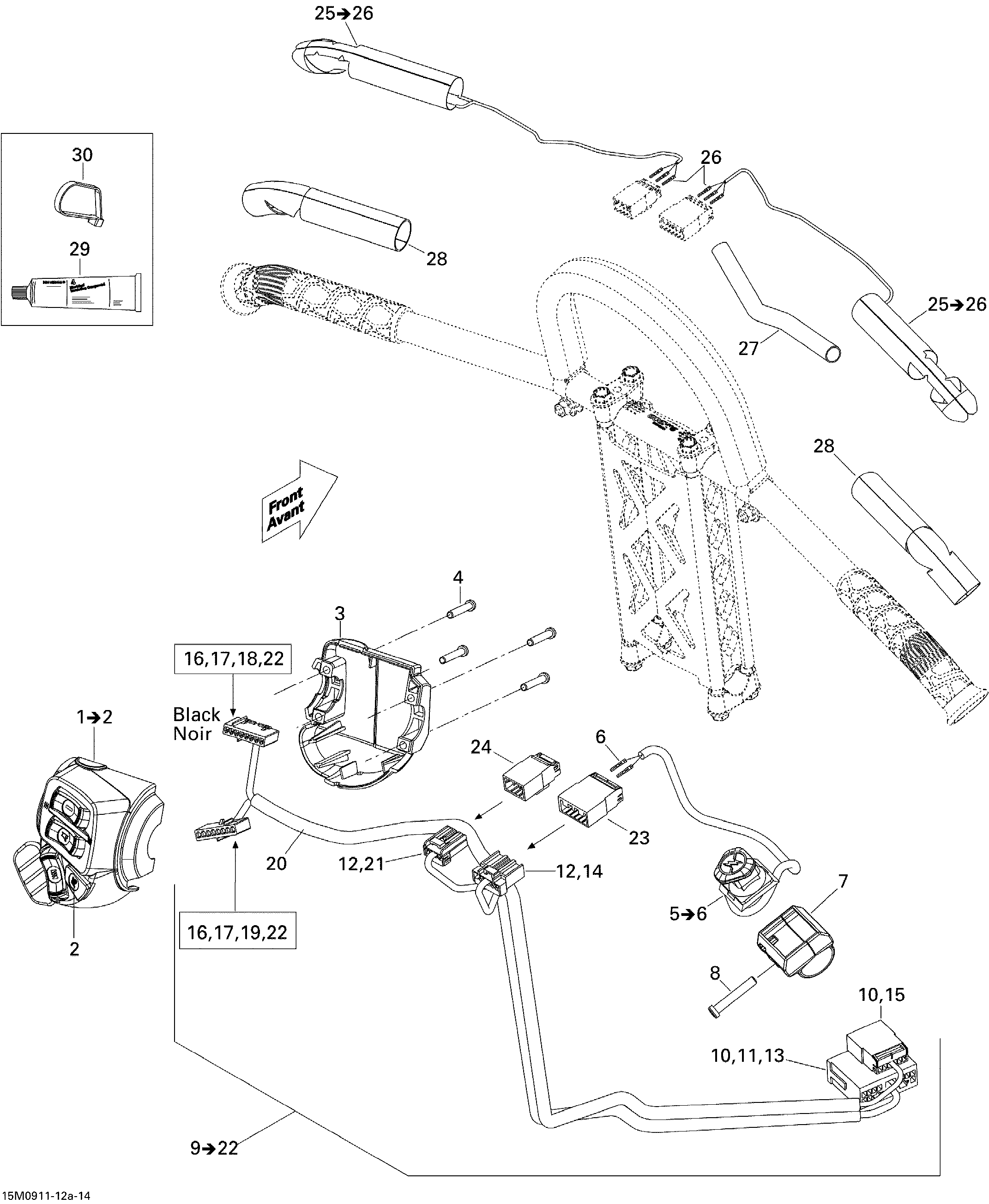

10- Steering Wiring Harness 800R для BRP Ski-Doo Summit X 800R Power T.E.K. - 2009
-
№АртикулНазвание
-
1515176503 LH Switch Housing. Includes 1 to 2LH Switch Housing. Includes 1 to 2
-
2515176088 Start/RER ButtonStart/RER Button
-
3515175926 Housing Switch PlateHousing Switch Plate
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515176708 Kill Switch. Includes 5 to 6Kill Switch. Includes 5 to 6
-
6515175232 Male TerminalMale Terminal
-
7515176825 Kill Switch SupportKill Switch Support
-
8250000263 Torx Screw #8-18Torx Screw #8-18
-
9515176422 Wiring Harness. Includes 9 to 22Wiring Harness. Includes 9 to 22
-
10515175232 Male TerminalMale Terminal
-
11515175273 Male TerminalMale Terminal
-
12515175231 Female TerminalFemale Terminal
-
13515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
14515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
15515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
16515175808 Female TerminalFemale Terminal
-
17515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
18515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
19515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
20515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
22515175941 Female TerminalFemale Terminal
-
23515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
24515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
25506152371 Heating Element. Includes 25 to 26Heating Element. Includes 25 to 26
-
26515175232 Male TerminalMale Terminal
-
27515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
28506152360 InsulantInsulant
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
30293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
30293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30293750008 Tie-Rap 350 mmTie-Rap 350 mm
