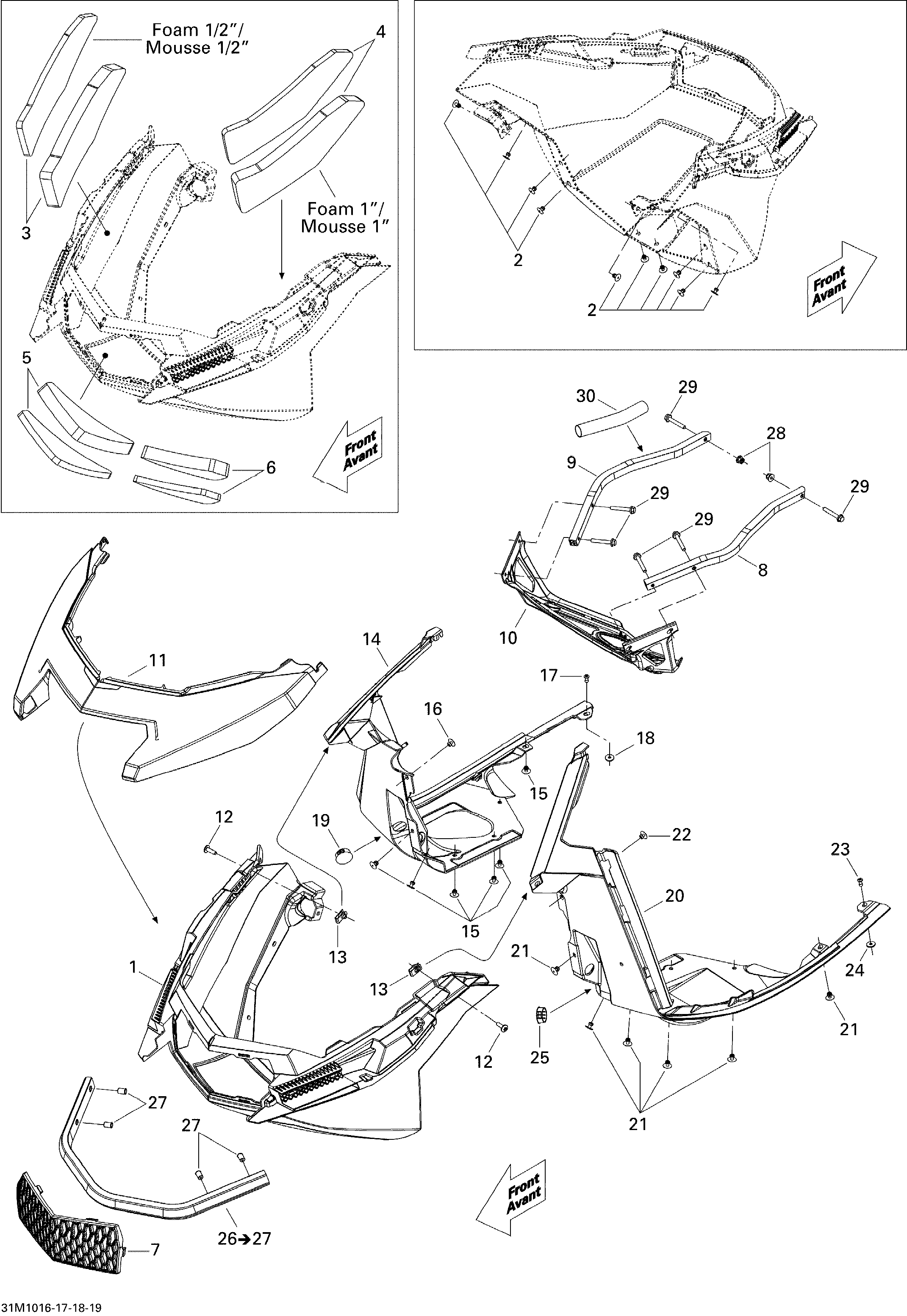

09- Bottom Pan SE для BRP Ski-Doo GSX SE 1200 - 2010
-
№АртикулНазвание
-
1502006873 Front Bottom PanFront Bottom Pan
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502007032 RH Lateral Foam, 1''RH Lateral Foam, 1''
-
4502007029 LH Lateral Foam, 1''LH Lateral Foam, 1''
-
5502007026 RH Central Foam, 1''RH Central Foam, 1''
-
6502007025 LH Central Foam, 1''LH Central Foam, 1''
-
7502006887 Botton Pan GrillBotton Pan Grill
-
8502006925 LH SupportLH Support
-
9502006926 RH SupportRH Support
-
10502006938 BracketBracket
-
11502006898 Bottom Pan Cap. Black-Black ModelBottom Pan Cap. Black-Black Model
-
11502006951 Cap. Red-Red ModelCap. Red-Red Model
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
14502006877 RH Bottom PanRH Bottom Pan
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293150104 Pop Rivet 3/16''. Black-Black ModelPop Rivet 3/16''. Black-Black Model
-
17293150104 Pop Rivet 3/16''. Red-Red ModelPop Rivet 3/16''. Red-Red Model
-
18517124300 WasherWasher
-
19414916600 Nylon CapNylon Cap
-
20502006878 LH Bottom PanLH Bottom Pan
-
21293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
22293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
23293150104 Pop Rivet 3/16''. Black-Black ModelPop Rivet 3/16''. Black-Black Model
-
23293150104 Pop Rivet 3/16''. Red-Red ModelPop Rivet 3/16''. Red-Red Model
-
24517124300 WasherWasher
-
25414916600 Nylon CapNylon Cap
-
26502006939 Bumper. Includes 26 to 27Bumper. Includes 26 to 27
-
27415107300 InsertInsert
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
30409902200 Tubing 25 mmTubing 25 mm
