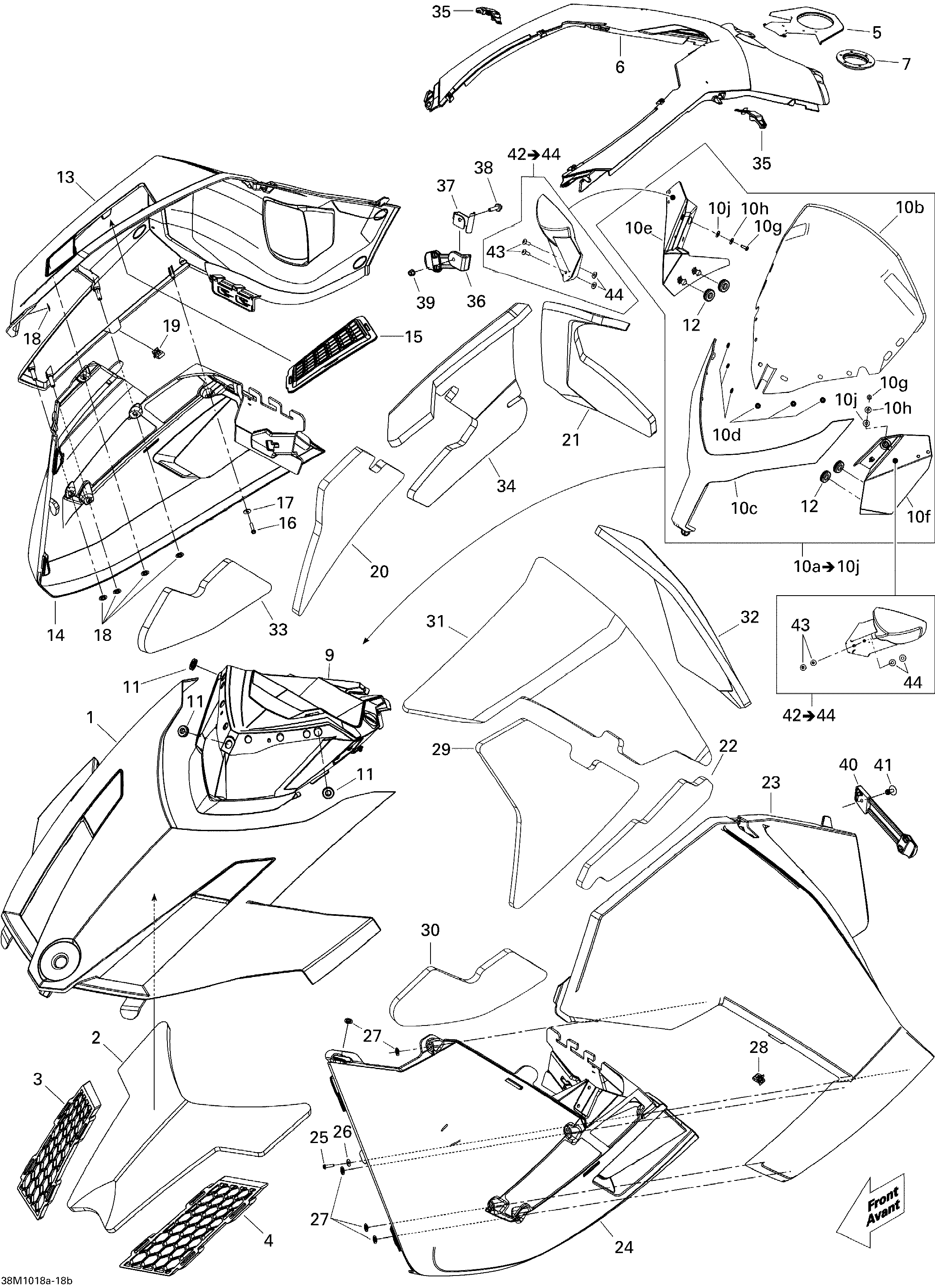

09- Hood SE 1200 для BRP Ski-Doo GSX SE 1200 - 2010
-
№АртикулНазвание
-
1517303739 Hood. Black-Black ModelHood. Black-Black Model
-
1517304037 Hood. Red-Red ModelHood. Red-Red Model
-
2517303740 Foam HoodFoam Hood
-
3517304243 RH Hood GrillRH Hood Grill
-
4517304242 LH Hood GrillLH Hood Grill
-
5517304027 Cap ConsoleCap Console
-
6517303741 Console. Black-Black ModelConsole. Black-Black Model
-
6517304042 Console. Red-Red ModelConsole. Red-Red Model
-
7517304518 Console NutConsole Nut
-
9517303996 Indicator SupportIndicator Support
-
10b517303797 High WindshieldHigh Windshield
-
10c517303798 Medium Windshield SupportMedium Windshield Support
-
10d732610072 Push NutPush Nut
-
10e517303799 RH Console Air DeflectorRH Console Air Deflector
-
10f517303800 LH Console Air DeflectorLH Console Air Deflector
-
10g250000146 Truss Head Torx Screw, K50 X 16Truss Head Torx Screw, K50 X 16
-
10h250200025 Washer M5Washer M5
-
10j250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
11517303756 GrommetGrommet
-
12517303756 GrommetGrommet
-
13517304006 RH Pannel. Black-Black ModelRH Pannel. Black-Black Model
-
13517304046 RH Pannel. Red-Red ModelRH Pannel. Red-Red Model
-
14517304373 RH Pannel MouldingRH Pannel Moulding
-
15517304240 Pannel Grill. Black-Black ModelPannel Grill. Black-Black Model
-
15517303801 Pannel Grill. Red-Red ModelPannel Grill. Red-Red Model
-
16241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
17234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
18732610072 Push NutPush Nut
-
19517302785 ClipClip
-
20517303750 RH Central Pannel FoamRH Central Pannel Foam
-
21517303751 RH Central Pannel FoamRH Central Pannel Foam
-
22517304277 LH Central Pannel FoamLH Central Pannel Foam
-
23517303753 LH Pannel. Black-Black ModelLH Pannel. Black-Black Model
-
23517304054 LH Pannel. Red-Red ModelLH Pannel. Red-Red Model
-
24517304362 LH Pannel MouldingLH Pannel Moulding
-
25241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
26234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
27732610072 Push NutPush Nut
-
28517302785 ClipClip
-
29517304274 LH Central Pannel FoamLH Central Pannel Foam
-
30517304059 LH Low Pannel FoamLH Low Pannel Foam
-
31517304276 LH Upper Panel FoamLH Upper Panel Foam
-
32517304135 LH Rear Panel FoamLH Rear Panel Foam
-
33517304063 RH Low Panel FoamRH Low Panel Foam
-
34517304080 RH Upper Panel FoamRH Upper Panel Foam
-
35517303973 Panel LatchPanel Latch
-
36517303612 Panel LatchPanel Latch
-
37517304221 Latch SupportLatch Support
-
38207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
39233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
40517303808 Panel LatchPanel Latch
-
41293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
42517304145 RH Mirror Ass'y. Includes 42 to 44RH Mirror Ass'y. Includes 42 to 44
-
42517304146 LH Mirror Ass'y. Includes 42 to 44LH Mirror Ass'y. Includes 42 to 44
-
43250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
44250200024 Rubber Washer 5 mmRubber Washer 5 mm
