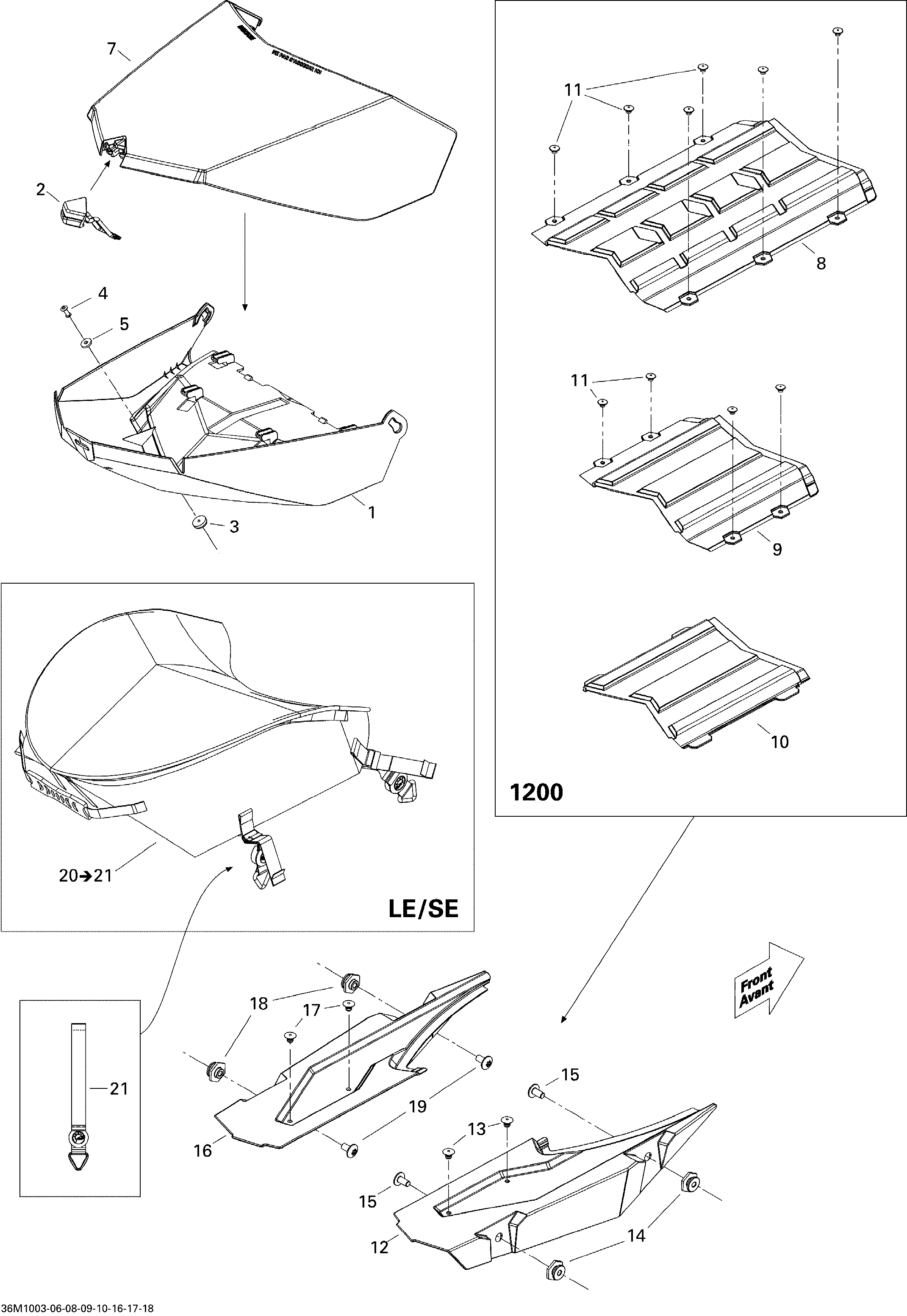

09- Luggage Rack 1200 SE для BRP Ski-Doo GSX SE 1200 - 2010
-
№АртикулНазвание
-
1511000487 TrunkTrunk
-
2511000528 BracketBracket
-
3415018100 Rubber StopperRubber Stopper
-
4390401600 Pop Rivet 1/8''Pop Rivet 1/8''
-
5293150007 WasherWasher
-
7511000568 Trunk Cover, Black. SE, Black/Black ModelTrunk Cover, Black. SE, Black/Black Model
-
7511000569 Trunk Cover. SE, Red/Red ModelTrunk Cover. SE, Red/Red Model
-
8511000590 Radiator Cover. SERadiator Cover. SE
-
11293150103 Pop Rivet 3/16''. SEPop Rivet 3/16''. SE
-
14520000646 Anchor LinkAnchor Link
-
15250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
18520000646 Anchor LinkAnchor Link
-
19250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
20511000539 Rear Bag. Includes 20 to 21Rear Bag. Includes 20 to 21
-
21860200138 Fastener Button With StrapFastener Button With Strap
