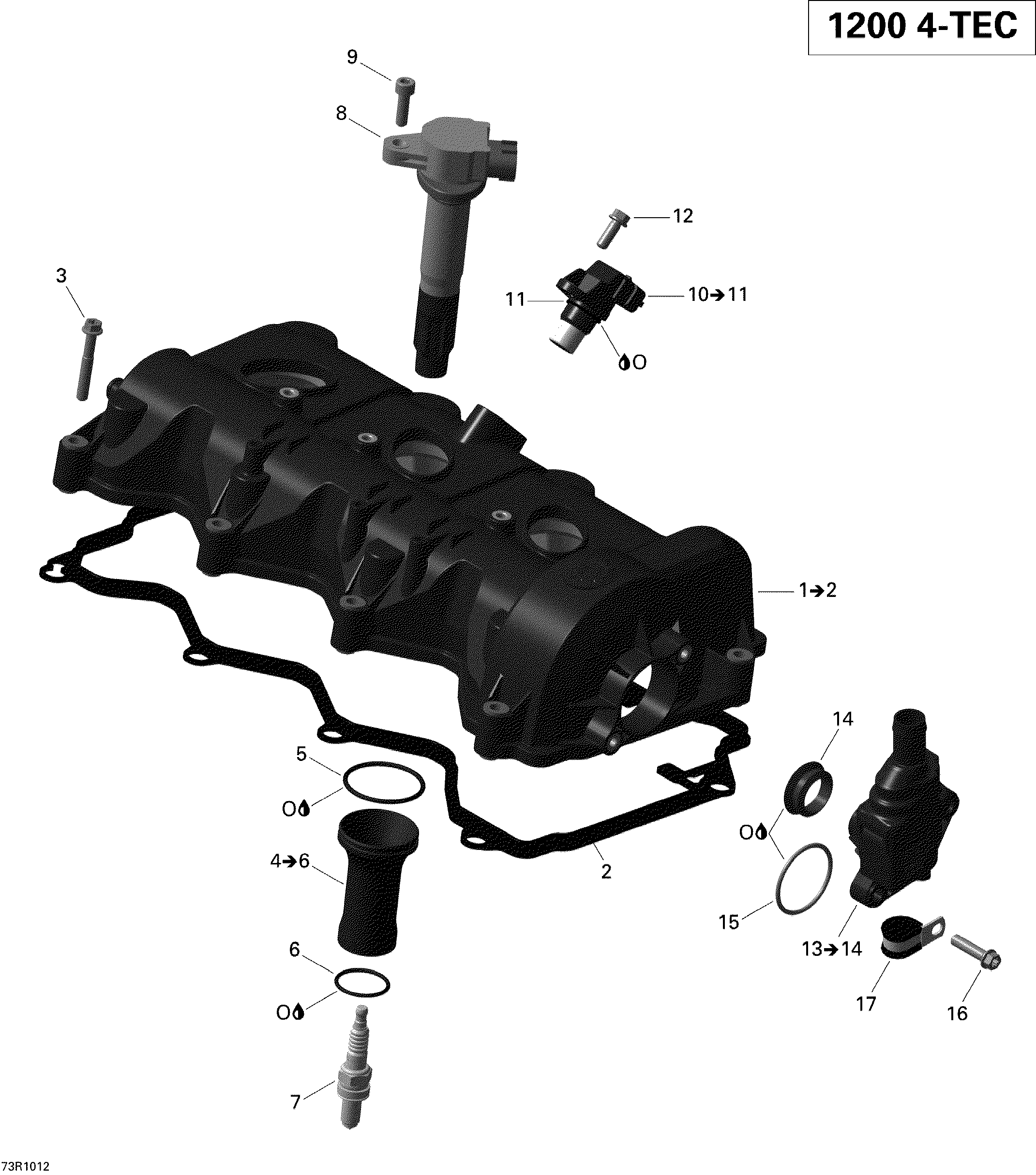

01- Valve Cover для BRP Ski-Doo MX Z X 1200 - 2010
-
№АртикулНазвание
-
1420611856 Valve Cover Ass'y. Includes 1 to 2Valve Cover Ass'y. Includes 1 to 2
-
2420431041 GasketGasket
-
3420440282 Flanged Torx Screw M6 X 40Flanged Torx Screw M6 X 40
-
4420460585 Spark Plug Pipe Ass'y. Includes 4 to 6Spark Plug Pipe Ass'y. Includes 4 to 6
-
5420431740 O-RingO-Ring
-
6420631611 O-RingO-Ring
-
7415129429 Spark Plug, NGK CR8EKBSpark Plug, NGK CR8EKB
-
8420665810 Stick CoilStick Coil
-
9205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
10420664044 Camshaft Sensor. Includes 10 to 11Camshaft Sensor. Includes 10 to 11
-
11420631890 O-RingO-Ring
-
12420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
13420856505 Vent Valve Ass'y. Includes 13 to 14Vent Valve Ass'y. Includes 13 to 14
-
14420630125 V-RingV-Ring
-
15420950870 O-RingO-Ring
-
16420440232 Torx Screw M6 X 25Torx Screw M6 X 25
-
17420851492 Cable ClampCable Clamp
