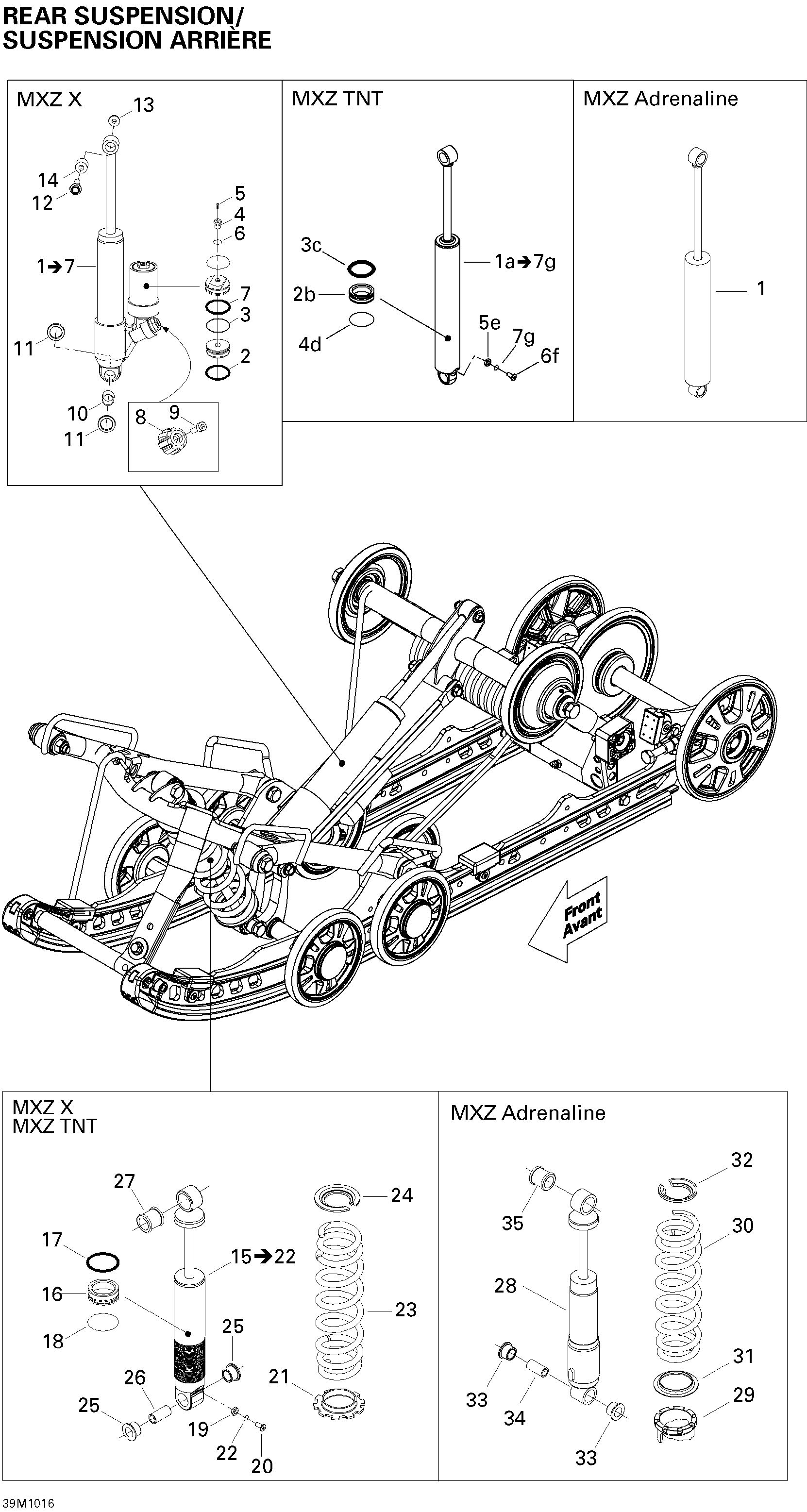

08- Rear Suspension Shocks X для BRP Ski-Doo MX Z X 1200 - 2010
-
№АртикулНазвание
-
1503192204 Rear Shock. Includes 1 to 7, MXZ XRear Shock. Includes 1 to 7, MXZ X
-
2415093807 O-RingO-Ring
-
3415093806 Piston RingPiston Ring
-
4505070398 Air Valve RingAir Valve Ring
-
5505070399 ScrewScrew
-
6505070400 O-RingO-Ring
-
7415093804 O-RingO-Ring
-
8505072753 Knob AjusterKnob Ajuster
-
9205031060 Socket Screw M3 X 10Socket Screw M3 X 10
-
10503191553 BushingBushing
-
11503190694 Plastic SpacerPlastic Spacer
-
12207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14414936000 CushionCushion
-
15503191791 Center Shock. Includes 15 to 22, MXZ XCenter Shock. Includes 15 to 22, MXZ X
-
16503189309 Free PistonFree Piston
-
17414888312 O-RingO-Ring
-
18503189308 Piston RingPiston Ring
-
19505070398 Air Valve RingAir Valve Ring
-
20505070399 ScrewScrew
-
21414888316 Spring CollarSpring Collar
-
22505070400 O-RingO-Ring
-
23503191329 SpringSpring
-
24503192029 Spring StopperSpring Stopper
-
25503189117 CushionCushion
-
26503189282 BushingBushing
-
27503189271 CushionCushion
