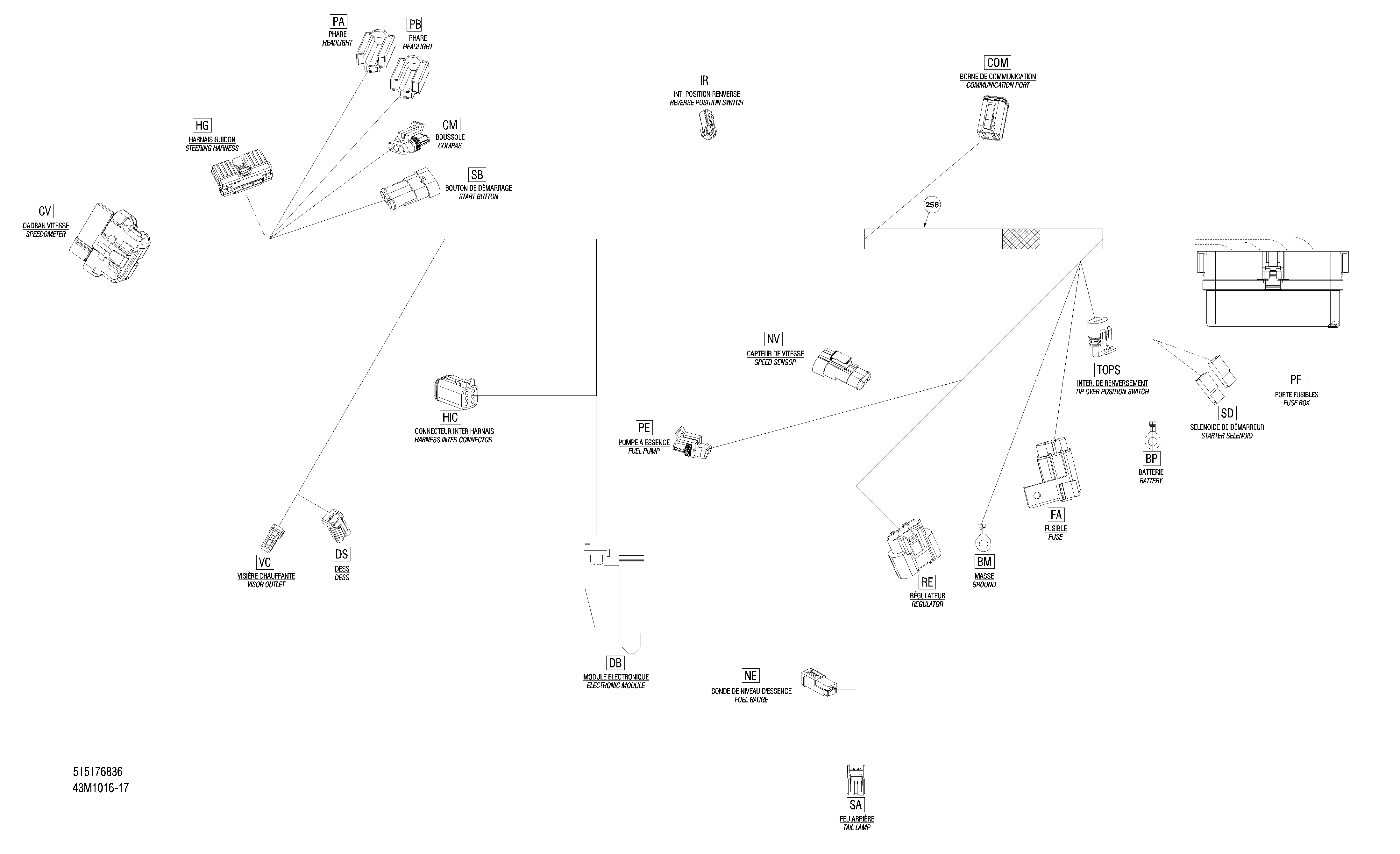

10- Electrical Harness 1200 для BRP Ski-Doo MX Z X 1200 - 2010
-
№АртикулНазвание
-
1515176836 Main Harness. Includes 1 to VCMain Harness. Includes 1 to VC
-
256415080000 Tubing 16 mmTubing 16 mm
-
BM278000992 Open BarrelOpen Barrel
-
BP278000992 Open BarrelOpen Barrel
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM515176621 Wire SealWire Seal
-
CM278002307 Female TerminalFemale Terminal
-
CM293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
COM515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM278000632 Female TerminalFemale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
CV515175803 Wire SealWire Seal
-
CV710001131 Female TerminalFemale Terminal
-
CV515175806 Female TerminalFemale Terminal
-
DB515175885 CoverCover
-
DB278001751 Male Housing, 41 CircuitsMale Housing, 41 Circuits
-
DB515175884 LockLock
-
DB515175883 LatchLatch
-
DB515175886 SealSeal
-
DB278001750 Female TerminalFemale Terminal
-
DB293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DS515175231 Female TerminalFemale Terminal
-
FA409210100 ClipClip
-
FA278001326 Fuse Holder CapFuse Holder Cap
-
FA278000805 CushionCushion
-
FA410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
FA278001325 Fuse HolderFuse Holder
-
FA710000113 Female TerminalFemale Terminal
-
HG515175349 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
HG515175282 Female TerminalFemale Terminal
-
HG515175231 Female TerminalFemale Terminal
-
HIC278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
HIC278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
HIC293000052 Sealing CapSealing Cap
-
HIC278000632 Female TerminalFemale Terminal
-
IR515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
IR515175231 Female TerminalFemale Terminal
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV710000568 HousingHousing
-
NV515176621 Wire SealWire Seal
-
NV515176164 Male TerminalMale Terminal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
PE409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
PE278001013 Wire SealWire Seal
-
PE278001014 Female TerminalFemale Terminal
-
PF710000781 Fuse PullerFuse Puller
-
PF710001026 Fuse CoverFuse Cover
-
PF515176885 Fuse DecalFuse Decal
-
PF278002172 FoamFoam
-
PF710000660 Fuse Box Ass'yFuse Box Ass'y
-
PF710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF515176774 Relay, 30 AMPRelay, 30 AMP
-
PF515176775 Relay, 50 AMPRelay, 50 AMP
-
PF415128501 SealSeal
-
PF278000999 Wire SealWire Seal
-
PF710000836 Female TerminalFemale Terminal
-
PF710000840 CapCap
-
PF710000837 Female TerminalFemale Terminal
-
RE710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RE710000882 CapCap
-
RE710000881 SealSeal
-
RE710000877 TerminalTerminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SB710000568 HousingHousing
-
SB515176621 Wire SealWire Seal
-
SB515176164 Male TerminalMale Terminal
-
SD409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
SD409010100 Female TerminalFemale Terminal
-
TOPS278002064 Connector, 3 CircuitsConnector, 3 Circuits
-
TOPS710001119 Female TerminalFemale Terminal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
VC515175231 Female TerminalFemale Terminal
