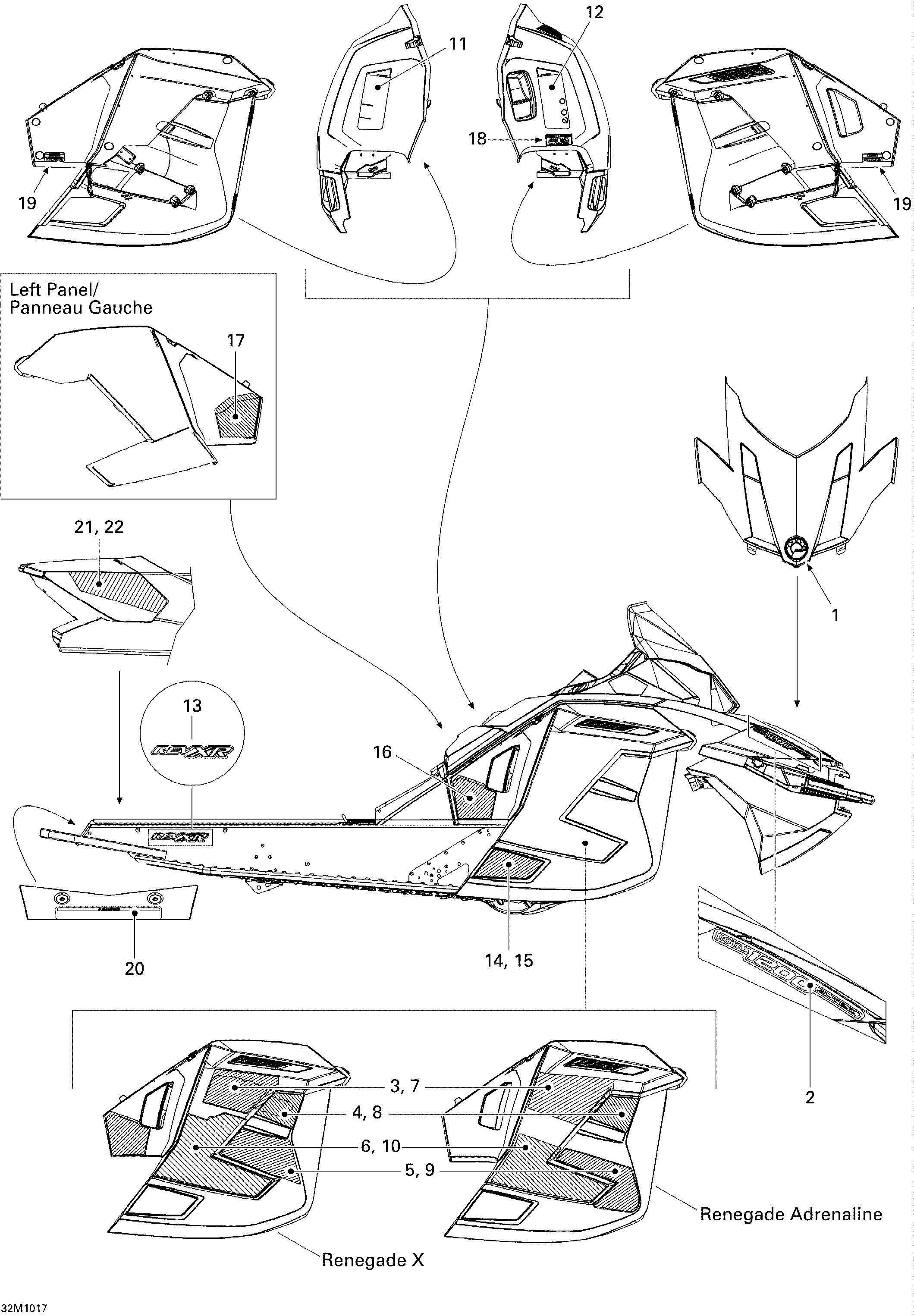

09- Decals X для BRP Ski-Doo Renegade X 1200 - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2516003648 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516004087 RH Rear Upper Side Decal. White-White ModelRH Rear Upper Side Decal. White-White Model
-
3516004093 RH Rear Upper Side Decal. Black-Black ModelRH Rear Upper Side Decal. Black-Black Model
-
4516004063 RH Front Upper Side Decal. White-White ModelRH Front Upper Side Decal. White-White Model
-
4516004117 RH Front Upper Side Decal. Black-Black ModelRH Front Upper Side Decal. Black-Black Model
-
5516004061 RH Front Side Decal. White-White ModelRH Front Side Decal. White-White Model
-
5516004091 RH Front Side Decal. Black-Black ModelRH Front Side Decal. Black-Black Model
-
6516004075 RH Side Decal. White-White ModelRH Side Decal. White-White Model
-
6516004089 RH Side Decal. Black-Black ModelRH Side Decal. Black-Black Model
-
7516004086 LH Front Upper Side Decal. White-White ModelLH Front Upper Side Decal. White-White Model
-
7516004092 LH Front Upper Side Decal. Black-Black ModelLH Front Upper Side Decal. Black-Black Model
-
8516004062 LH Front Upper Side Decal. White-White ModelLH Front Upper Side Decal. White-White Model
-
8516004116 LH Front Upper Side Decal. Black-Black ModelLH Front Upper Side Decal. Black-Black Model
-
9516004060 LH Front Side Decal. White-White ModelLH Front Side Decal. White-White Model
-
9516004090 LH Front Side Decal. Black-Black ModelLH Front Side Decal. Black-Black Model
-
10516004074 LH Side Decal. White-White ModelLH Side Decal. White-White Model
-
10516004088 LH Side Decal. Black-Black ModelLH Side Decal. Black-Black Model
-
11516003788 Warning Decal, SecurityWarning Decal, Security
-
12516003790 Warning Decal, SecurityWarning Decal, Security
-
13516003783 Decal REV XR. Black-Black ModelDecal REV XR. Black-Black Model
-
13516004207 Decal REV XR. White-White ModelDecal REV XR. White-White Model
-
14516004083 RH Lower Decal. White-White ModelRH Lower Decal. White-White Model
-
15516004082 LH Lower Decal. White-White ModelLH Lower Decal. White-White Model
-
18516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
19516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
20516003578 Warning Decal, TrackWarning Decal, Track
