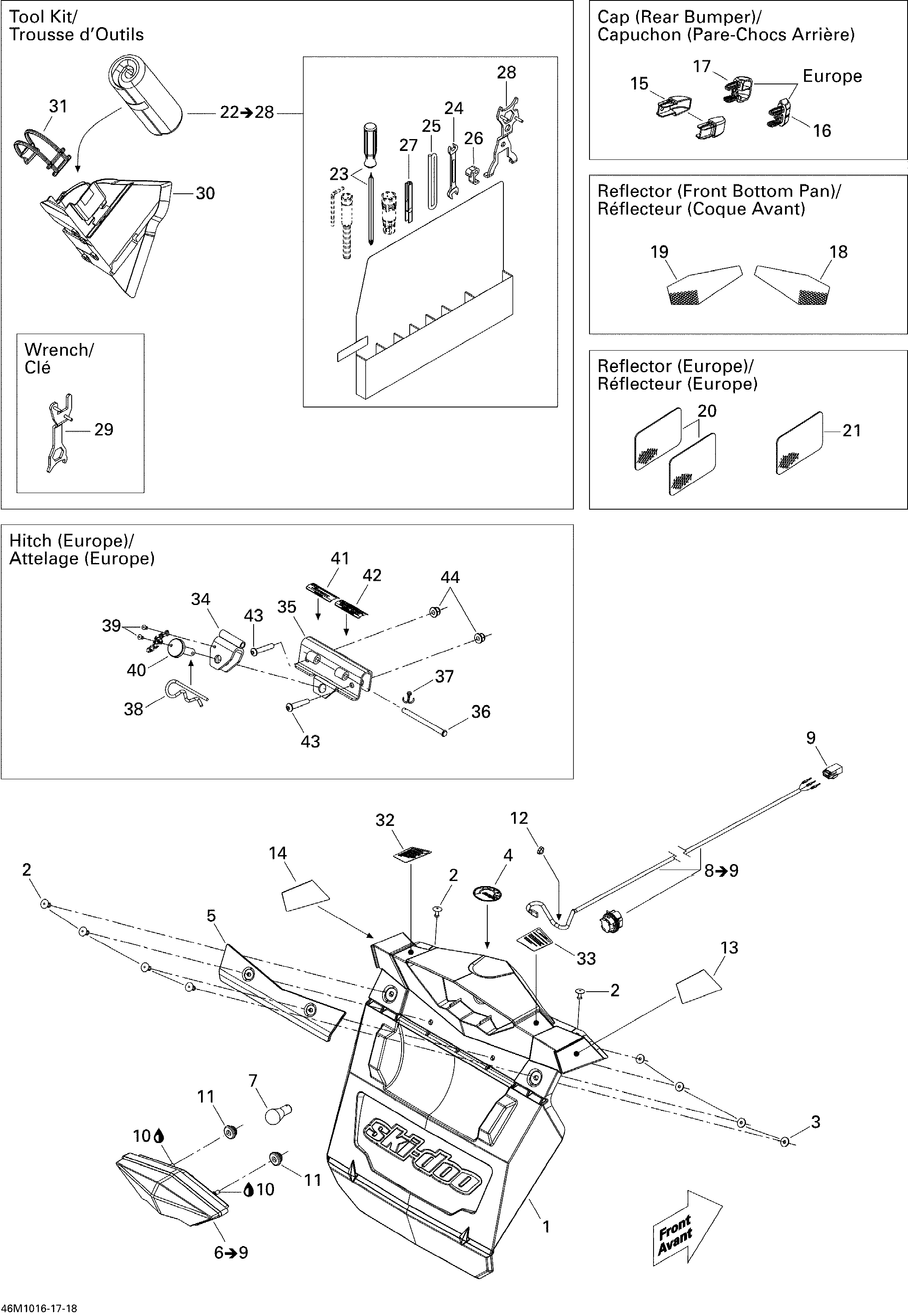

09- Utilities X для BRP Ski-Doo Renegade X 1200 - 2010
-
№АртикулНазвание
-
1520000702 Snow Guard. Black-Black ModelSnow Guard. Black-Black Model
-
1520000704 Snow Guard. White-White ModelSnow Guard. White-White Model
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219902544 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000679 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7520000758 BulbBulb
-
8520000680 Wiring Harness. Includes 8 to 9Wiring Harness. Includes 8 to 9
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11705003666 Rubber GrommetRubber Grommet
-
12293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
13520000706 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
13520000716 RH Rear ReflectorRH Rear Reflector
-
14520000707 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
14520000717 LH Rear ReflectorLH Rear Reflector
-
15520000840 Cap. Black-Black ModelCap. Black-Black Model
-
15520000567 Cap. White-White ModelCap. White-White Model
-
16520000965 RH Cap. EuropeRH Cap. Europe
-
17520000964 LH Cap. EuropeLH Cap. Europe
-
18520000759 RH Front ReflectorRH Front Reflector
-
19520000760 LH Front ReflectorLH Front Reflector
-
20520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
21415037900 Reflector, White. EuropeReflector, White. Europe
-
22529000050 Tool Kit. Includes 22 to 28Tool Kit. Includes 22 to 28
-
23529000004 Screw DriverScrew Driver
-
24529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
25412500200 Starter Rope, MeterStarter Rope, Meter
-
26529019400 Starter GripStarter Grip
-
27529035501 Spacing ToolSpacing Tool
-
28520000956 Wrench SuspensionWrench Suspension
-
29520000721 WrenchWrench
-
30520000720 Tool Kit RackTool Kit Rack
-
31520000528 LatchLatch
-
32520000695 Warning Decal, SecurityWarning Decal, Security
-
33520000697 Warning Decal, LoadWarning Decal, Load
-
34511000554 Support. EuropeSupport. Europe
-
35511000588 Hitch Plate. EuropeHitch Plate. Europe
-
36511000520 Clevis Pin. EuropeClevis Pin. Europe
-
37371800200 Cotter Pin. EuropeCotter Pin. Europe
-
38114045200 Hair Pin. EuropeHair Pin. Europe
-
39390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
40511000555 Pin. EuropePin. Europe
-
41516003037 Warning Decal-Security-English. EuropeWarning Decal-Security-English. Europe
-
42516003038 Warning Decal-Security-French. EuropeWarning Decal-Security-French. Europe
-
43205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
44233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
