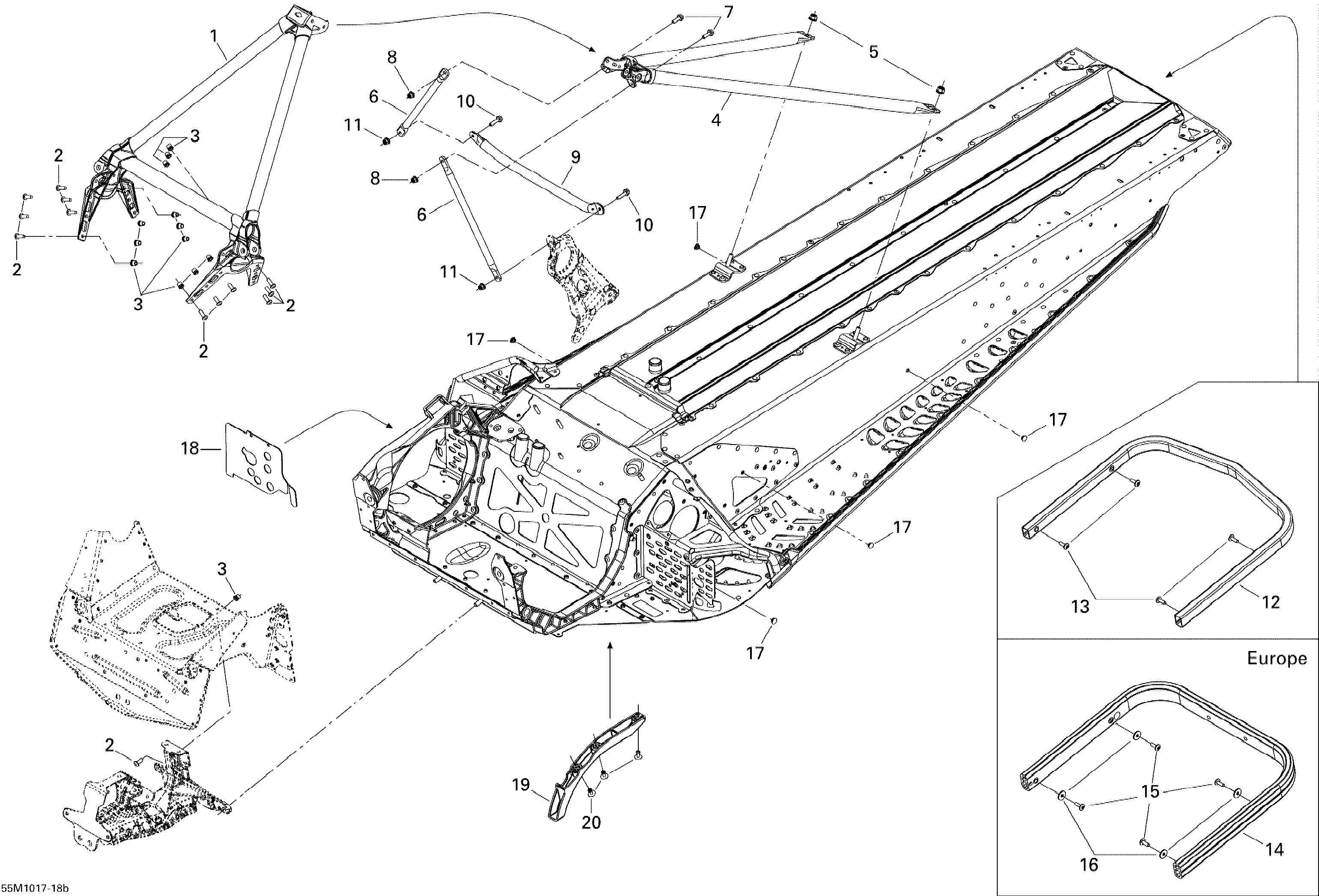

09- Frame and Components X для BRP Ski-Doo Renegade X 1200 - 2010
-
№АртикулНазвание
-
1518325929 Front MemberFront Member
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4518325927 Rear MemberRear Member
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6518325114 Upper Column SupportUpper Column Support
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9518325360 Center Column SupportCenter Column Support
-
10207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12518324980 Rear Bumper. White-White ModelRear Bumper. White-White Model
-
12518325481 Rear Bumper. Black-Black ModelRear Bumper. Black-Black Model
-
13250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
14518326414 Rear Bumper. EuropeRear Bumper. Europe
-
15250000402 Torx-Truss Screw M6 X 18. EuropeTorx-Truss Screw M6 X 18. Europe
-
16224061201 Flat Washer. EuropeFlat Washer. Europe
-
17293730041 Dart 8 mm, Full Moon. White-White ModelDart 8 mm, Full Moon. White-White Model
-
17293730047 Dart 8 mm, Black. Black-Black ModelDart 8 mm, Black. Black-Black Model
-
18518325418 Heat ShieldHeat Shield
-
19518324985 Front ProtectorFront Protector
-
20293150108 Pop Rivet 3/16''Pop Rivet 3/16''
