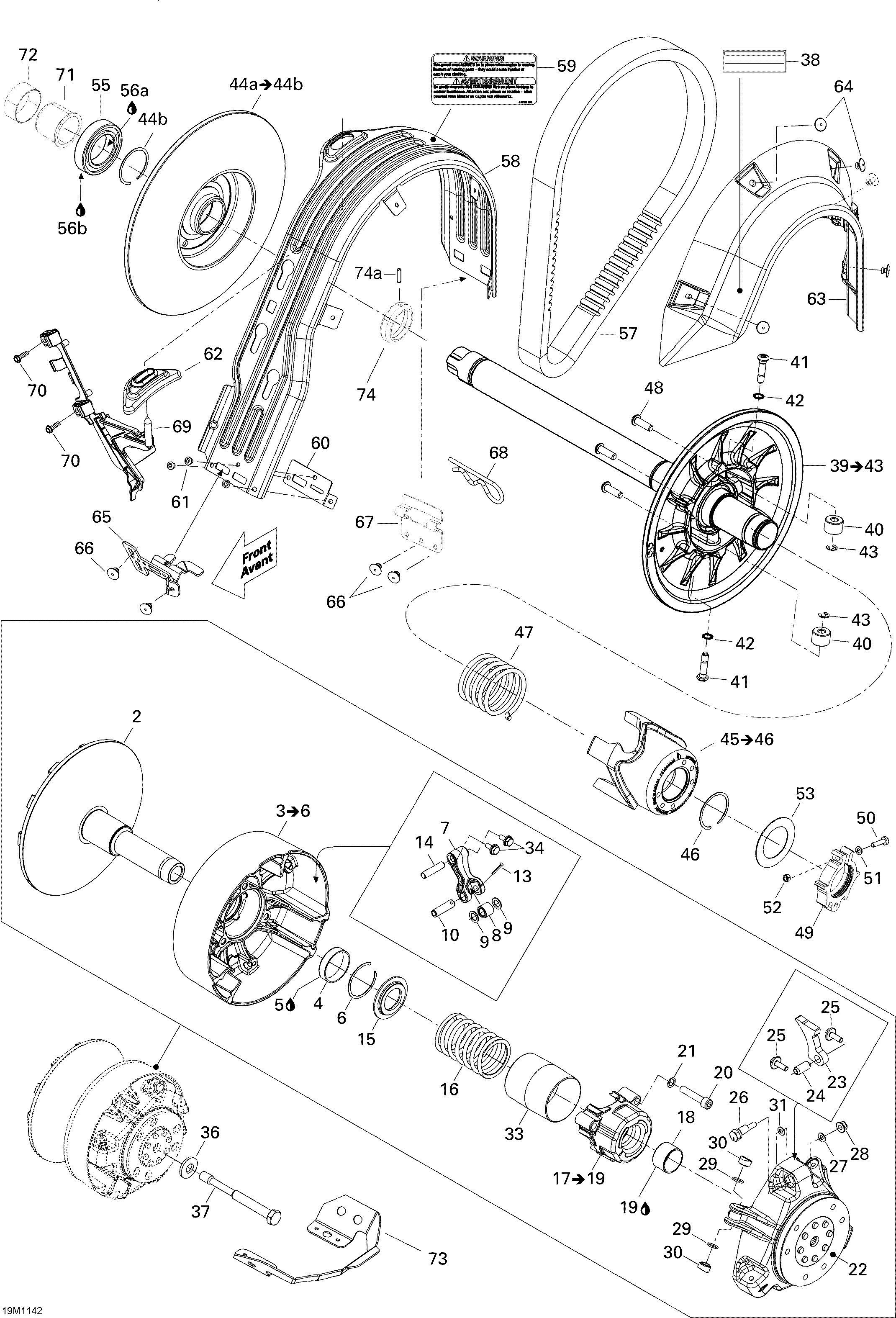

05- Pulley System для BRP Ski-Doo Expedition SE 1200 XU - 2011
-
№АртикулНазвание
-
2417222980 Fixed FlangeFixed Flange
-
3417223093 Sliding Flanged Ass'ySliding Flanged Ass'y
-
4417223086 CushionCushion
-
5293800118 Loctite 680, 50 mlLoctite 680, 50 ml
-
5293800041 Loctite, Primer N, 128 GLoctite, Primer N, 128 G
-
6293370037 CirclipCirclip
-
7417222671 LeverLever
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417222594 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417223164 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16415015200 Spring (Red/Orange)Spring (Red/Orange)
-
17417222759 Spring Cover Ass'ySpring Cover Ass'y
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222923 Governor Cup Ass.Governor Cup Ass.
-
23417223088 Ramp 617Ramp 617
-
24250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
25250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
26417223197 Calibration ScrewCalibration Screw
-
27234061410 Flat Washer 6 mmFlat Washer 6 mm
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29732401030 O-RingO-Ring
-
30417223021 Slider ShoeSlider Shoe
-
31417005600 WasherWasher
-
33417009205 GuardGuard
-
34250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
36250200006 Spring Washer 14 mmSpring Washer 14 mm
-
37417300285 Drive Pulley BoltDrive Pulley Bolt
-
38516004303 DecalDecal
-
39417127199 Fixed Flange Ass'y. Includes 38 to 43Fixed Flange Ass'y. Includes 38 to 43
-
40417127189 RollerRoller
-
41417127252 StudStud
-
42250200009 Lock Washer 8 mmLock Washer 8 mm
-
43414753500 CirclipCirclip
-
44a417126955 Sliding Flange Ass'y. Includes 44 to 45Sliding Flange Ass'y. Includes 44 to 45
-
44b293370049 CirclipCirclip
-
45417127206 Cam Ass'y. Includes 46 to 47Cam Ass'y. Includes 46 to 47
-
46293370049 CirclipCirclip
-
47417127151 SpringSpring
-
48250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
49417127248 Adjustment Pulley Ass'yAdjustment Pulley Ass'y
-
50205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
51234051410 Flat Washer M5Flat Washer M5
-
52232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
53417127155 WasherWasher
-
55504152574 Ball BearingBall Bearing
-
56a413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
56b293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
57417300377 BeltBelt
-
58417300382 Belt GuardBelt Guard
-
59516004649 Security label, Belt GuardSecurity label, Belt Guard
-
60417300380 ReinforcementReinforcement
-
61390909200 Avex RivetAvex Rivet
-
62417300381 GuideGuide
-
63417300356 Side ProtectorSide Protector
-
64293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
65417300363 Belt Guard BracketBelt Guard Bracket
-
66293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
67417300373 Belt Guard BracketBelt Guard Bracket
-
68114045200 Hair PinHair Pin
-
69417300396 Belt Guard BracketBelt Guard Bracket
-
70241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
71504153054 Protective RubberProtective Rubber
-
72504153034 Protective RingProtective Ring
-
73518326566 Pulley Cover PlatePulley Cover Plate
-
74417300401 Bearing RetainerBearing Retainer
-
74A417127203 Set ScrewSet Screw
