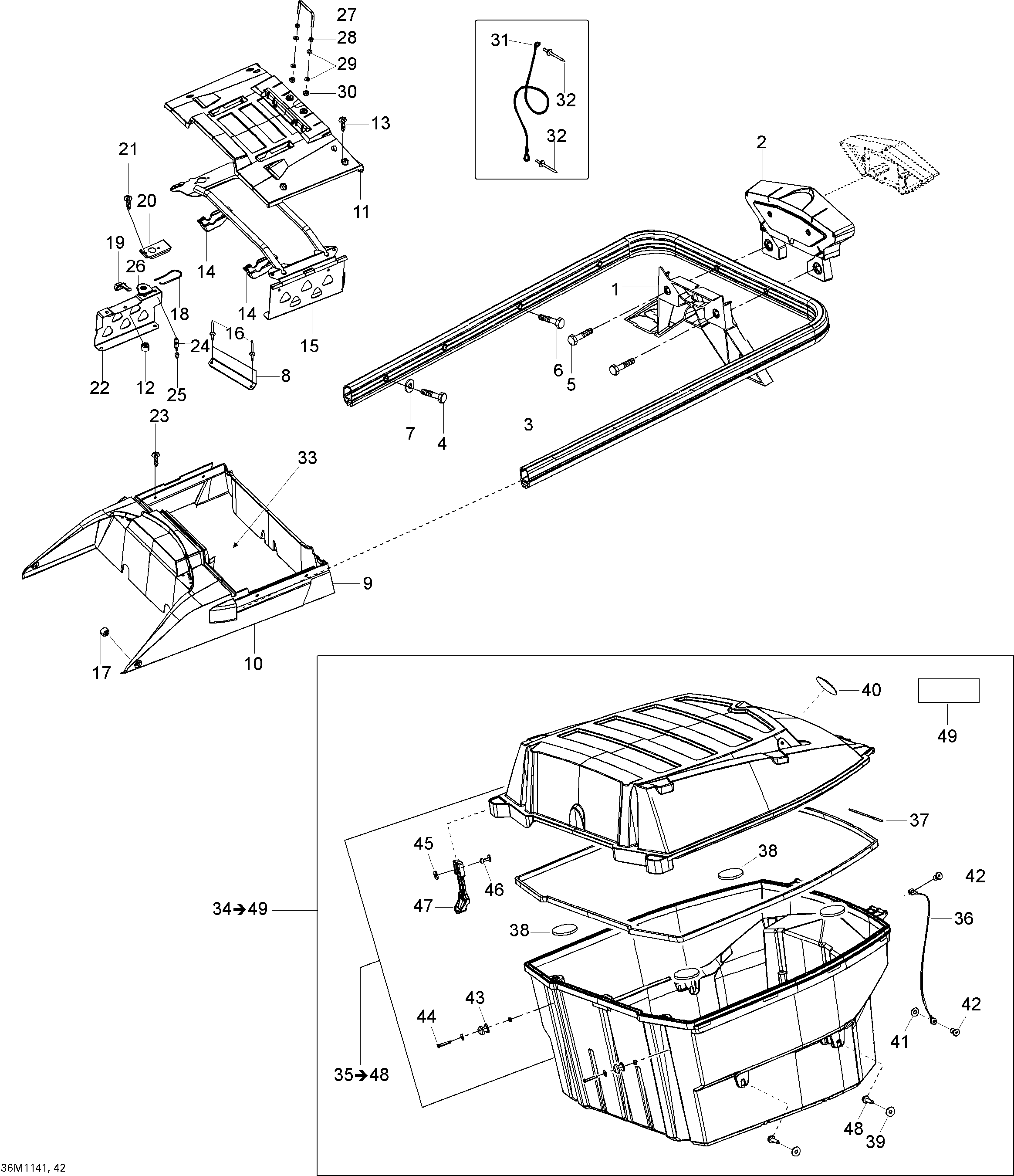

09- Luggage Rack для BRP Ski-Doo Expedition SE 1200 XU - 2011
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000764 Rear Light CoverRear Light Cover
-
3511000563 Rear BumperRear Bumper
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5207663534 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
6205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
7234062430 Flat Washer M6Flat Washer M6
-
8510005156 Cable Support PlateCable Support Plate
-
9510004873 Storage Box Ass'yStorage Box Ass'y
-
10510004874 Storage Box XUStorage Box XU
-
11510004875 Storage Box Cover XUStorage Box Cover XU
-
12510005147 BushingBushing
-
13250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
14510004999 CoverCover
-
15510004951 Fastening Tube PaintFastening Tube Paint
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17510005147 BushingBushing
-
18269700109 Latch Ass'yLatch Ass'y
-
19510005072 PullerPuller
-
20510005112 Lock Pin CoverLock Pin Cover
-
21732600030 ScrewScrew
-
22510004998 Locking Plate (Frame)Locking Plate (Frame)
-
23207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
24605452035 Lock PinLock Pin
-
25233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26510005044 Lock Pin GuideLock Pin Guide
-
27510004876 Fastener PinFastener Pin
-
28250000135 Hex. Nut M6Hex. Nut M6
-
29M20117 WasherWasher
-
30232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
31M546777 Retainer CableRetainer Cable
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33510005043 FoamFoam
-
34860200395 Cargo Box Ass'y. Includes 34 to 49Cargo Box Ass'y. Includes 34 to 49
-
36M546777 Retainer CableRetainer Cable
-
37511000702 PinPin
-
38510005273 FoamFoam
-
39234062410 Flat Washer 6 mmFlat Washer 6 mm
-
40219902544 BRP Logo, 48 mmBRP Logo, 48 mm
-
41250200025 Washer M5Washer M5
-
42M36036 Rivet-BlackRivet-Black
-
43605449087 Counter RollerCounter Roller
-
44M40168 ScrewScrew
-
45M20037 WasherWasher
-
46M36037 RivetRivet
-
47517304572 Latch-PanelLatch-Panel
-
48207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
