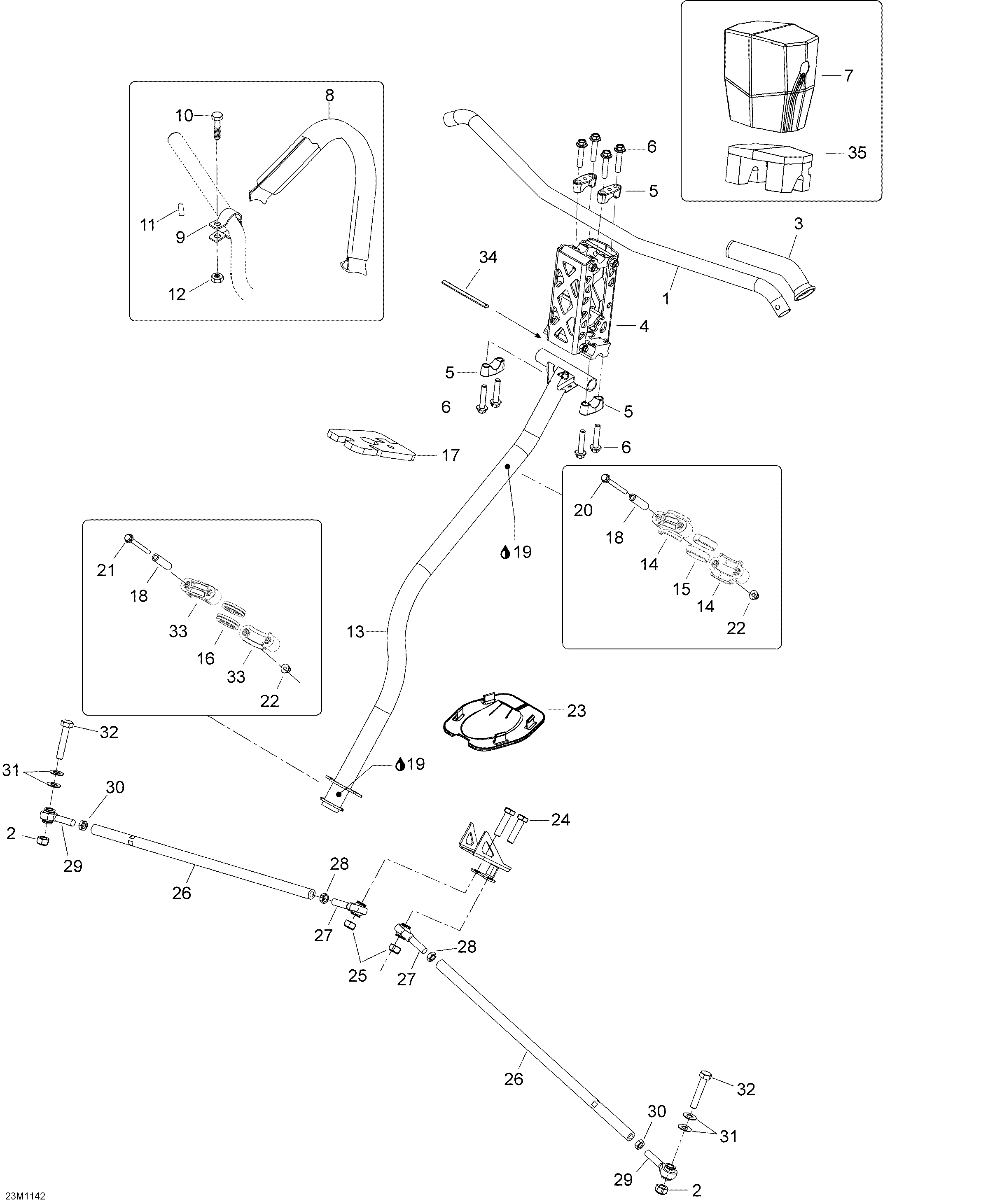

07- Steering для BRP Ski-Doo Expedition SE 1200 XU - 2011
-
№АртикулНазвание
-
1506152399 Hanlde BarHanlde Bar
-
2232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
3506151530 RH Grip 6-1/2''RH Grip 6-1/2''
-
4506152176 Adjustable handleAdjustable handle
-
5506152395 Steering SupportSteering Support
-
6250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
7506152381 Steering CoverSteering Cover
-
8506152115 Strap Ass'yStrap Ass'y
-
9506151792 Support Plate, BlackSupport Plate, Black
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11506152156 BushingBushing
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
13506152469 Main TubeMain Tube
-
14506152508 Upper Half-HousingUpper Half-Housing
-
15506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
16506152518 Lower Vibration RingLower Vibration Ring
-
17506152404 CushionCushion
-
18506152297 Housing BushingHousing Bushing
-
19293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
20207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
21207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23506152163 PlatePlate
-
24207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152498 Tie-RodTie-Rod
-
27506152081 LH Thread Ball JointLH Thread Ball Joint
-
28250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
29506152019 RH Thread Ball JointRH Thread Ball Joint
-
30732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
31506152194 WasherWasher
-
32207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
33506152217 Lower Half-HousingLower Half-Housing
-
34506152415 Limiter PlateLimiter Plate
-
35506152400 FoamFoam
