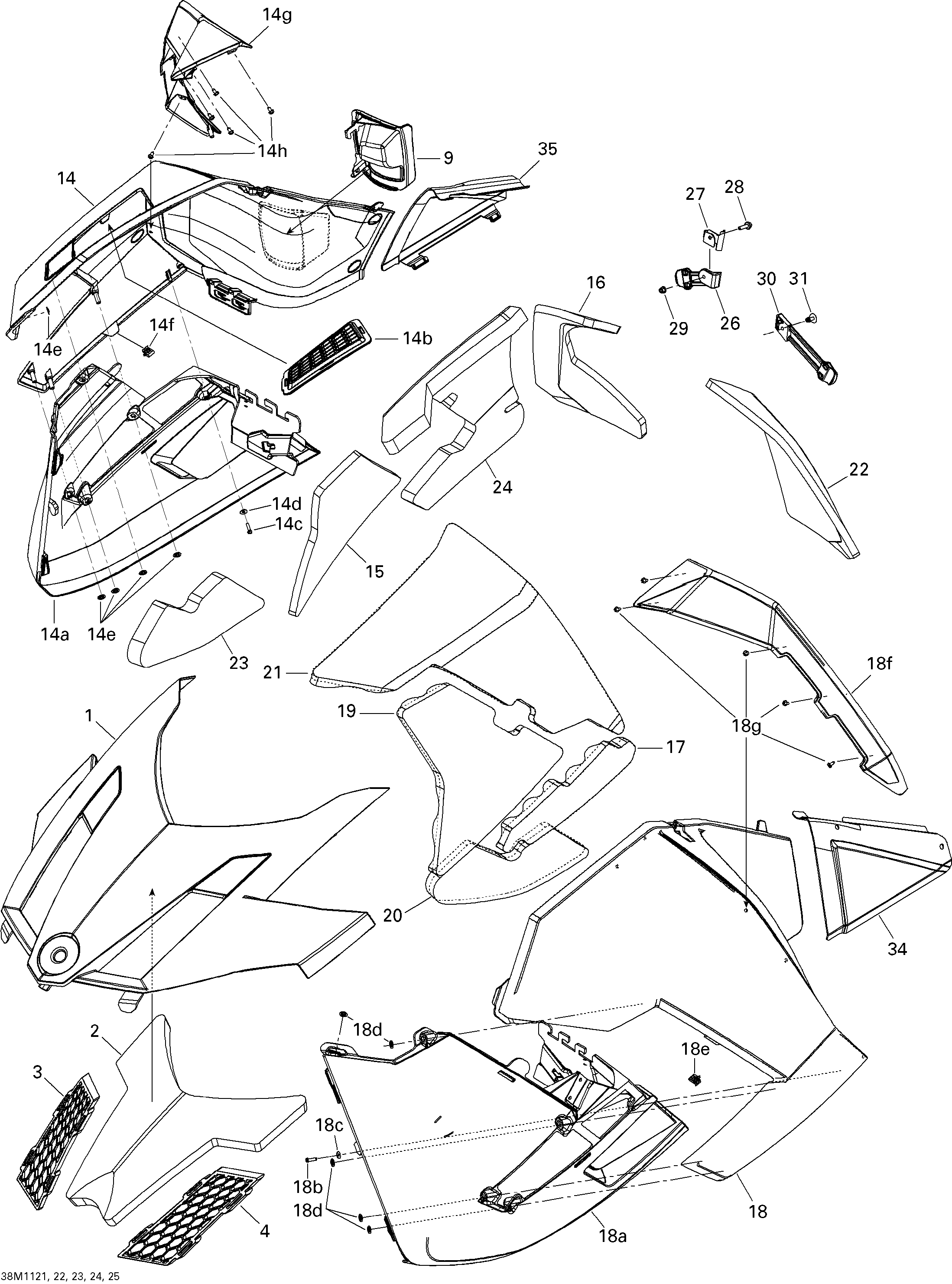

09- Hood для BRP Ski-Doo MXZ X & TNT 1200 XR - 2011
-
№АртикулНазвание
-
1517303739 Hood, BlackHood, Black
-
1517304374 Hood, Bright WhiteHood, Bright White
-
2517304892 Hood FoamHood Foam
-
3517303805 RH Hood GrillRH Hood Grill
-
4517303804 LH Hood GrillLH Hood Grill
-
9517304500 RH ConsoleRH Console
-
14517303748 Black RH PanelBlack RH Panel
-
14517304366 RH Pannel, Bright WhiteRH Pannel, Bright White
-
14a517304373 RH Pannel MouldingRH Pannel Moulding
-
14b517303801 Pannel GrillPannel Grill
-
14c241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
14d234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
14e732610072 Push NutPush Nut
-
14f517302785 ClipClip
-
15517304894 Central Foam Panel RHCentral Foam Panel RH
-
16517304895 Rear Panel Foam RHRear Panel Foam RH
-
17517304896 Central Foam Panel LHCentral Foam Panel LH
-
18517303753 LH Pannel, BlackLH Pannel, Black
-
18517304355 LH Pannel, Bright WhiteLH Pannel, Bright White
-
18a517304362 LH Pannel MouldingLH Pannel Moulding
-
18b241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
18c234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
18d732610072 Push NutPush Nut
-
18e517302785 ClipClip
-
19517304898 LH Central Panel FoamLH Central Panel Foam
-
20517304900 LH Lower Panel FoamLH Lower Panel Foam
-
21517304903 LH Upper Panel FoamLH Upper Panel Foam
-
22517304904 LH Rear Panel FoamLH Rear Panel Foam
-
23517304906 RH Lower Panel FoamRH Lower Panel Foam
-
24517304907 RH Upper Panel FoamRH Upper Panel Foam
-
26517303612 Panel LatchPanel Latch
-
27517304221 Latch SupportLatch Support
-
28207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
29233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
30517303808 Panel LatchPanel Latch
-
31293150108 Pop Rivet 3/16''Pop Rivet 3/16''
