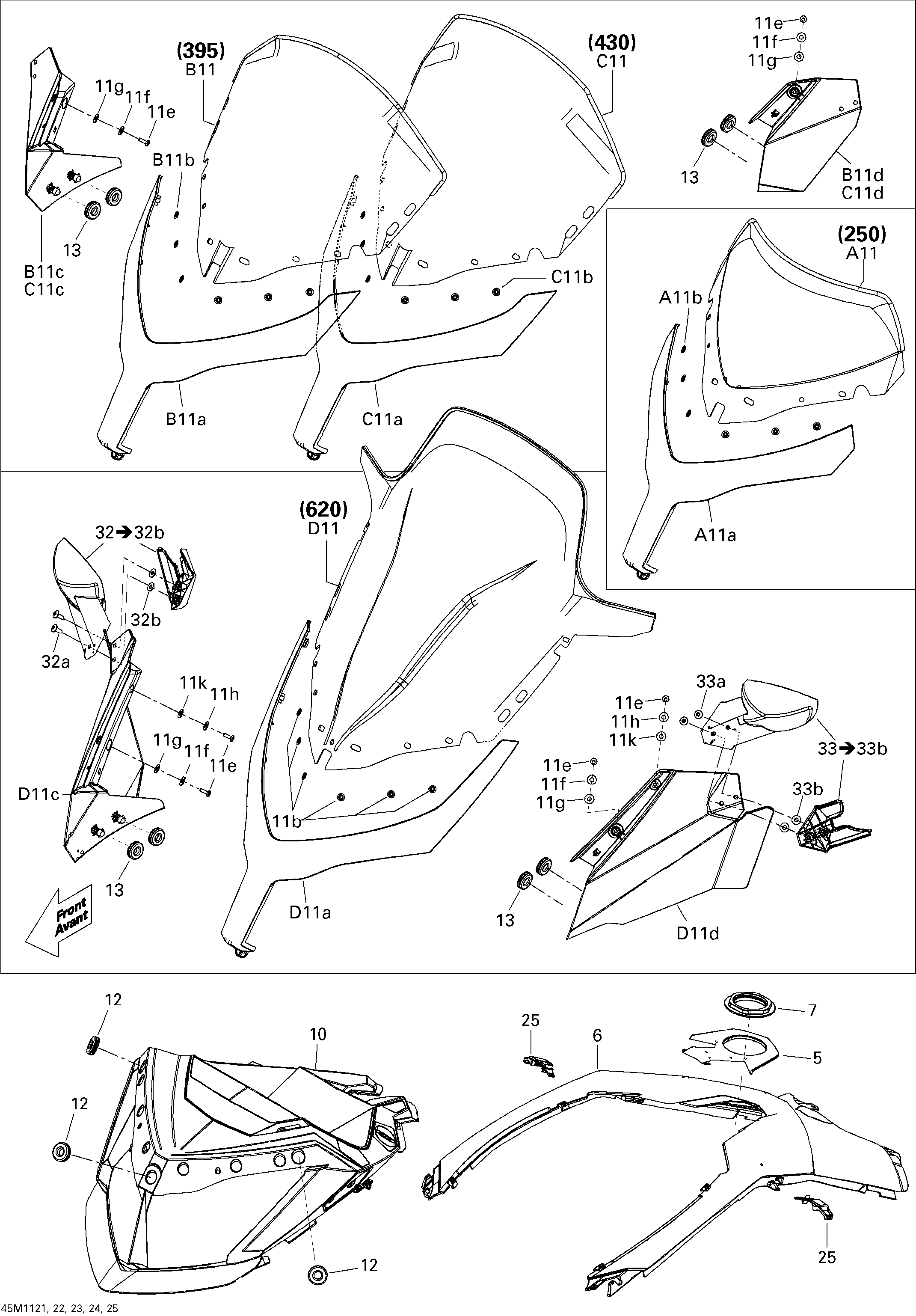

09- Windshield And Console для BRP Ski-Doo MXZ X & TNT 1200 XR - 2011
-
№АртикулНазвание
-
5517304027 Cap ConsoleCap Console
-
6517303741 Console, BlackConsole, Black
-
6517304381 Console, Bright WhiteConsole, Bright White
-
7517304518 Console NutConsole Nut
-
10517303742 Indicator Support. XIndicator Support. X
-
10517303972 Indicator Support. TNTIndicator Support. TNT
-
A11517303888 Low Windshield (250). XLow Windshield (250). X
-
A11a517303959 Low Windshield Support. XLow Windshield Support. X
-
A11b732610072 Push Nut. XPush Nut. X
-
B11517303887 Medium Windshield (395). TNTMedium Windshield (395). TNT
-
B11a517303798 Medium Windshield Support. TNTMedium Windshield Support. TNT
-
B11b732610072 Push Nut. TNTPush Nut. TNT
-
B11c517304024 RH Console Air Deflector. TNTRH Console Air Deflector. TNT
-
B11d517304025 LH Console Air Deflector. TNTLH Console Air Deflector. TNT
-
11e250000146 Truss Head Torx Screw K50 X 16. TNTTruss Head Torx Screw K50 X 16. TNT
-
11f250200025 Washer M5. TNTWasher M5. TNT
-
11g250200024 Rubber Washer 5 mm. TNTRubber Washer 5 mm. TNT
-
12517303756 Grommet. XGrommet. X
-
13517303756 Grommet. TNTGrommet. TNT
-
25517303973 Panel LatchPanel Latch
