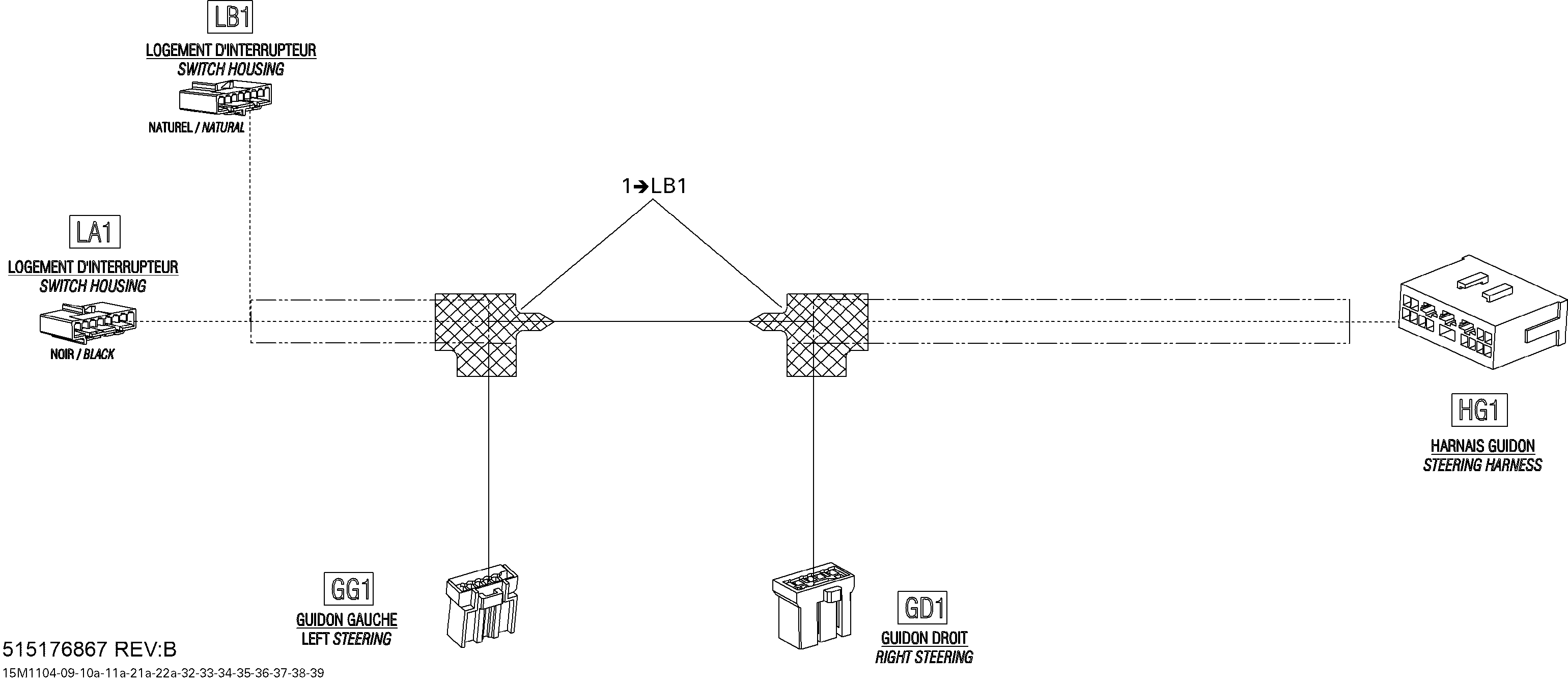

10- Steering Wiring Harness , TNT для BRP Ski-Doo MXZ X & TNT 1200 XR - 2011
-
№АртикулНазвание
-
1515176867 Wiring Harness Ass'y. Includes 1 to LB1Wiring Harness Ass'y. Includes 1 to LB1
-
GD1515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
GD1515175231 Female TerminalFemale Terminal
-
GG1515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
GG1515175231 Female TerminalFemale Terminal
-
HG1515175351 Male Terminal Housing, 15 CircuitsMale Terminal Housing, 15 Circuits
-
HG1515175273 Male TerminalMale Terminal
-
HG1515175232 Male TerminalMale Terminal
-
LA1515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
LA1515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
LA1515175808 Female TerminalFemale Terminal
-
LA1515175941 Female TerminalFemale Terminal
-
LB1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
LB1515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
LB1515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
LB1515175808 Female TerminalFemale Terminal
-
LB1515175941 Female TerminalFemale Terminal
