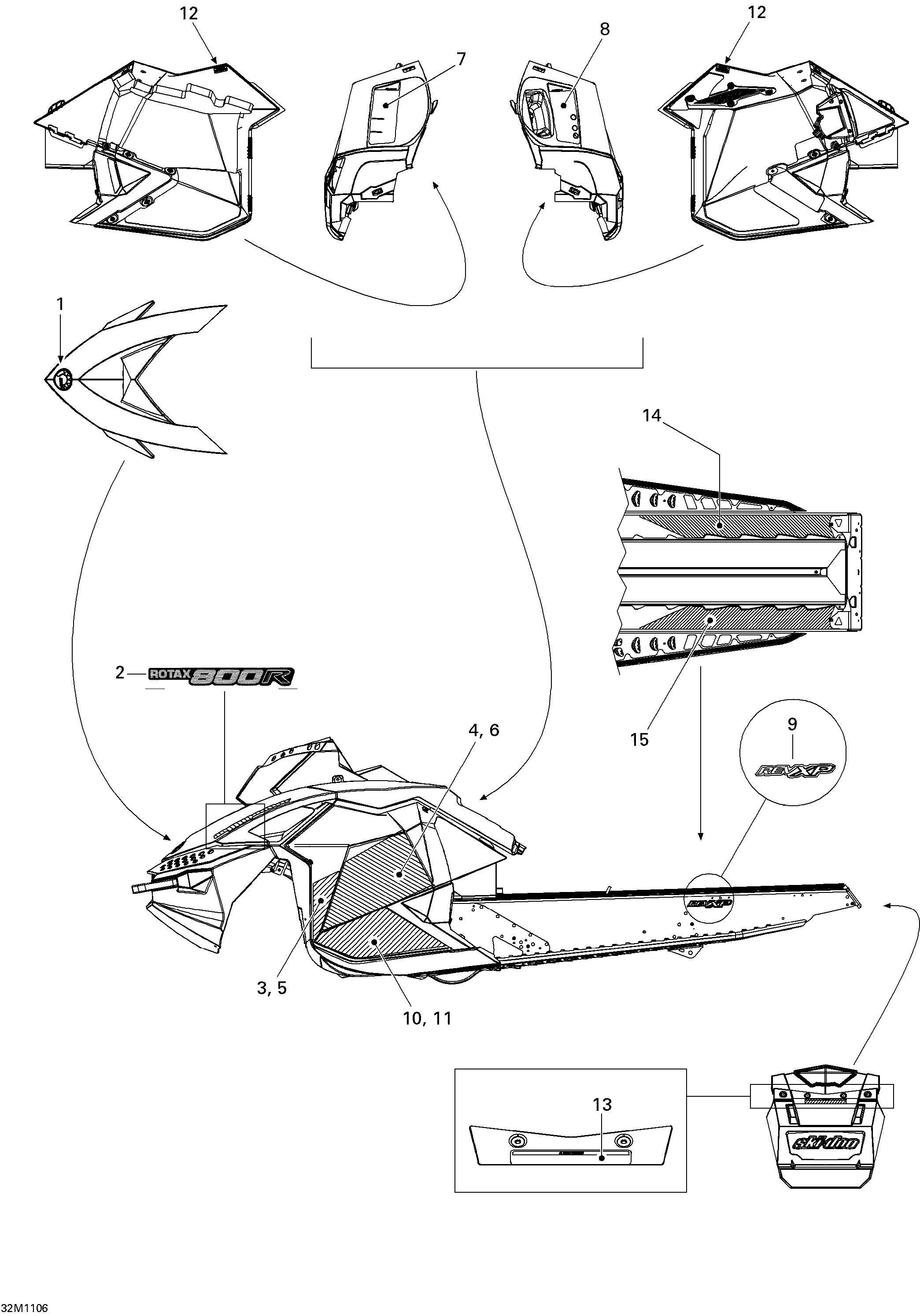

09- Decals для BRP Ski-Doo Renegade SP 800R PTEK - 2011
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2516004384 Hood Decal, Rotax 800RHood Decal, Rotax 800R
-
3516004680 RH Front Side DecalRH Front Side Decal
-
4516004703 RH Side DecalRH Side Decal
-
5516004679 LH Front Side DecalLH Front Side Decal
-
6516004702 LH Side DecalLH Side Decal
-
7516004561 Warning Decal, SecurityWarning Decal, Security
-
8516004589 Warning Decal, SecurityWarning Decal, Security
-
9516004205 Decal REV XPDecal REV XP
-
10516004316 RH Lower DecalRH Lower Decal
-
11516004315 LH Lower DecalLH Lower Decal
-
12516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
13516004440 Warning Decal, TrackWarning Decal, Track
-
14516003860 RH Frame DecalRH Frame Decal
-
15516003859 LH Frame DecalLH Frame Decal
