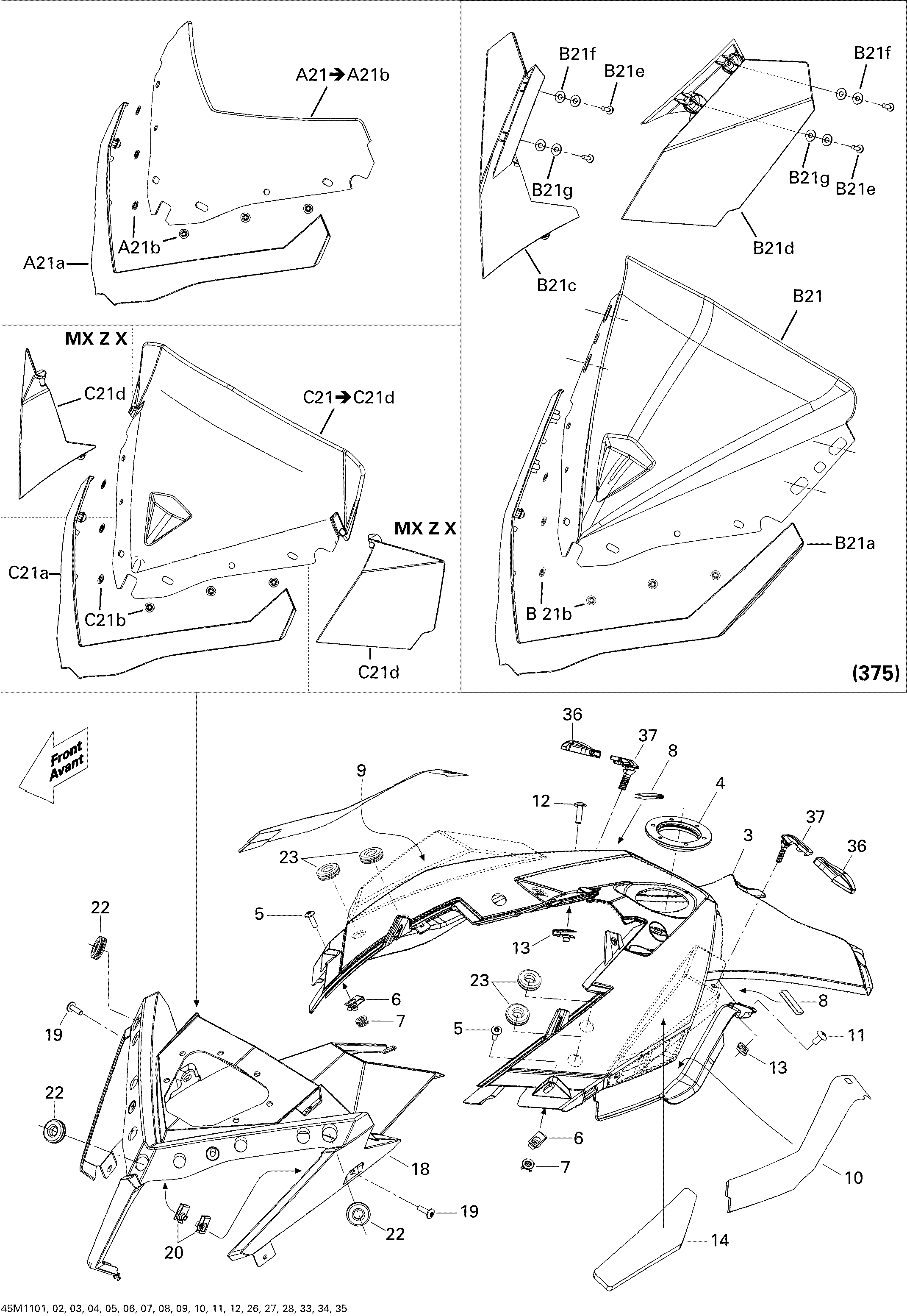

09- Windshield And Console для BRP Ski-Doo Renegade SP 800R PTEK - 2011
-
№АртикулНазвание
-
3517304635 ConsoleConsole
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
8517304105 Console DecalConsole Decal
-
9517304103 RH DecalRH Decal
-
10517304104 LH DecalLH Decal
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18517304575 Gauge SupportGauge Support
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
A21517304390 Windshield Ass'yWindshield Ass'y
-
A21a517303757 Windshield SupportWindshield Support
-
A21b732610072 Push NutPush Nut
-
22517303756 GrommetGrommet
-
23517303756 GrommetGrommet
-
36860200239 Black Latch KitBlack Latch Kit
-
37517303981 Panel LatchPanel Latch
