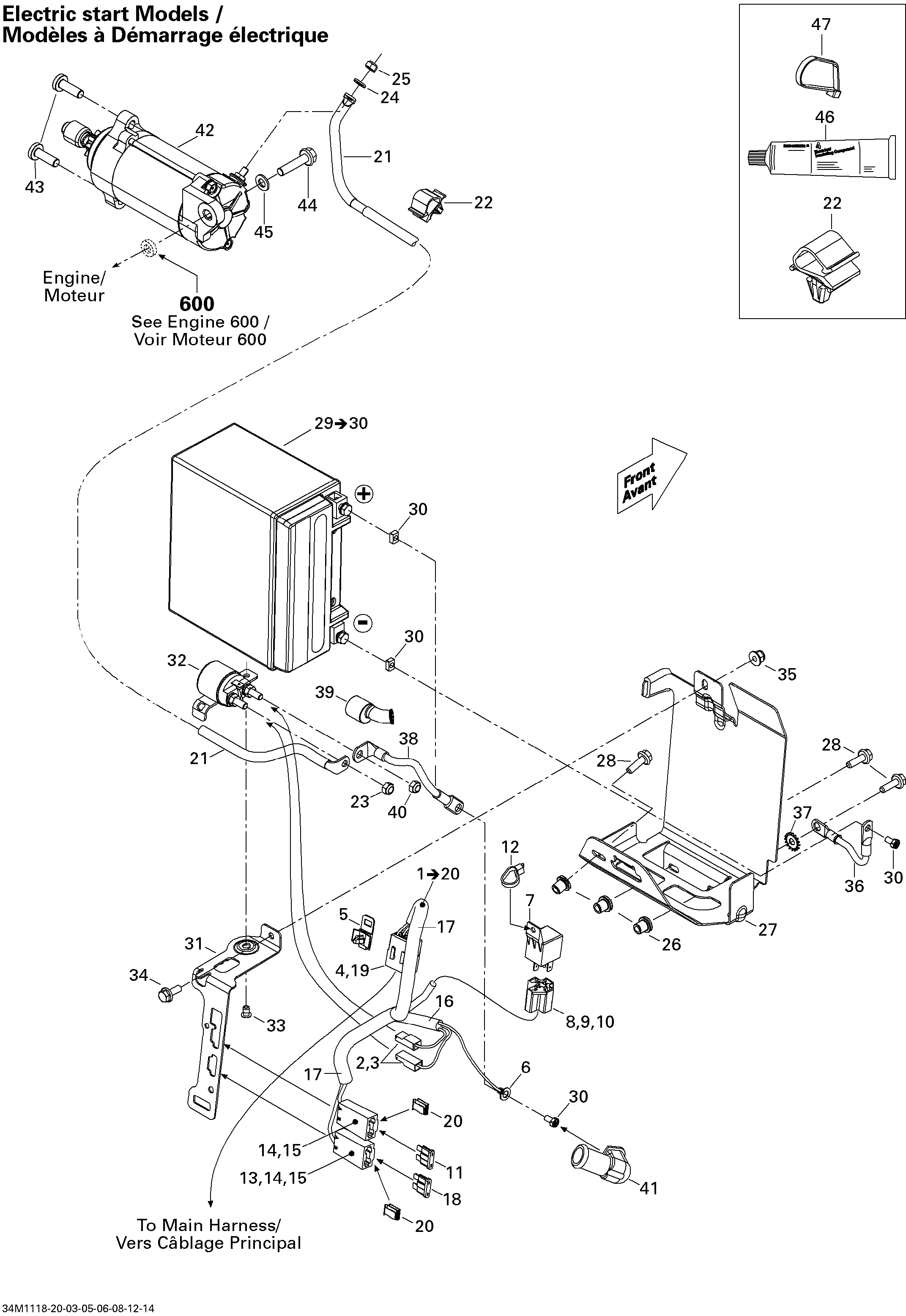

10- Battery And Starter для BRP Ski-Doo Renegade SP 800R PTEK - 2011
-
№АртикулНазвание
-
1515176773 Battery Harness. Includes 1 to 20Battery Harness. Includes 1 to 20
-
2409010100 Female TerminalFemale Terminal
-
3409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
4515175232 Male TerminalMale Terminal
-
5515175283 Housing SupportHousing Support
-
6278000992 Open BarrelOpen Barrel
-
7410113200 RelayRelay
-
8409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
9561503100 Female TerminalFemale Terminal
-
10561503100 Female TerminalFemale Terminal
-
11410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
12293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
13409011600 Female TerminalFemale Terminal
-
14409004200 Female TerminalFemale Terminal
-
15409004000 Fuse HolderFuse Holder
-
16515175442 Tubing 6 mmTubing 6 mm
-
17409901700 Tubing 9 mmTubing 9 mm
-
18278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
19515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
20710000992 ClipClip
-
21515176785 Battery WireBattery Wire
-
22515176795 ClipClip
-
23232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
24234061410 Flat Washer 6 mmFlat Washer 6 mm
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26415107300 InsertInsert
-
27515176886 Battery Support Ass'yBattery Support Ass'y
-
28207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
29410301203 Battery, 18 Amperes. Includes 29 to 30Battery, 18 Amperes. Includes 29 to 30
-
30295500849 Battery Fastener KitBattery Fastener Kit
-
31515177008 Battery StripBattery Strip
-
32515176501 Starter RelayStarter Relay
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36515176358 Ground WireGround Wire
-
37250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
38515176556 Battery WireBattery Wire
-
39515175919 Protector CapProtector Cap
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
41710000495 Protector CapProtector Cap
-
42515176858 Starter Ass'yStarter Ass'y
-
43250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
44207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
45250200008 Flat Washer 8 mmFlat Washer 8 mm
-
46293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
47293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
47293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
47293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
47293750008 Tie-Rap 350 mmTie-Rap 350 mm
