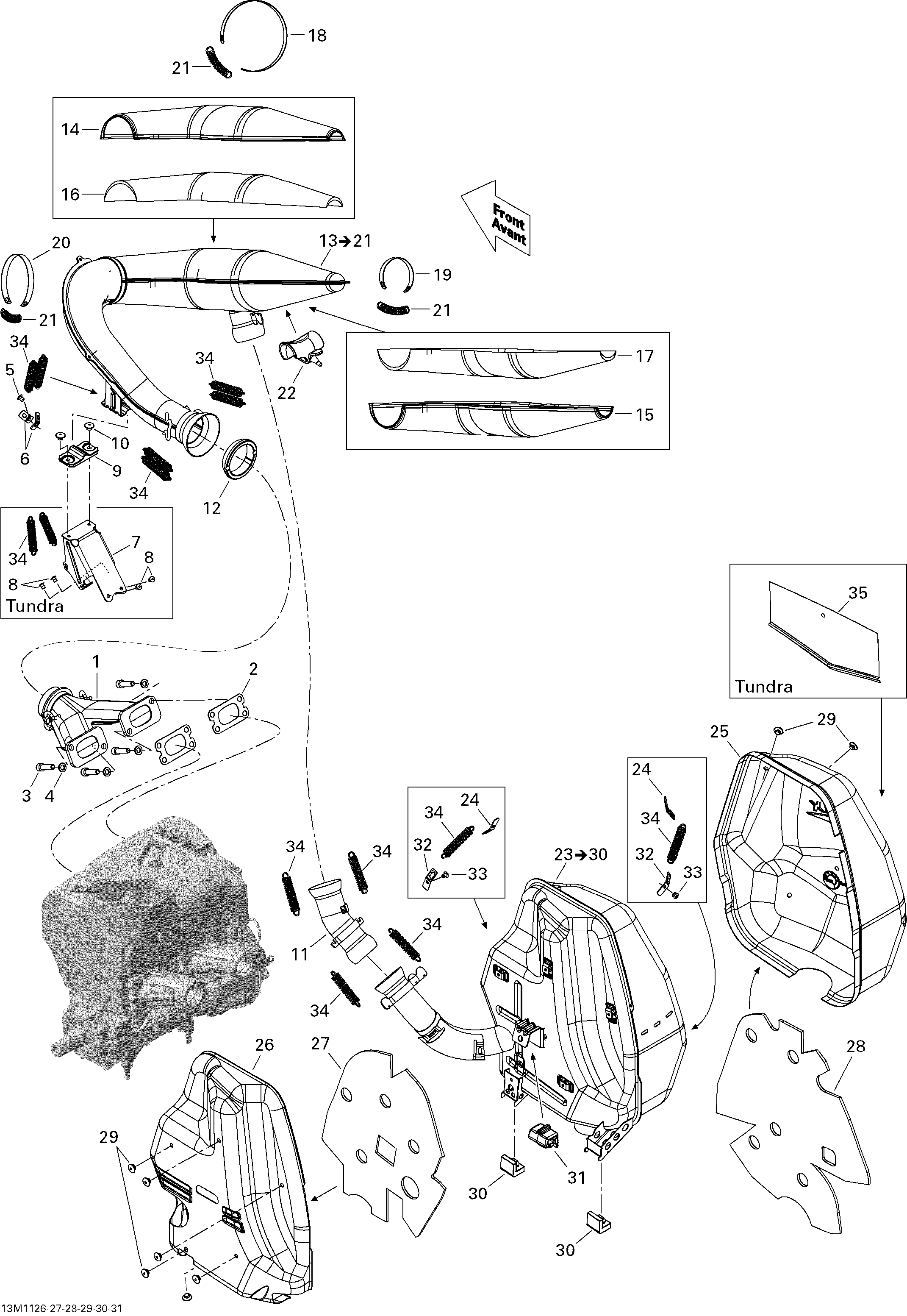

01- Exhaust System для BRP Ski-Doo Renegade Sport 550F XP-FAN - 2011
-
№АртикулНазвание
-
1420673065 Exhaust ManifoldExhaust Manifold
-
2420831849 Gasket 1.0 mmGasket 1.0 mm
-
3205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
4514053837 WasherWasher
-
5390909100 Avex RivetAvex Rivet
-
6514053436 Spring BracketSpring Bracket
-
9514054617 BumperBumper
-
10293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
11514054411 Exhaust ElbowExhaust Elbow
-
12514053644 Exhaust GasketExhaust Gasket
-
13514054414 Calibrated Tube Ass'y. Includes 13 to 21Calibrated Tube Ass'y. Includes 13 to 21
-
14514054208 Rear Upper Half-enveloppeRear Upper Half-enveloppe
-
15514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
16514054244 Upper Insulating WoolUpper Insulating Wool
-
17514054243 Lower Insulating WoolLower Insulating Wool
-
18514053502 Retaining StrapRetaining Strap
-
19514053491 Retaining StrapRetaining Strap
-
20514053498 Retaining StrapRetaining Strap
-
21514053643 SpringSpring
-
22514054513 BumperBumper
-
23514054417 Muffler Ass'y. Includes 23 to 30Muffler Ass'y. Includes 23 to 30
-
24514054155 Spring BracketSpring Bracket
-
25514054433 RH DeflectorRH Deflector
-
26514054420 LH DeflectorLH Deflector
-
27514054421 LH Insulated WoolLH Insulated Wool
-
28514054711 RH Insulating WoolRH Insulating Wool
-
29390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
30514054274 Lower StopperLower Stopper
-
31514054606 Upper StopperUpper Stopper
-
32514054391 Spring BracketSpring Bracket
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34415107100 SpringSpring
