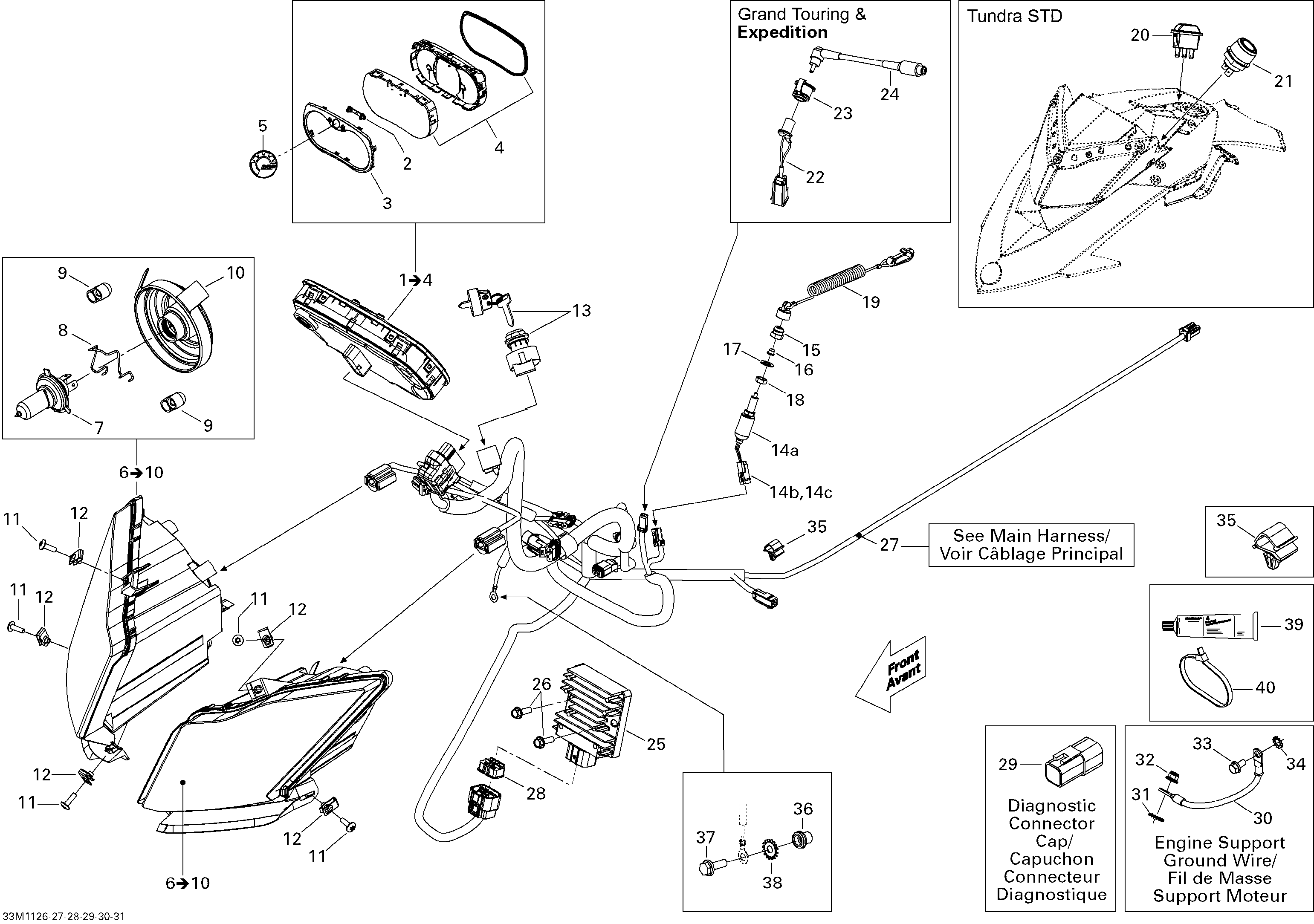

10- Electrical System для BRP Ski-Doo Renegade Sport 550F XP-FAN - 2011
-
№АртикулНазвание
-
1515176992 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
3415129491 Ring Gage SpeedometerRing Gage Speedometer
-
4415129349 LensLens
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6517304194 RH Headlamp Ass'y. Includes 6 to 10RH Headlamp Ass'y. Includes 6 to 10
-
6517304195 LH Headlamp Ass'y. Includes 6 to 10LH Headlamp Ass'y. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176493 Bulb HolderBulb Holder
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
13515176781 Ignition SwitchIgnition Switch
-
14a515175653 Brake SwitchBrake Switch
-
14b515175232 Male TerminalMale Terminal
-
14c515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
15515145900 Switch NutSwitch Nut
-
16570151100 Plunger CapPlunger Cap
-
17250200084 Flat WasherFlat Washer
-
18732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
19515176463 Cap Ass'yCap Ass'y
-
25515176699 Voltage RegulatorVoltage Regulator
-
26210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
27515176990 Main Harness Ass'yMain Harness Ass'y
-
28515176681 LockLock
-
29515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
30515176745 Ground WireGround Wire
-
31250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
34234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
35515176795 ClipClip
-
36415107300 InsertInsert
-
37207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
38250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
40293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
40293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
40293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40293750008 Tie-Rap 350 mmTie-Rap 350 mm
