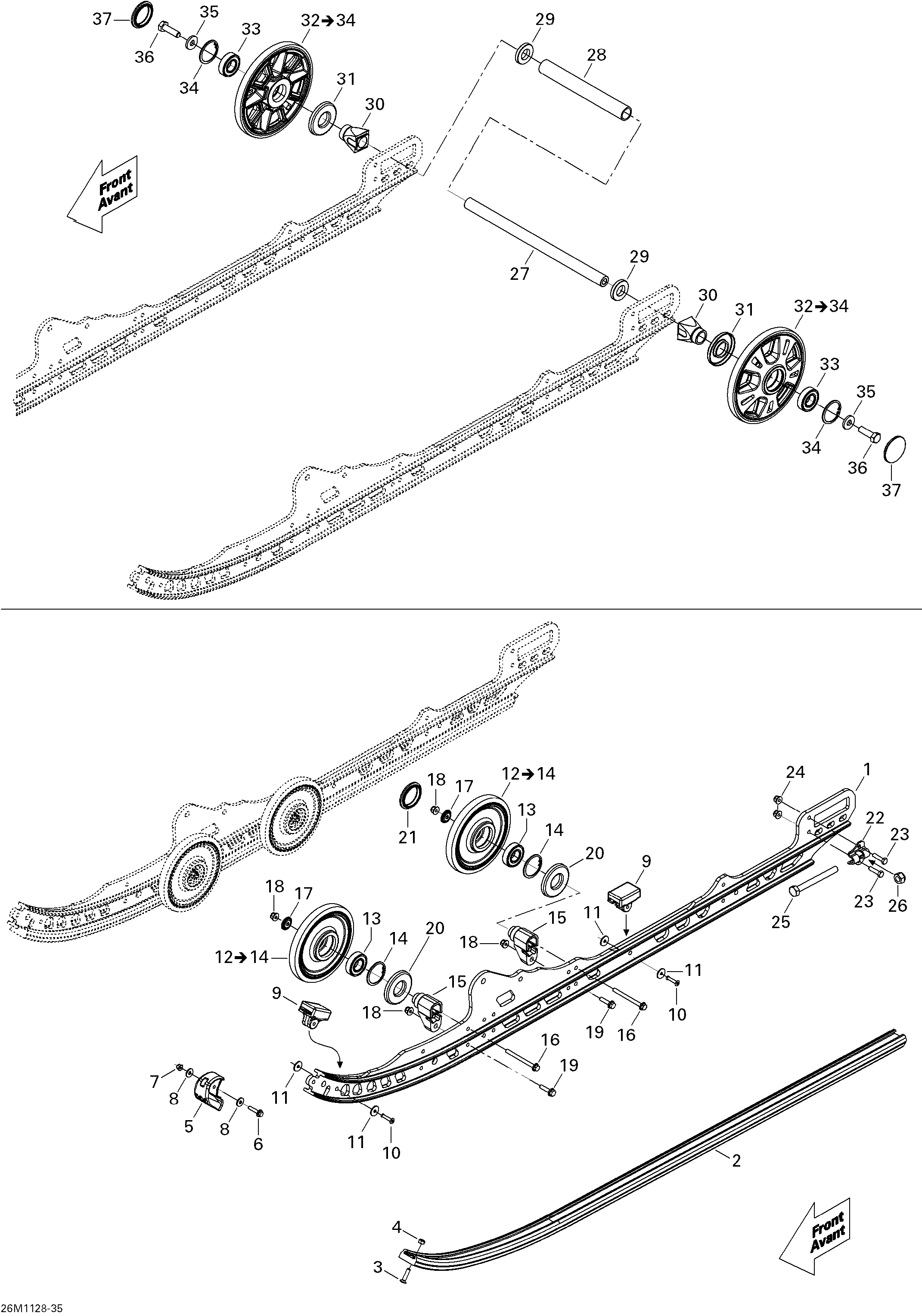

08- Rear Suspension для BRP Ski-Doo Renegade Sport 550F XP-FAN - 2011
-
№АртикулНазвание
-
1503192902 Runner 137''Runner 137''
-
2503191619 SliderSlider
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191311 Wheel Ass'y, 147 mm. Includes 12 to 14Wheel Ass'y, 147 mm. Includes 12 to 14
-
13503190396 Ball BearingBall Bearing
-
14415129371 Retaining RingRetaining Ring
-
15503192793 Molded SupportMolded Support
-
16250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
17503191820 Wheel Cup M6Wheel Cup M6
-
18250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
19250000476 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
20503190434 Labyrinth SealLabyrinth Seal
-
21570063600 Wheel CapWheel Cap
-
22503192814 TensionerTensioner
-
23250000479 Hex. Screw Cap Full Thread M6 X 25Hex. Screw Cap Full Thread M6 X 25
-
24233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25250000481 Hex. Screw Cap Full Thread M10 X 100Hex. Screw Cap Full Thread M10 X 100
-
26250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
27503190429 Rear AxleRear Axle
-
28503191108 SpacerSpacer
-
29503190432 WasherWasher
-
30503190428 Rear Wheel SpacerRear Wheel Spacer
-
31503190434 Labyrinth SealLabyrinth Seal
-
32503192424 Wheel 180 mm Ass'y, Red. Includes 32 to 34Wheel 180 mm Ass'y, Red. Includes 32 to 34
-
33503190396 Ball BearingBall Bearing
-
34415129371 Retaining RingRetaining Ring
-
35503190439 WasherWasher
-
36250000019 Hex. Screw With NylonHex. Screw With Nylon
-
37570063600 Wheel CapWheel Cap
