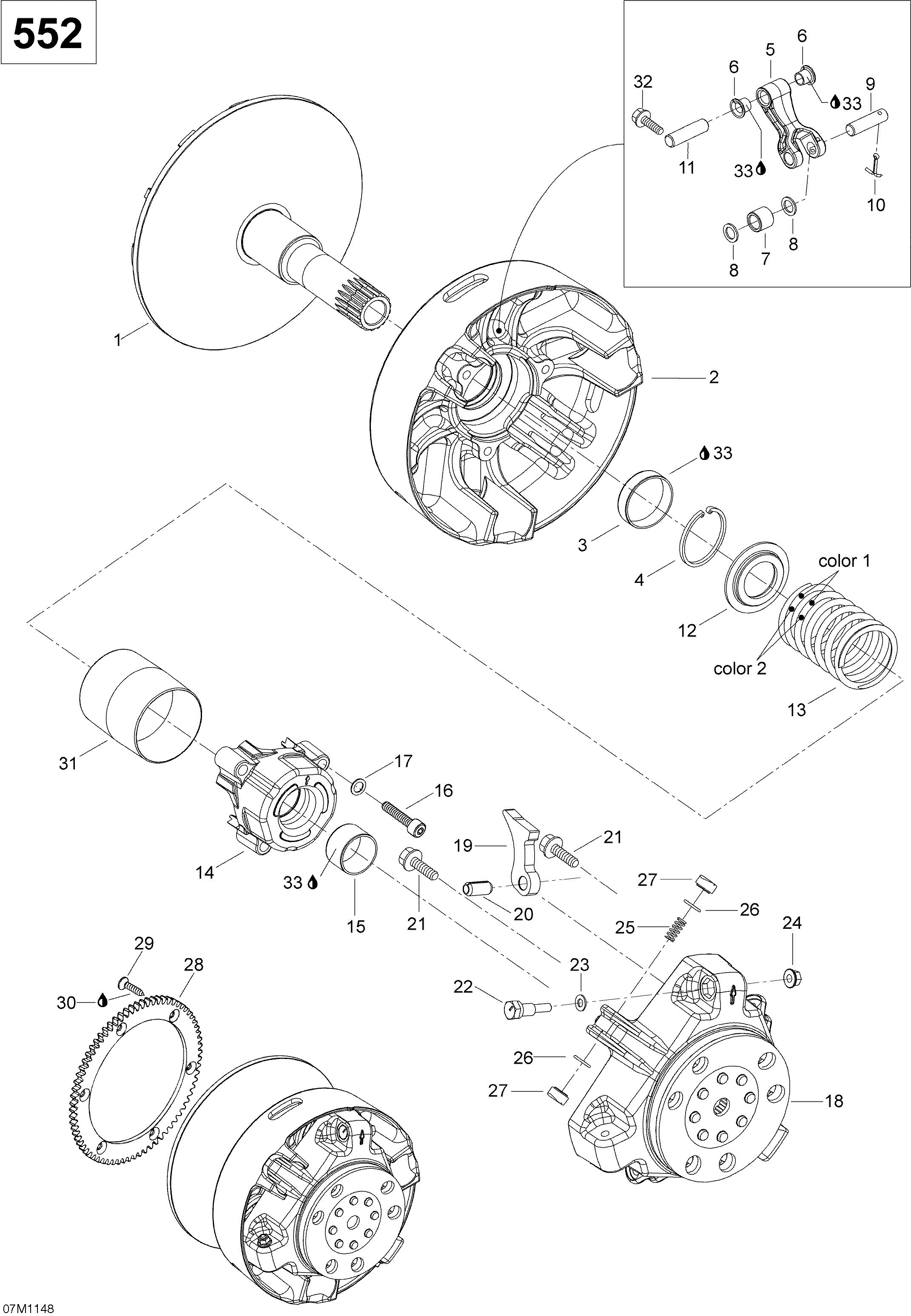

05- Drive Pulley для BRP Ski-Doo Skandic WT 550F YetiII - 2011
-
№АртикулНазвание
-
1417222857 Fixe Flange Ass'yFixe Flange Ass'y
-
2417222181 Sliding Flange Ass'y. Includes 2 to 4Sliding Flange Ass'y. Includes 2 to 4
-
3417222758 BushingBushing
-
4293370037 CirclipCirclip
-
5417222671 Lever. Includes 5 to 6Lever. Includes 5 to 6
-
6417004305 BushingBushing
-
7417222947 RollerRoller
-
8417004302 Stopper WasherStopper Washer
-
9417004308 PinPin
-
10732958001 Cotter PinCotter Pin
-
11417009202 Lever AxleLever Axle
-
12417222312 Spring SeatSpring Seat
-
13414742100 Spring Yellow/GreenSpring Yellow/Green
-
14417007500 Spring Cover Ass'y. Includes 14 to 15Spring Cover Ass'y. Includes 14 to 15
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18417223238 Governor CupGovernor Cup
-
19417222444 Ramp 600Ramp 600
-
20250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
21250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
22417223197 Calibration ScrewCalibration Screw
-
23417005600 WasherWasher
-
24233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417223021 Slider ShoeSlider Shoe
-
28417223043 Ring GearRing Gear
-
29236281684 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31417009205 GuardGuard
-
32250000362 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
33413703100 Loctite 609, 10 mlLoctite 609, 10 ml
