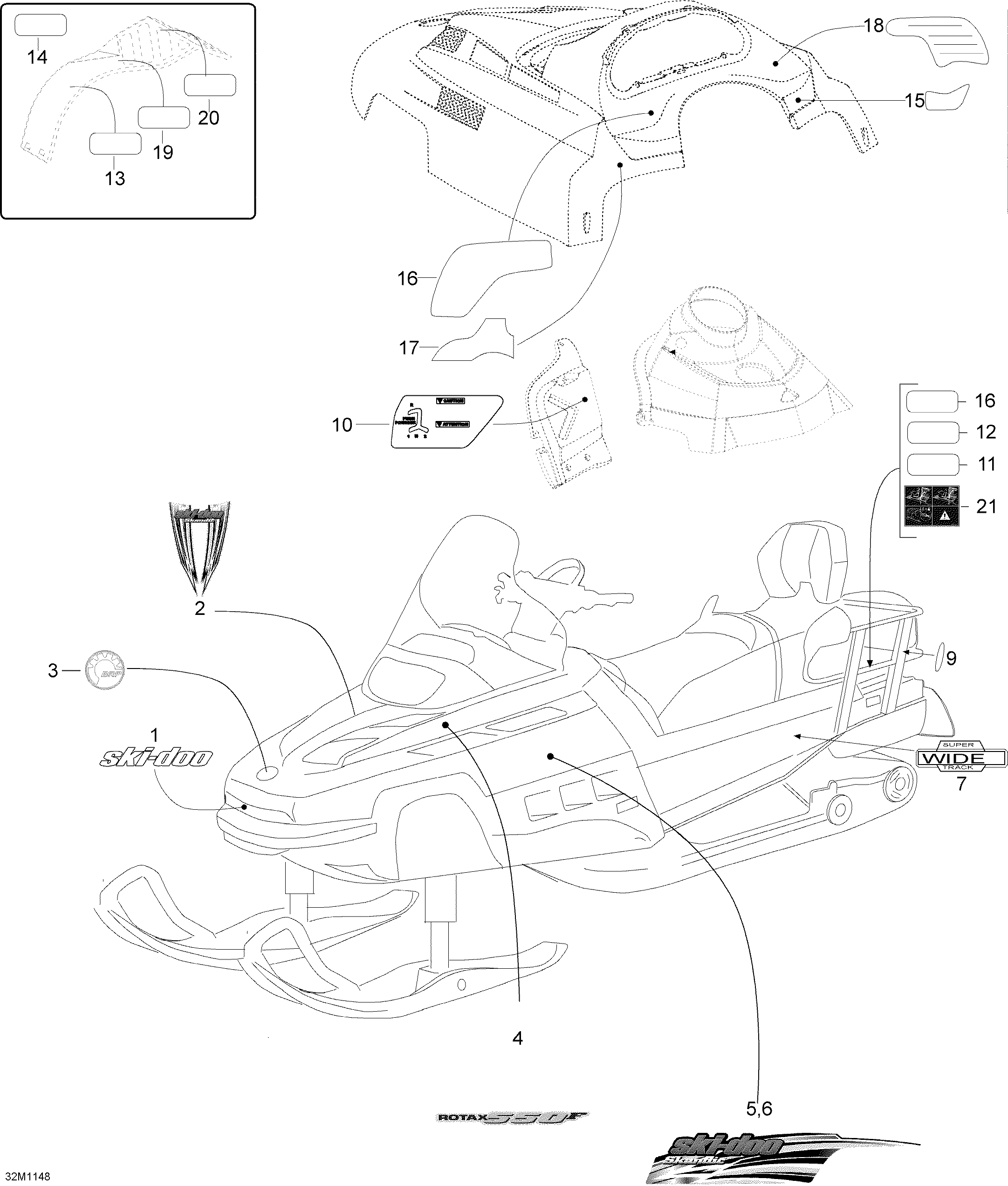

09- Decals для BRP Ski-Doo Skandic WT 550F YetiII - 2011
-
№АртикулНазвание
-
1516000338 Decal - «Ski-Doo»Decal - «Ski-Doo»
-
2516003476 Hood DecalHood Decal
-
3219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
4516003550 Hood DecalHood Decal
-
5516003561 Side Decal RHSide Decal RH
-
6516003560 Side Decal LHSide Decal LH
-
7516003466 Frame Decal, WidetrackFrame Decal, Widetrack
-
9520000523 ReflectorReflector
-
10516001201 Reverse DecalReverse Decal
-
11516003038 Warning Decal-Security-FrenchWarning Decal-Security-French
-
12516003037 Warning Decal-Security-EnglishWarning Decal-Security-English
-
13516002670 Warning Decal, Security Belt GuardWarning Decal, Security Belt Guard
-
14516002715 Caution Decal, Air IntakeCaution Decal, Air Intake
-
15516003470 Instruction DecalInstruction Decal
-
16516003471 Instruction DecalInstruction Decal
-
17516003472 Instruction DecalInstruction Decal
-
18516003473 Instruction DecalInstruction Decal
-
20516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
21516003474 Security LabelSecurity Label
