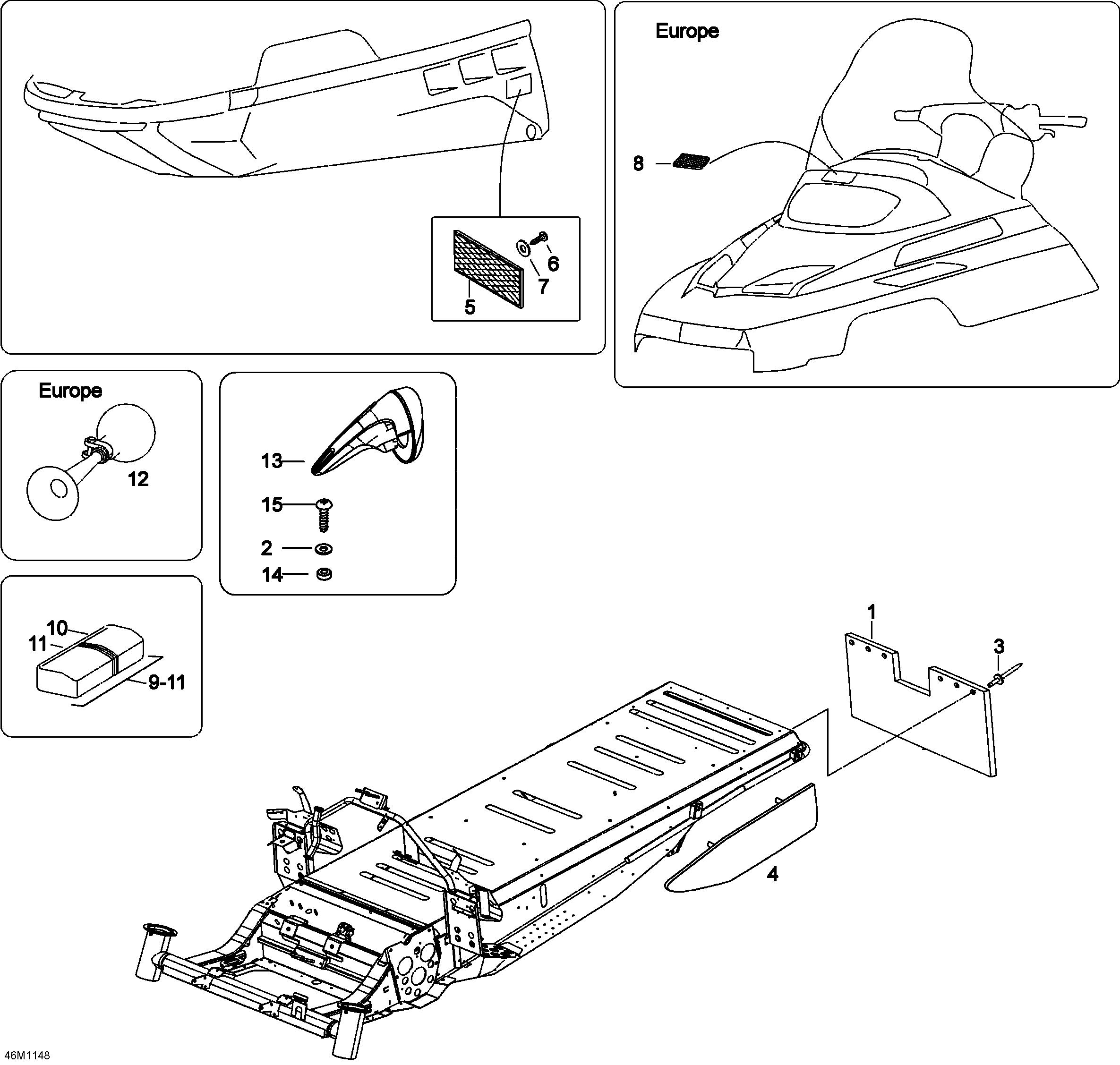

09- Utilities для BRP Ski-Doo Skandic WT 550F YetiII - 2011
-
№АртикулНазвание
-
1M538629 Snow GuardSnow Guard
-
2250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
3M36038 RivetRivet
-
4605354746 LH Side Snow GuardLH Side Snow Guard
-
4605354747 RH Side Snow GuardRH Side Snow Guard
-
5414510200 Reflector, AmberReflector, Amber
-
6M40070 ScrewScrew
-
7234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
9605350525 Tool KitTool Kit
-
11A50121179000 Tool BoxTool Box
-
13517303955 Mirror KitMirror Kit
-
14250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
15250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
