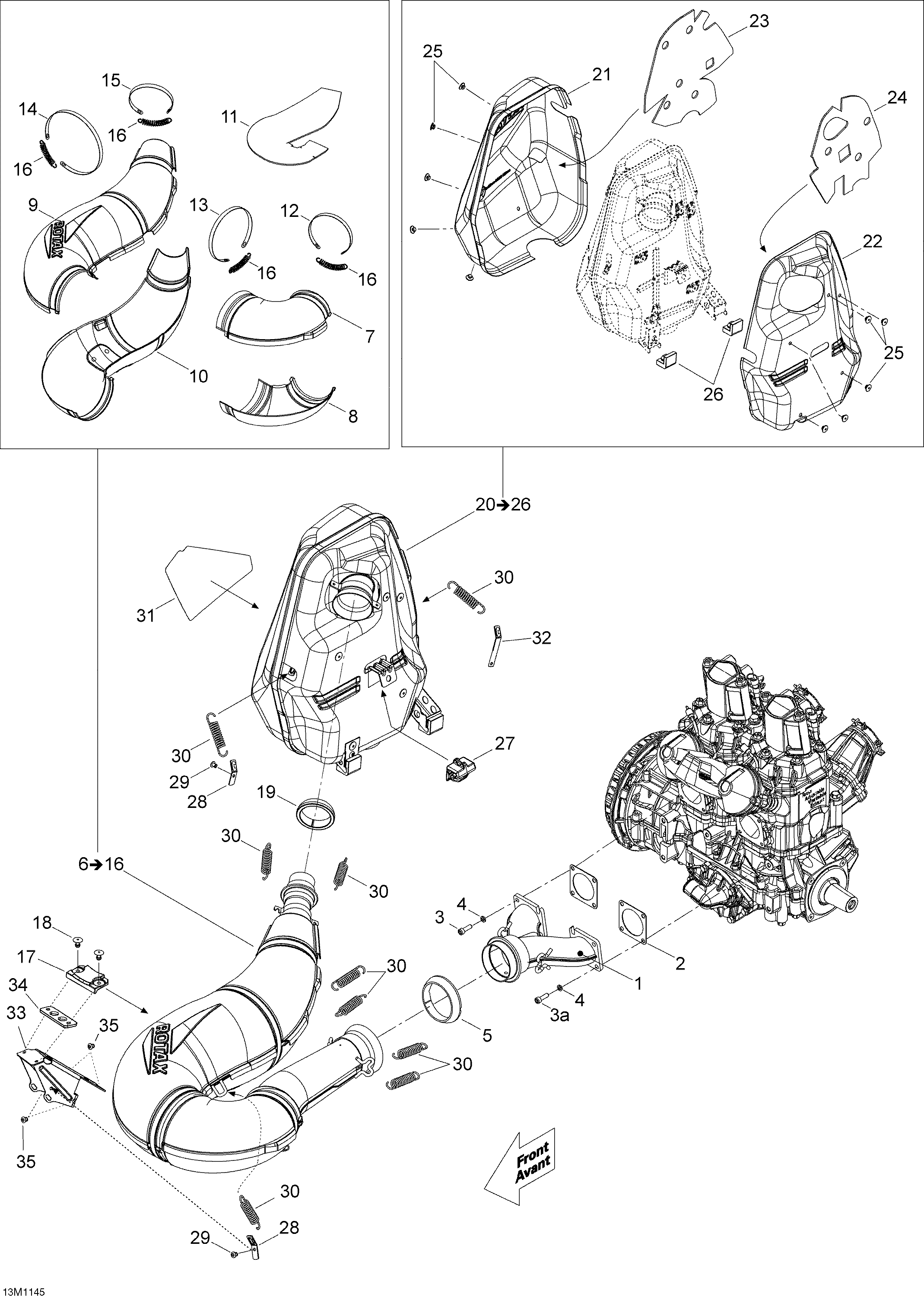

01- Exhaust System для BRP Ski-Doo Skandic WT 600HO ETEC - 2011
-
№АртикулНазвание
-
1420673420 Exhaust ManifoldExhaust Manifold
-
2420850552 GasketGasket
-
3514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
4514053953 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054727 Tuned Pipe Ass'y. Includes 6 to 16Tuned Pipe Ass'y. Includes 6 to 16
-
7514054485 Front Upper EnveloppeFront Upper Enveloppe
-
8514054486 Front Lower EnveloppeFront Lower Enveloppe
-
9514054590 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514053643 SpringSpring
-
17514054275 BumperBumper
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
19514053812 Exhaust GasketExhaust Gasket
-
20514054527 Silencer Ass'y. Includes 20 to 26Silencer Ass'y. Includes 20 to 26
-
21514054434 RH DeflectorRH Deflector
-
22514054528 LH DeflectorLH Deflector
-
23514054298 RH Insulating WoolRH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
25390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
26514054529 Lower StopperLower Stopper
-
27514054606 Upper StopperUpper Stopper
-
28514053393 Spring BracketSpring Bracket
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30514054226 SpringSpring
-
31514054488 Reflective SheetReflective Sheet
-
32514054616 Spring BracketSpring Bracket
-
33514054767 Exhaust Muffler SupportExhaust Muffler Support
-
34514054806 Riser ShimRiser Shim
-
35293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
