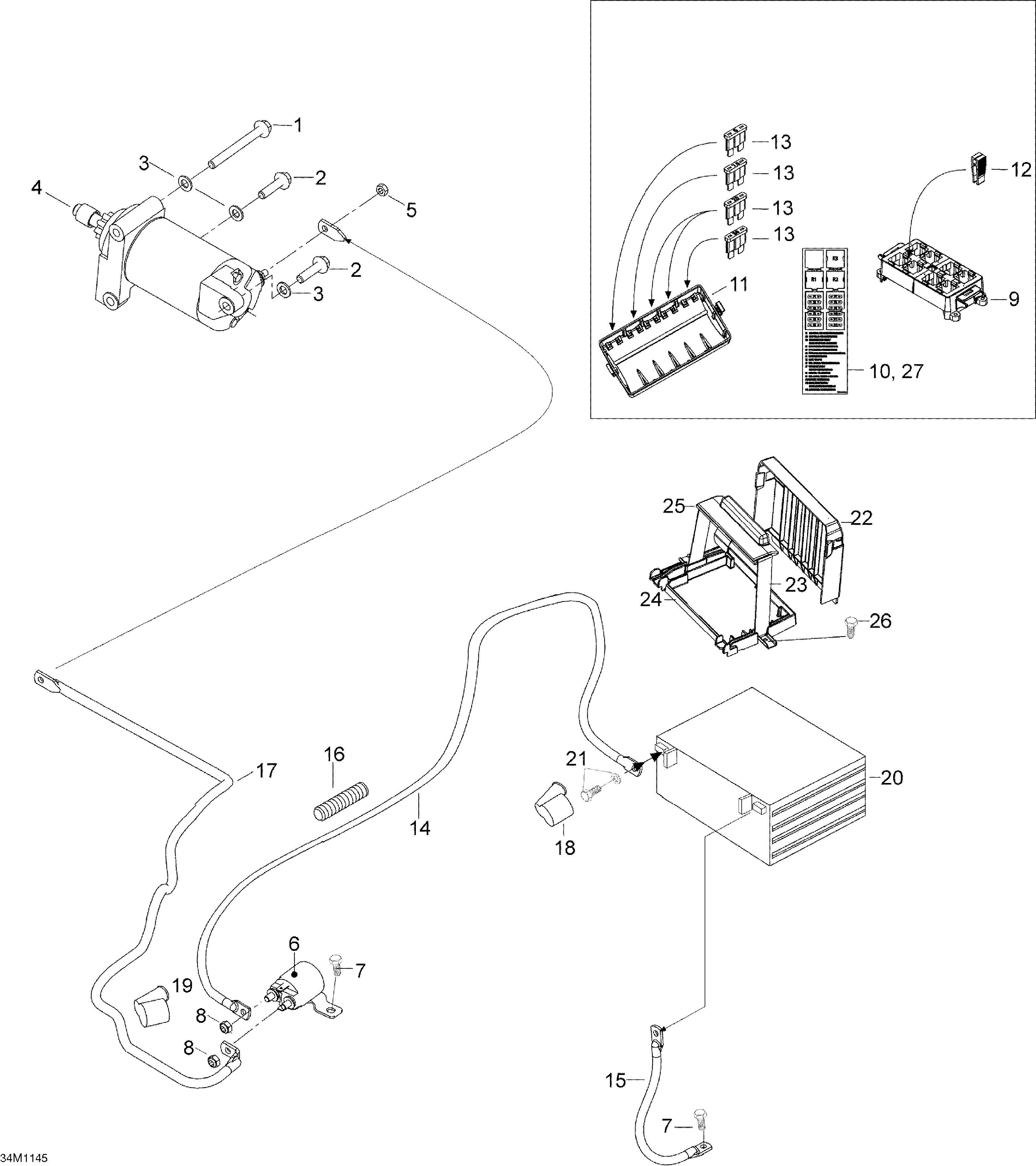

10- Battery And Starter для BRP Ski-Doo Skandic WT 600HO ETEC - 2011
-
№АртикулНазвание
-
1207587544 Hex. Flanged Screw M8 X 75, Scotch GripHex. Flanged Screw M8 X 75, Scotch Grip
-
2207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
3250200008 Flat Washer 8 mmFlat Washer 8 mm
-
4515176858 Starter Ass'yStarter Ass'y
-
5M33010 Nut Elastic M6Nut Elastic M6
-
6515176011 Starter RelayStarter Relay
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10710000739 Relay, 10 AmperesRelay, 10 Amperes
-
11710001026 Fuse CoverFuse Cover
-
12515175811 Fuse ToolFuse Tool
-
13278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
13278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
13409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
13410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
13M42044 Fuse 1 AFuse 1 A
-
14515176805 Battery CableBattery Cable
-
15515176780 Ground WireGround Wire
-
16M28015 HousingHousing
-
17515176806 Start CableStart Cable
-
18278001771 Protector CapProtector Cap
-
19570151000 Protection CapProtection Cap
-
20515176151 Battery. Includes 20 to 21Battery. Includes 20 to 21
-
21515176081 Battery Bolt KitBattery Bolt Kit
-
22510005079 Battery CoverBattery Cover
-
23510005143 Battery StrapBattery Strap
-
24515176804 Battery SupportBattery Support
-
25510005146 Strap CoverStrap Cover
-
26207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
27710000740 Relay, 30 AmperesRelay, 30 Amperes
