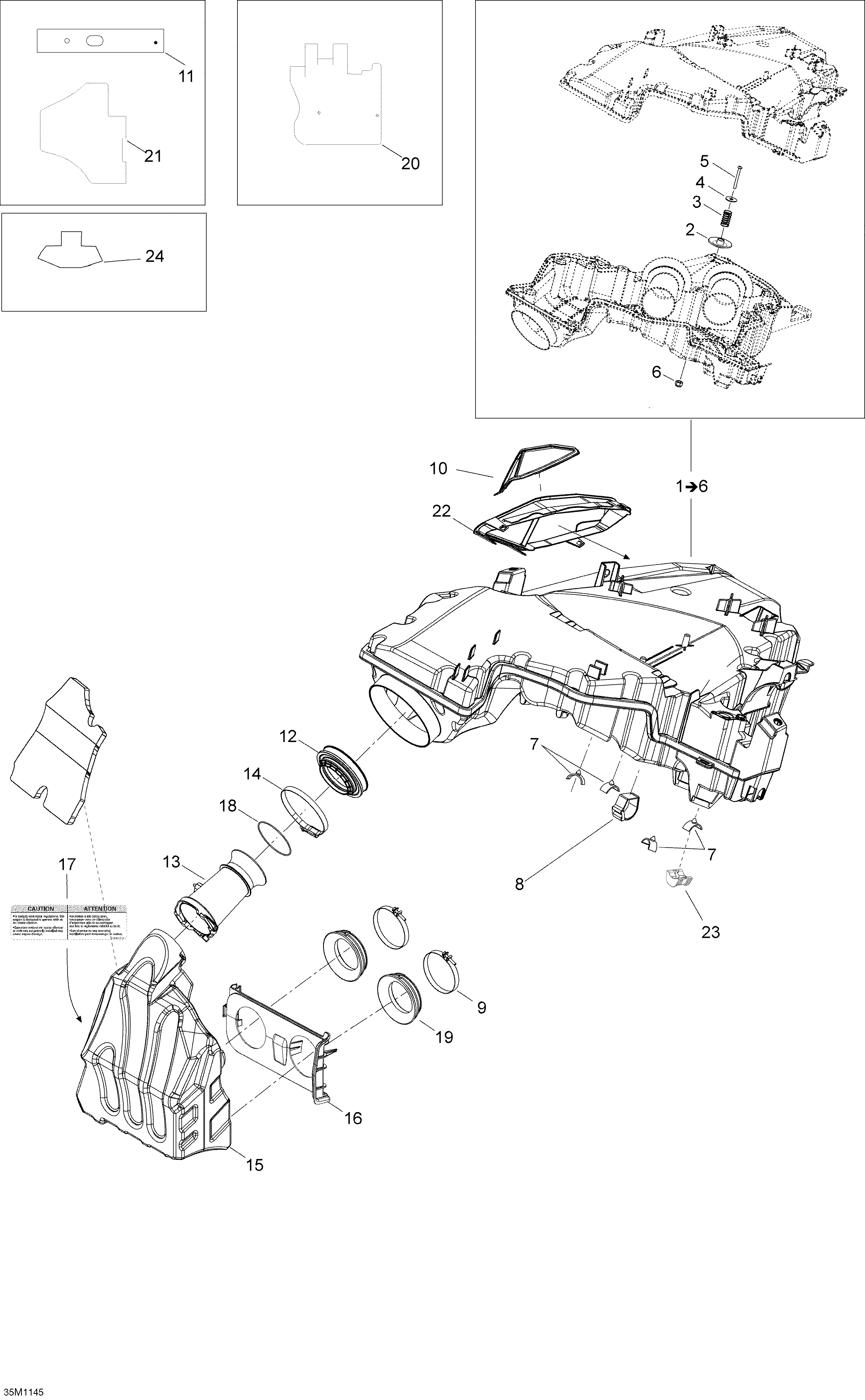

02- Air Intake System для BRP Ski-Doo Skandic WT 600HO ETEC - 2011
-
№АртикулНазвание
-
1508000690 Secondaire Chamber Ass'y. Includes 1 to 6Secondaire Chamber Ass'y. Includes 1 to 6
-
3508000576 SpringSpring
-
4224060201 Flat WasherFlat Washer
-
5205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
7508000537 StopperStopper
-
8508000532 Strip VelcroStrip Velcro
-
9508000346 Gemi ClampGemi Clamp
-
10508000609 Air FilterAir Filter
-
11508000618 Reflective SheetReflective Sheet
-
12508000548 BootBoot
-
13508000662 FluteFlute
-
14514052983 Norma Gear ClampNorma Gear Clamp
-
15508000681 Primary Chamber Ass'yPrimary Chamber Ass'y
-
16508000613 Plate AdapterPlate Adapter
-
17516004651 Caution Label, Air IntakeCaution Label, Air Intake
-
18293300115 O-RingO-Ring
-
19508000614 Air Intake AdapterAir Intake Adapter
-
20508000675 Heat ShieldHeat Shield
-
21508000676 Heat ShieldHeat Shield
-
22508000569 AdapterAdapter
-
23508000572 BumperBumper
-
24508000677 Heat ShieldHeat Shield
