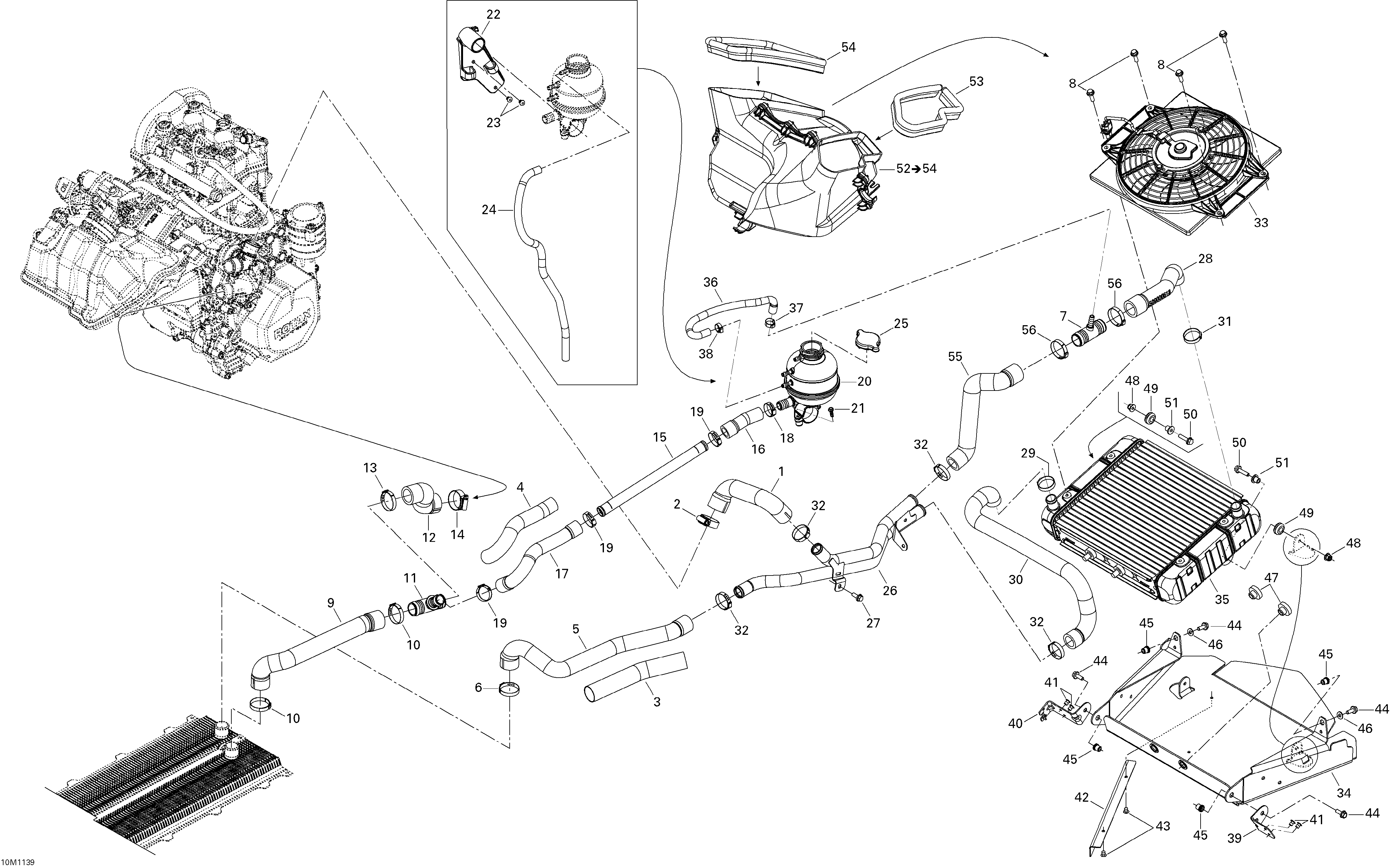

01- Cooling System для BRP Ski-Doo Tundra LT 600ACE - 2011
-
№АртикулНазвание
-
1509000564 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000513 Protector Tube 32 mmProtector Tube 32 mm
-
4509000513 Protector Tube 32 mmProtector Tube 32 mm
-
5509000634 HoseHose
-
6509000529 Oetiker Gear ClampOetiker Gear Clamp
-
7509000510 T-FittingT-Fitting
-
8207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
9509000697 Radiator Return HoseRadiator Return Hose
-
10509000529 Oetiker Gear ClampOetiker Gear Clamp
-
11509000372 T-FittingT-Fitting
-
12509000565 Engine Inlet HoseEngine Inlet Hose
-
13509000529 Oetiker Gear ClampOetiker Gear Clamp
-
14509000443 Aba Gear ClampAba Gear Clamp
-
15509000644 PipePipe
-
16509000698 HoseHose
-
17509000563 HoseHose
-
18509000442 Oetiker Gear ClampOetiker Gear Clamp
-
19293650099 Oetiker Gear ClampOetiker Gear Clamp
-
20509000368 Coolant TankCoolant Tank
-
21241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
22509000694 Front BracketFront Bracket
-
23390909100 Avex RivetAvex Rivet
-
24415129508 Bleeder HoseBleeder Hose
-
25509000180 Pressure CapPressure Cap
-
26509000629 Water PipeWater Pipe
-
27207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
28509000618 Radiator HoseRadiator Hose
-
29293650165 Oetiker ClampOetiker Clamp
-
30509000560 Radiator HoseRadiator Hose
-
31293650165 Oetiker ClampOetiker Clamp
-
32509000735 ClampClamp
-
33509000692 Fan Ass'yFan Ass'y
-
34509000721 Radiator SupportRadiator Support
-
35509000691 RadiatorRadiator
-
36509000635 Breather HoseBreather Hose
-
37293650047 Crimp ClampCrimp Clamp
-
38293650025 Oetiker Gear ClampOetiker Gear Clamp
-
39509000715 SupportSupport
-
40509000772 SupportSupport
-
41390909200 Avex RivetAvex Rivet
-
42509000778 DeflectorDeflector
-
43390909200 Avex RivetAvex Rivet
-
44207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
45415107300 InsertInsert
-
46224061121 Flat WasherFlat Washer
-
47570135100 GrommetGrommet
-
48233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
49293720053 GrommetGrommet
-
50207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
51293900100 BushingBushing
-
52509000612 Air Outlet Deflector Ass'y. Includes 52 to 54Air Outlet Deflector Ass'y. Includes 52 to 54
-
53293250047 Neoprene SealNeoprene Seal
-
54293250047 Neoprene SealNeoprene Seal
-
55509000617 Radiator HoseRadiator Hose
-
56509000529 Oetiker Gear ClampOetiker Gear Clamp
