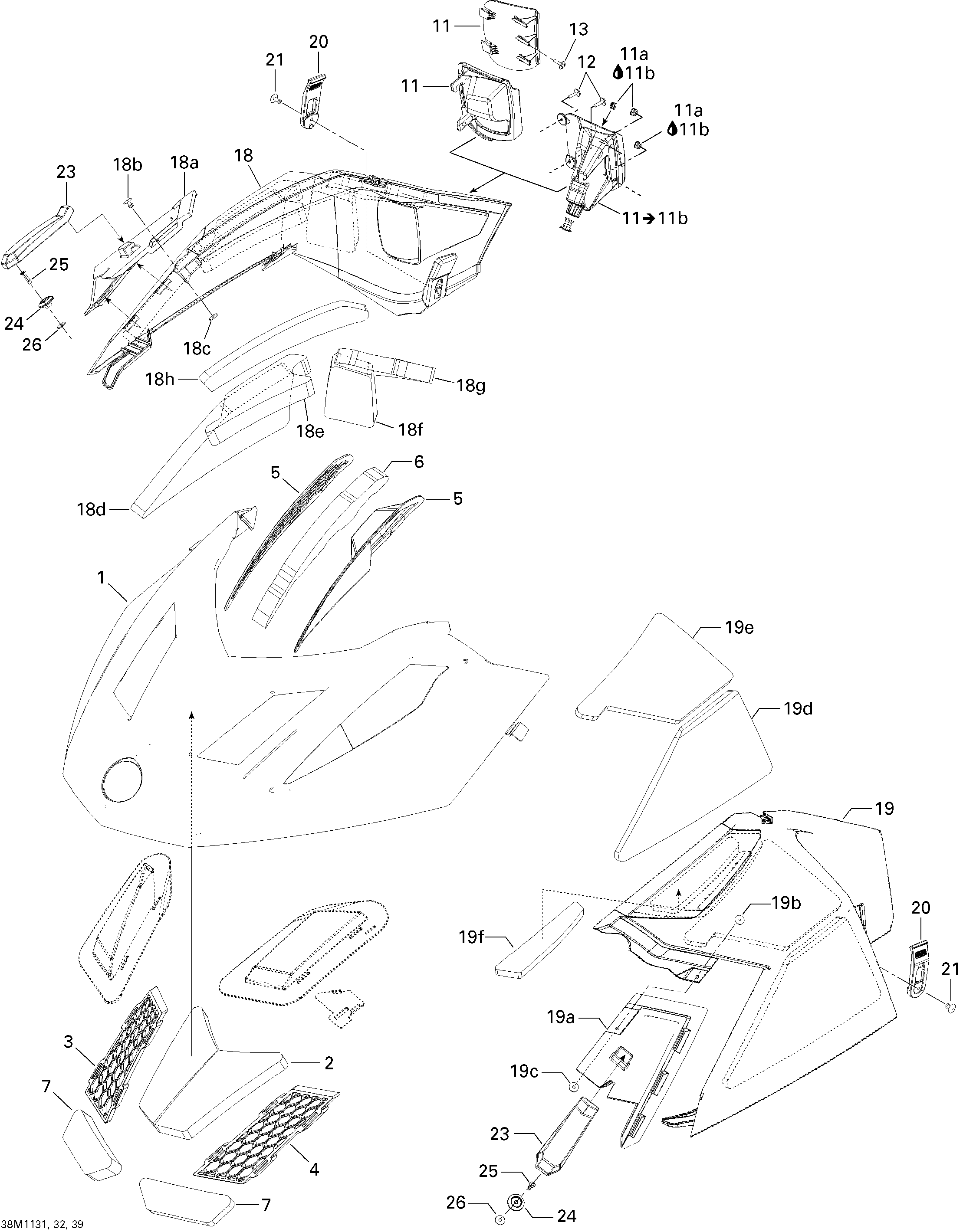

09- Hood для BRP Ski-Doo Tundra LT 600ACE - 2011
-
№АртикулНазвание
-
1517304070 Hood, YellowHood, Yellow
-
1517304616 Hood, BlackHood, Black
-
3517304567 RH Hood GrillRH Hood Grill
-
4517304694 LH Hood GrillLH Hood Grill
-
5517304569 Air InletAir Inlet
-
11517304500 RH ConsoleRH Console
-
18517304071 RH Panel, YellowRH Panel, Yellow
-
18517304617 RH Panel, BlackRH Panel, Black
-
18a517304090 RH InsertRH Insert
-
18b293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18c517124300 WasherWasher
-
18d517304870 FoamFoam
-
18e517304871 FoamFoam
-
19517304307 LH PanelLH Panel
-
19a517304092 LH Panel InsertLH Panel Insert
-
19b293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
19c517124300 WasherWasher
-
19d517304874 FoamFoam
-
19e517304875 FoamFoam
-
20517304743 Latch PanelLatch Panel
-
21293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517304094 Front Latch PanelFront Latch Panel
-
24517304320 Anchor LinkAnchor Link
-
25293150014 Pop Rivet 3/16''Pop Rivet 3/16''
-
26517124300 WasherWasher
