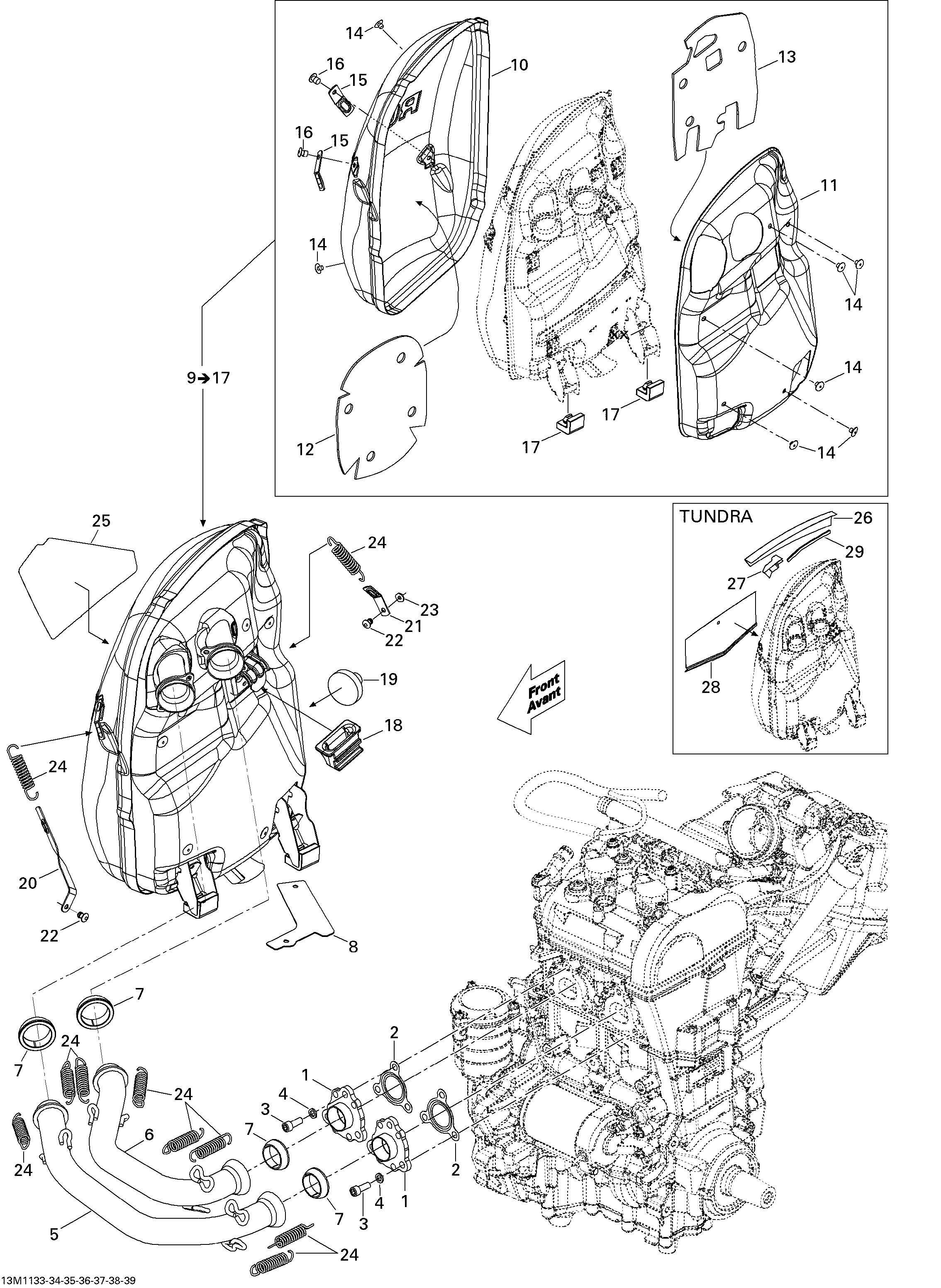

01- Exhaust System для BRP Ski-Doo Tundra LT 600ACE - 2011
-
№АртикулНазвание
-
1514054673 Exhaust ManifoldExhaust Manifold
-
2514054714 GasketGasket
-
3250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
4250200111 WasherWasher
-
5514054625 Exhaust Tube, PTO SideExhaust Tube, PTO Side
-
6514054731 Exhaust Tube, MAG SideExhaust Tube, MAG Side
-
7514054807 Exhaust GasketExhaust Gasket
-
9514054768 Muffler Ass'y. Includes 9 to 17Muffler Ass'y. Includes 9 to 17
-
10514054644 RH Heat ShieldRH Heat Shield
-
11514054645 LH Heat ShieldLH Heat Shield
-
12514054769 RH Insulating WoolRH Insulating Wool
-
13514054770 LH Insulating WoolLH Insulating Wool
-
14390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
15514054522 Spring BracketSpring Bracket
-
16390909200 Avex RivetAvex Rivet
-
17514054496 Lower StopperLower Stopper
-
18514054737 Upper StopperUpper Stopper
-
19514053654 Rubber BumperRubber Bumper
-
20514054620 Spring BracketSpring Bracket
-
21514054522 Spring BracketSpring Bracket
-
22390909100 Avex RivetAvex Rivet
-
23517225900 Flat WasherFlat Washer
-
24415107100 SpringSpring
-
26514054779 Reflective SheetReflective Sheet
-
27514054780 Reflective SheetReflective Sheet
-
28514054820 Reflective SheetReflective Sheet
-
29514054745 Reflective SheetReflective Sheet
