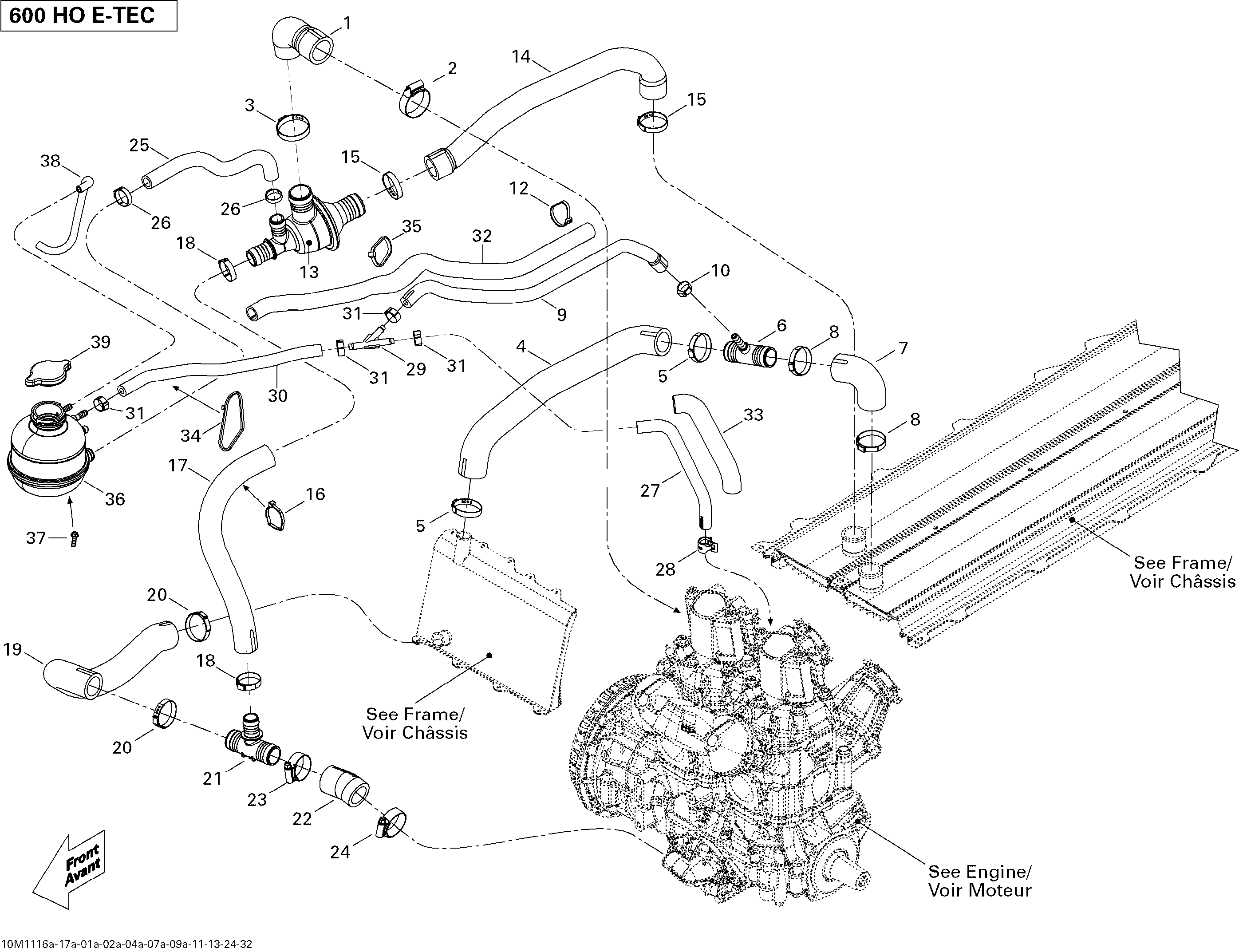

01- Cooling System 600HO ETEC для BRP Ski-Doo Summit X 600HO E-TEC - 2011
-
№АртикулНазвание
-
1509000678 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000529 Oetiker Gear ClampOetiker Gear Clamp
-
4509000670 Radiator HoseRadiator Hose
-
5509000529 Oetiker Gear ClampOetiker Gear Clamp
-
6509000510 T-FittingT-Fitting
-
7509000671 Radiator HoseRadiator Hose
-
8509000529 Oetiker Gear ClampOetiker Gear Clamp
-
9509000502 Bleeder HoseBleeder Hose
-
10293650047 Oetiker ClampOetiker Clamp
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13509000499 Thermostat HousingThermostat Housing
-
14509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
15509000529 Oetiker Gear ClampOetiker Gear Clamp
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17509000672 Bypass HoseBypass Hose
-
18293650099 Oetiker Gear ClampOetiker Gear Clamp
-
19509000673 Radiator HoseRadiator Hose
-
20509000529 Oetiker Gear ClampOetiker Gear Clamp
-
21509000372 T-FittingT-Fitting
-
22509000675 Radiator HoseRadiator Hose
-
23509000443 Aba Gear ClampAba Gear Clamp
-
24509000443 Aba Gear ClampAba Gear Clamp
-
25509000676 Filling HoseFilling Hose
-
26509000442 Oetiker Gear ClampOetiker Gear Clamp
-
27509000741 Bleeder HoseBleeder Hose
-
28293650210 Spring ClampSpring Clamp
-
29293710059 Y-FittingY-Fitting
-
30415129508 Bleeder HoseBleeder Hose
-
31293650046 Oetiker ClampOetiker Clamp
-
32415080000 Tubing 16 mmTubing 16 mm
-
33513033231 Protector Tube, 16 mmProtector Tube, 16 mm
-
34293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36509000368 Coolant TankCoolant Tank
-
37241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
38415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
39509000187 Pressure CapPressure Cap
