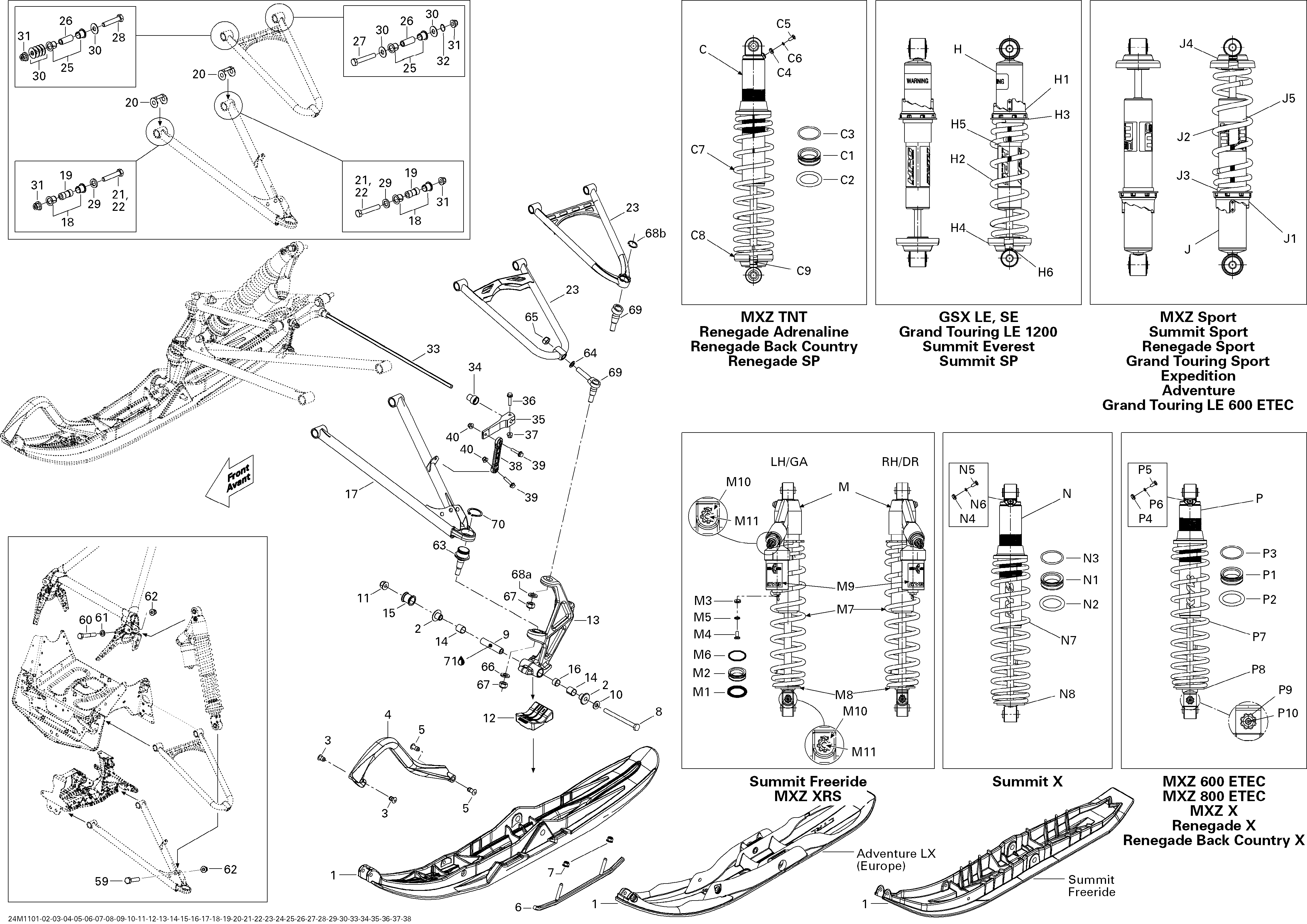

07- Front Suspension And Ski для BRP Ski-Doo Summit X 600HO E-TEC - 2011
-
№АртикулНазвание
-
1415129567 DS Ski, BlackDS Ski, Black
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505072976 Handle, BlackHandle, Black
-
5505072133 RetainerRetainer
-
6860200141 Carbide KitCarbide Kit
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073011 LH Ski LegLH Ski Leg
-
13505073012 RH Ski LegRH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
16505071999 SpacerSpacer
-
17505073040 RH Lower ArmRH Lower Arm
-
17505073039 LH Lower ArmLH Lower Arm
-
18505072208 BushingBushing
-
19505072214 BushingBushing
-
20505072634 Wear PlateWear Plate
-
21250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
23505073013 LH Upper ArmLH Upper Arm
-
23505073014 RH Upper ArmRH Upper Arm
-
25505072250 BushingBushing
-
26505072143 BushingBushing
-
27250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
28250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
29503189564 WasherWasher
-
30505072392 WasherWasher
-
31250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
32505072448 O-RingO-Ring
-
33505072785 StabilisatorStabilisator
-
34505072786 BushingBushing
-
35505072787 Stabilisator LeverStabilisator Lever
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072204 Double Ball Joint LinkDouble Ball Joint Link
-
39207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
40233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
N505072923 Front Shock HPGFront Shock HPG
-
N1503189309 Free PistonFree Piston
-
N2414888312 O-RingO-Ring
-
N3503189308 Piston RingPiston Ring
-
N4505070398 Air Valve RingAir Valve Ring
-
N5505070399 ScrewScrew
-
N6505070400 O-RingO-Ring
-
N7505072726 Painted SpringPainted Spring
-
N8503192608 Spring StopperSpring Stopper
-
59207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
60207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
61503189564 WasherWasher
-
62233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
63505072682 Lower Ball JointLower Ball Joint
-
66234021410 Flat Washer 12 mmFlat Washer 12 mm
-
67250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
68b293370070 CirclipCirclip
-
69505072913 Upper Ball JointUpper Ball Joint
-
70293370035 CirclipCirclip
-
71293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
