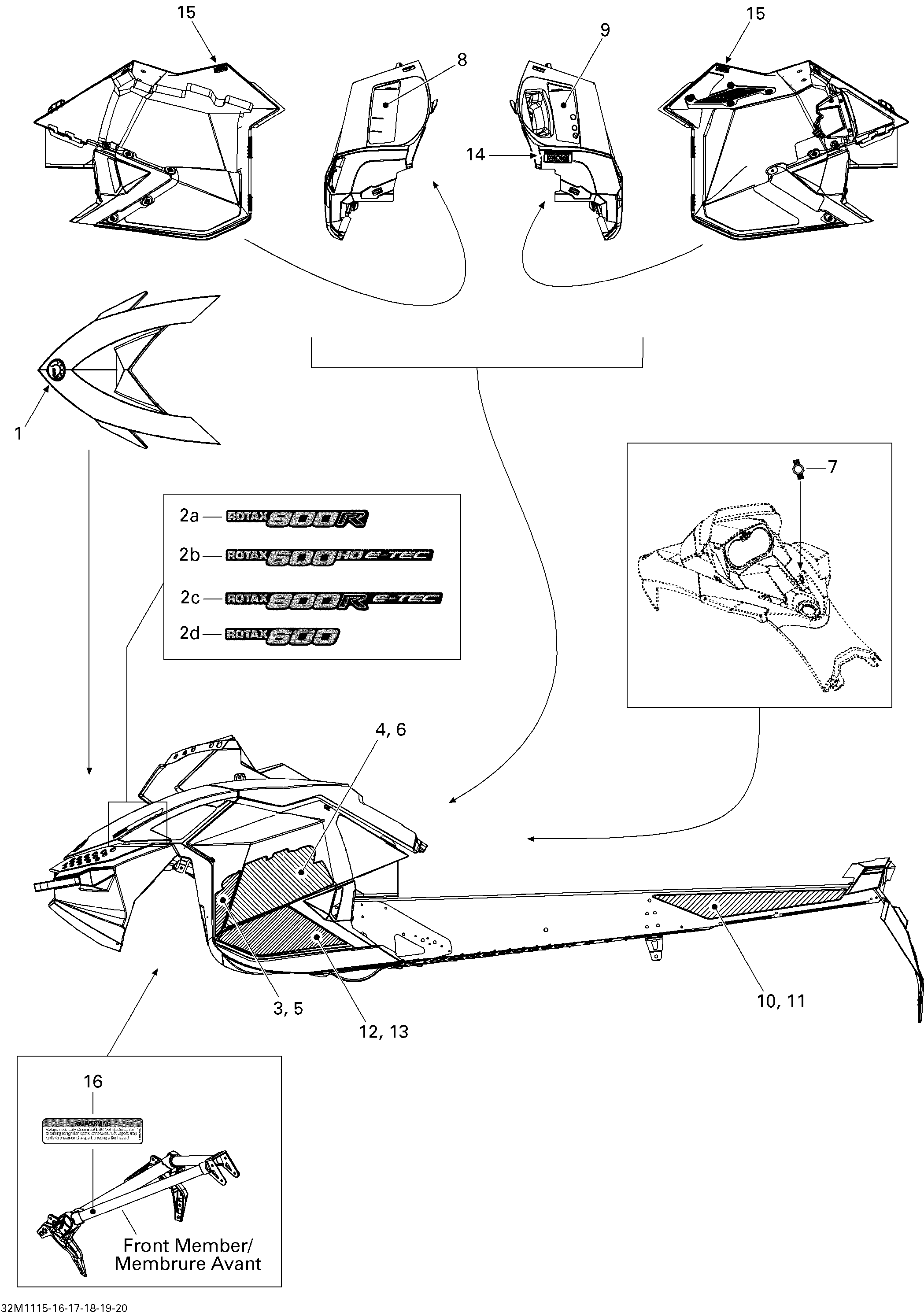

09- Decals 600HOETEC для BRP Ski-Doo Summit X 600HO E-TEC - 2011
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2b516003532 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
6516004455 Side DecalSide Decal
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004589 Warning Decal, SecurityWarning Decal, Security
-
10516004462 RH Frame Decal, REV XP 154''RH Frame Decal, REV XP 154''
-
11516004461 LH Frame Decal, REV XP 154''LH Frame Decal, REV XP 154''
-
12516004395 RH Lower DecalRH Lower Decal
-
13516004394 LH Lower DecalLH Lower Decal
-
14516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
15516004566 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
16516003940 Warning Decal, InjectorsWarning Decal, Injectors
