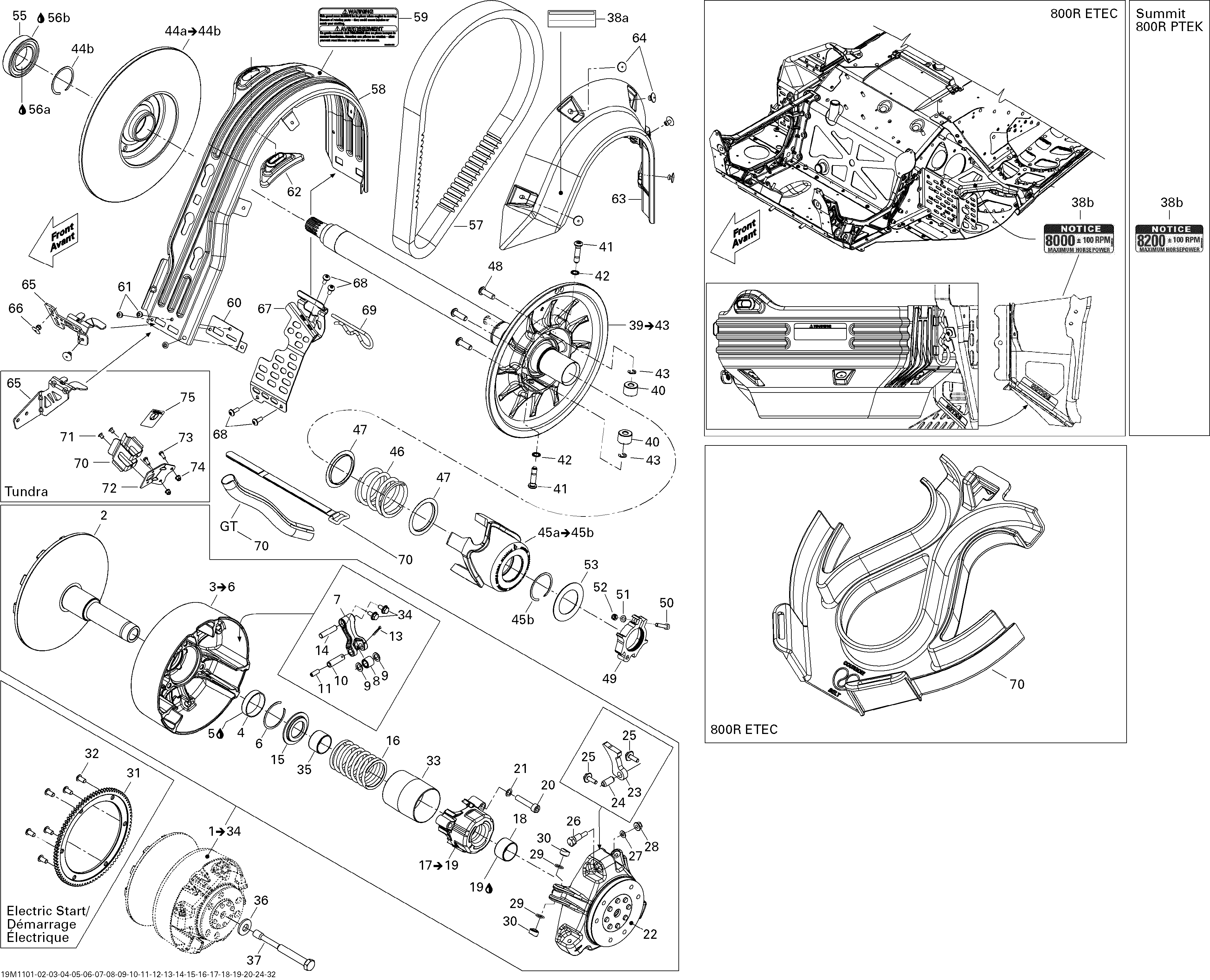

05- Pulley System 800R ETEC для BRP Ski-Doo Summit X 800R E-TEC - 2011
-
№АртикулНазвание
-
2417223232 Fixed Flange Ass'y. 800R ETECFixed Flange Ass'y. 800R ETEC
-
3417223444 Sliding Flange Ass'y. Includes 3 to 6, 800R ETECSliding Flange Ass'y. Includes 3 to 6, 800R ETEC
-
4417223086 Bushing. 800R ETECBushing. 800R ETEC
-
5293800118 Loctite 680, 50 mlLoctite 680, 50 ml
-
6293370071 Circlip. 800R ETECCirclip. 800R ETEC
-
7417222671 LeverLever
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417223177 Dowel Pin Ass'yDowel Pin Ass'y
-
13732958001 Cotter PinCotter Pin
-
14417223164 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414949500 Spring, Violet/pink. 800R ETECSpring, Violet/pink. 800R ETEC
-
16414817800 Spring (Blue/Violet). 800R ETEC, EuropeSpring (Blue/Violet). 800R ETEC, Europe
-
17417222759 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417223425 Governor Cup Ass'y. 800R ETECGovernor Cup Ass'y. 800R ETEC
-
23417223098 Ramp 441. 800R ETECRamp 441. 800R ETEC
-
23417222508 Ramp 413. 800R ETEC, EuropeRamp 413. 800R ETEC, Europe
-
24250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
25250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
26417223460 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29732401030 O-RingO-Ring
-
30417223271 Slider Shoe. 800R ETECSlider Shoe. 800R ETEC
-
31417222952 Ring Gear. 800R ETECRing Gear. 800R ETEC
-
32250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
33417009205 GuardGuard
-
34250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
35417223471 Bushing. 800R ETECBushing. 800R ETEC
-
36250200006 Spring Washer 14 mmSpring Washer 14 mm
-
37417300409 TRA 7 Bolt (M14 X 153.5 mm). 800R ETECTRA 7 Bolt (M14 X 153.5 mm). 800R ETEC
-
38a516004542 English DecalEnglish Decal
-
38b516004656 RPM Decal, (English Version). 800R ETECRPM Decal, (English Version). 800R ETEC
-
39417127253 Fixe Flange Ass'y. Includes 39 to 43, 800R ETECFixe Flange Ass'y. Includes 39 to 43, 800R ETEC
-
40417127016 RollerRoller
-
41417127252 Stud. 800R ETECStud. 800R ETEC
-
42250200009 Lock Washer 8 mmLock Washer 8 mm
-
43414753500 CirclipCirclip
-
44a417126955 Sliding Flange Ass'y. Includes 44a to 44bSliding Flange Ass'y. Includes 44a to 44b
-
44b293370049 CirclipCirclip
-
45a417127133 Cam Ass'y. Includes 45a to 45b, 800R ETECCam Ass'y. Includes 45a to 45b, 800R ETEC
-
45b293370049 CirclipCirclip
-
46417127062 Spring. 800R ETECSpring. 800R ETEC
-
47417127116 Swivel AbutmentSwivel Abutment
-
48250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
49417127248 Adjustment Pulley Ass'yAdjustment Pulley Ass'y
-
50205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
51234051410 Flat Washer M5Flat Washer M5
-
52232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
53417127155 WasherWasher
-
55504152574 Ball BearingBall Bearing
-
56a413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
56b293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
57417300377 Belt. 800R ETECBelt. 800R ETEC
-
58417300357 Belt GuardBelt Guard
-
59516004595 Security Label Decal EnglishSecurity Label Decal English
-
60417300380 ReinforcementReinforcement
-
61390909200 Avex RivetAvex Rivet
-
62417300381 GuideGuide
-
63417300356 Side ProtectorSide Protector
-
64293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
65417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
66293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
67417300375 Belt Guard BracketBelt Guard Bracket
-
68250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
69114045200 Hair PinHair Pin
-
70508000702 Belt Plate. 800R ETECBelt Plate. 800R ETEC
