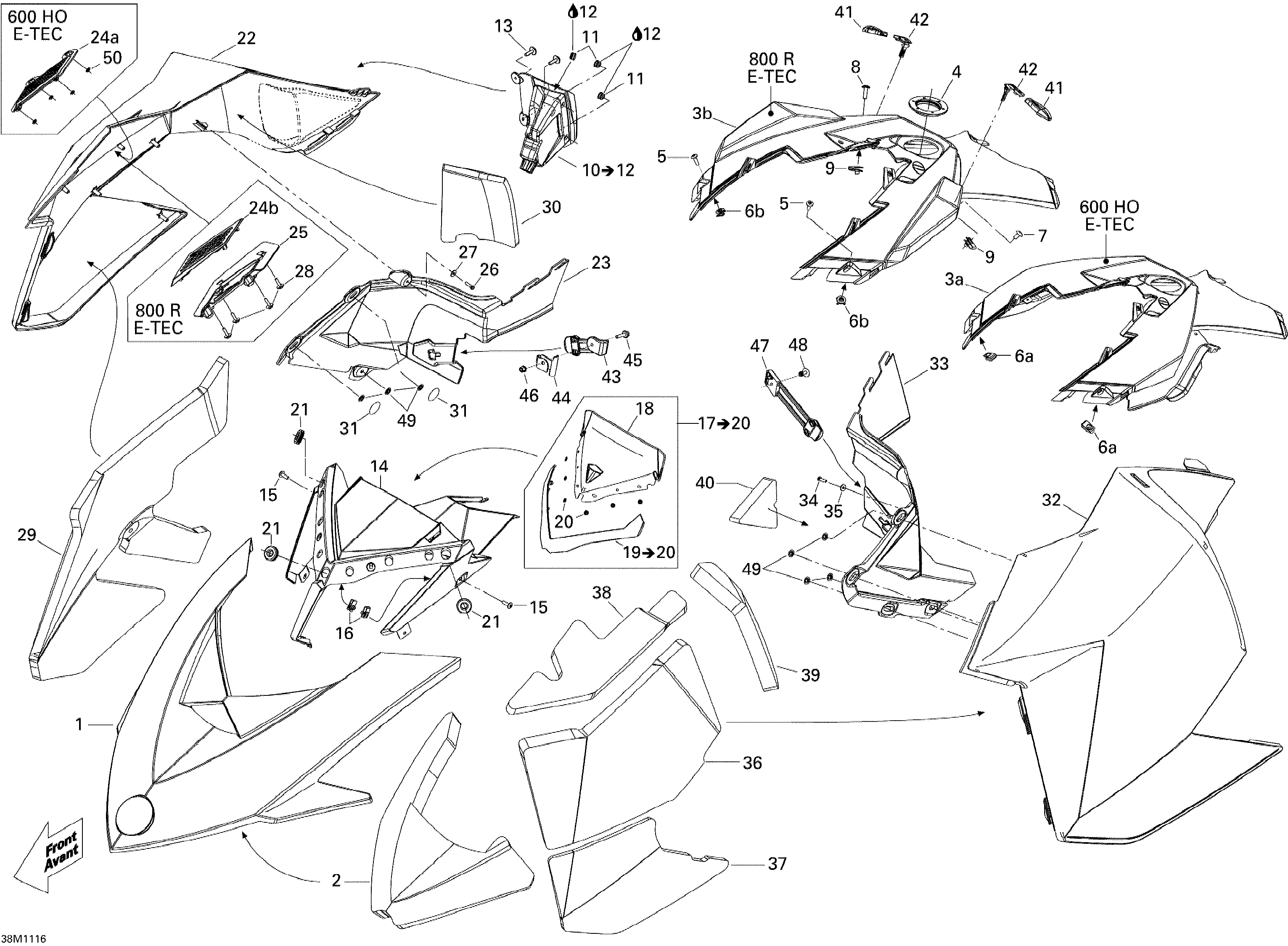

09- Hood 800R E-TEC для BRP Ski-Doo Summit X 800R E-TEC - 2011
-
№АртикулНазвание
-
1517304530 Hood, Deep BlackHood, Deep Black
-
2517304881 Hood FoamHood Foam
-
3b517304672 Console, Deep Black. 800R ETECConsole, Deep Black. 800R ETEC
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6b732610057 Jack Nut M6. 800R ETECJack Nut M6. 800R ETEC
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10517304322 RH Console. Manual Start, Includes 10 to 12RH Console. Manual Start, Includes 10 to 12
-
11275500241 Cap, Black. Manual StartCap, Black. Manual Start
-
12413408300 Loctite, Black Max, 3 ml. Manual StartLoctite, Black Max, 3 ml. Manual Start
-
13250000113 Screw M4 X 16, Type K-40. Manual StartScrew M4 X 16, Type K-40. Manual Start
-
14517304575 Gauge SupportGauge Support
-
15250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
16250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
17517304390 Windshield Ass'y. Includes 17 to 20Windshield Ass'y. Includes 17 to 20
-
19860200089 Windshield Support Kit. Includes 19 to 20Windshield Support Kit. Includes 19 to 20
-
20732610072 Push NutPush Nut
-
21517303756 GrommetGrommet
-
22517304029 RH Panel, Deep Black. Manual Start, Black-BlackRH Panel, Deep Black. Manual Start, Black-Black
-
22517304210 RH Panel, Deep Black. Electric Start, Black-BlackRH Panel, Deep Black. Electric Start, Black-Black
-
22517304422 RH Panel, Bright White. Manual Start, Black-WhiteRH Panel, Bright White. Manual Start, Black-White
-
22517304419 RH Panel, Bright White. Electric Start, Black-WhiteRH Panel, Bright White. Electric Start, Black-White
-
23517303671 RH Moulding Panel, Deep Black. Black-BlackRH Moulding Panel, Deep Black. Black-Black
-
23517304619 RH Moulding Panel, Alloy Orange. Black-WhiteRH Moulding Panel, Alloy Orange. Black-White
-
24b517304763 External Grill. 800R ETECExternal Grill. 800R ETEC
-
25517304764 Internal Grill. 800R ETECInternal Grill. 800R ETEC
-
26241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
27234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
28250000113 Screw M4 X 16, Type K-40. 800R ETECScrew M4 X 16, Type K-40. 800R ETEC
-
29517304883 RH Center FoamRH Center Foam
-
30517304884 RH Panel Rear FoamRH Panel Rear Foam
-
31518325560 Adhesive PatchAdhesive Patch
-
32517304030 LH Panel, Deep Black. Black-BlackLH Panel, Deep Black. Black-Black
-
32517304426 LH Panel, Bright White. Black-WhiteLH Panel, Bright White. Black-White
-
33517303673 LH Moulding Panel, Deep Black. Black-BlackLH Moulding Panel, Deep Black. Black-Black
-
33517304620 LH Moulding Panel, Alloy Orange. Black-WhiteLH Moulding Panel, Alloy Orange. Black-White
-
34241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
35234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
36517304887 LH Panel Center FoamLH Panel Center Foam
-
37517304888 LH Panel Lower FoamLH Panel Lower Foam
-
38517304889 LH Panel Upper FoamLH Panel Upper Foam
-
39517304890 LH Panel Rear FoamLH Panel Rear Foam
-
40517304891 FoamFoam
-
41860200239 Black Latch Kit. Black-Black, Includes 41 to 42Black Latch Kit. Black-Black, Includes 41 to 42
-
41517304435 End Piece Latch, Bright White. Black-WhiteEnd Piece Latch, Bright White. Black-White
-
42517303981 Panel LatchPanel Latch
-
43517303612 Panel LatchPanel Latch
-
44517304221 Latch SupportLatch Support
-
45207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
46233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
47517303808 Panel LatchPanel Latch
-
48293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
49732610072 Push NutPush Nut
