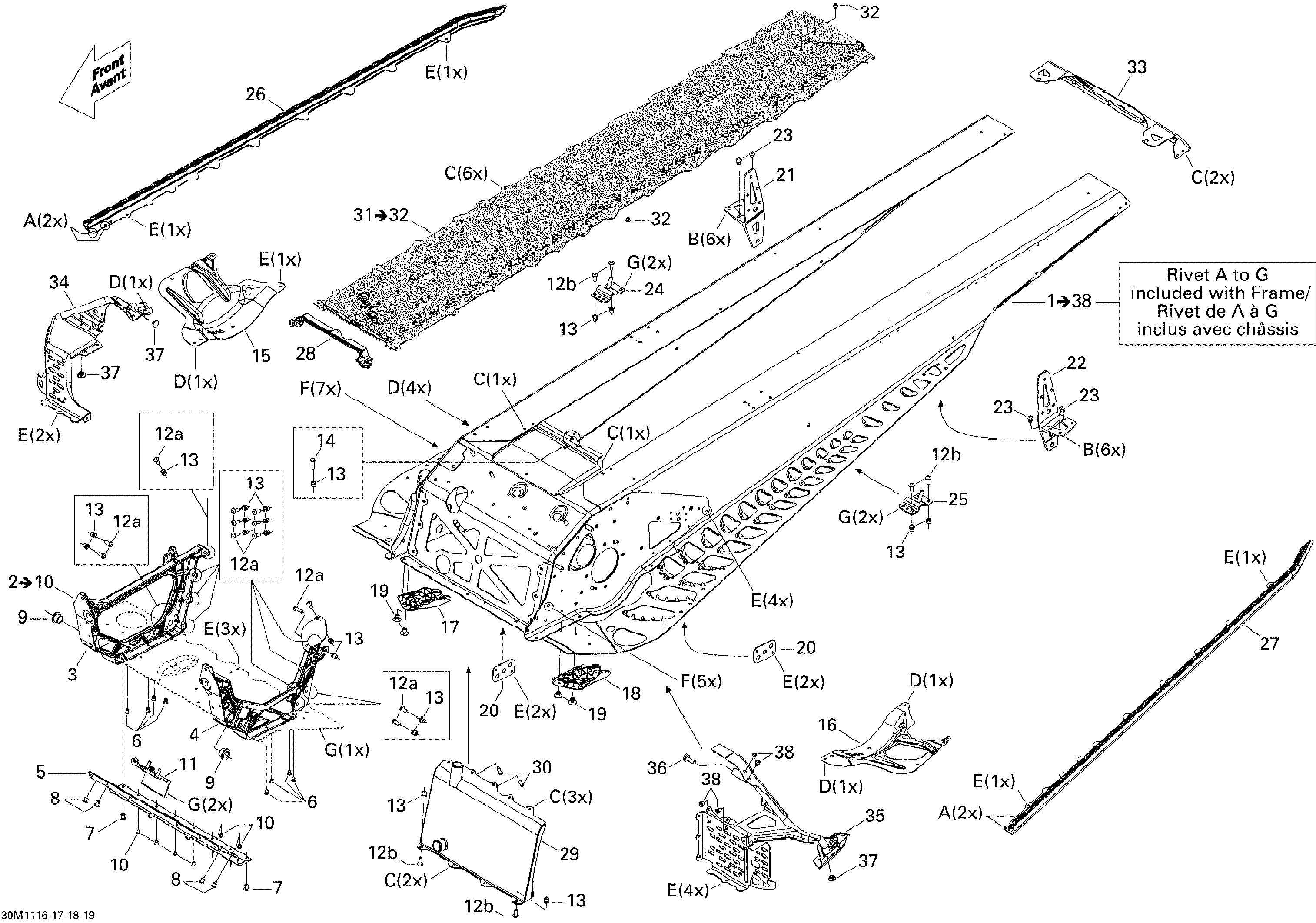

09- Frame для BRP Ski-Doo Summit X 800R E-TEC - 2011
-
№АртикулНазвание
-
1415129579 Frame 146'', Black. Includes 1 to 38, Track 146''Frame 146'', Black. Includes 1 to 38, Track 146''
-
1415129578 Frame 154'', Black. Includes 1 to 38, Track 154''Frame 154'', Black. Includes 1 to 38, Track 154''
-
1415129577 Frame 163'', Black. Includes 1 to 38, Track 163''Frame 163'', Black. Includes 1 to 38, Track 163''
-
2518326290 E Module Ass'y. Includes 2 to 10E Module Ass'y. Includes 2 to 10
-
3518325922 RH MemberRH Member
-
4518325923 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505070954 CushionCushion
-
11518325943 MAG Engine SupportMAG Engine Support
-
12a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15518324874 RH ReinforcementRH Reinforcement
-
16518324875 LH ReinforcementLH Reinforcement
-
17518325782 RH DeflectorRH Deflector
-
18518325783 LH DeflectorLH Deflector
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518201321 Reinforcement PlateReinforcement Plate
-
21518324976 RH Suspension BracketRH Suspension Bracket
-
22518324977 LH Suspension BracketLH Suspension Bracket
-
23293150147 Hemlock RivetHemlock Rivet
-
24518325973 RH Rear BaseRH Rear Base
-
25518325974 LH Rear BaseLH Rear Base
-
26518325159 RH RollerRH Roller
-
27518325160 LH RollerLH Roller
-
28518326656 SealSeal
-
29518326486 Front RadiatorFront Radiator
-
30250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
31518326728 Rear Radiator Ass'y, 146''. Includes 31 to 32, Track 146''Rear Radiator Ass'y, 146''. Includes 31 to 32, Track 146''
-
31518326692 Rear Radiator Ass'y, 154''. Includes 31 to 32, Track 154''Rear Radiator Ass'y, 154''. Includes 31 to 32, Track 154''
-
31518326735 Rear Radiator Ass'y, 163''. Includes 31 to 32, Track 163''Rear Radiator Ass'y, 163''. Includes 31 to 32, Track 163''
-
32293150144 Stavex RivetStavex Rivet
-
33518325421 Rear CapRear Cap
-
34518326216 RH StirupRH Stirup
-
35518326239 LH StirupLH Stirup
-
36250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
37293730042 DartDart
-
38293450268 InsertInsert
-
A390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
B293150174 RivetRivet
-
C390909200 Avex RivetAvex Rivet
-
D390909100 Avex RivetAvex Rivet
-
E293150144 Stavex RivetStavex Rivet
-
F293150146 Henrob RivetHenrob Rivet
-
G293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
