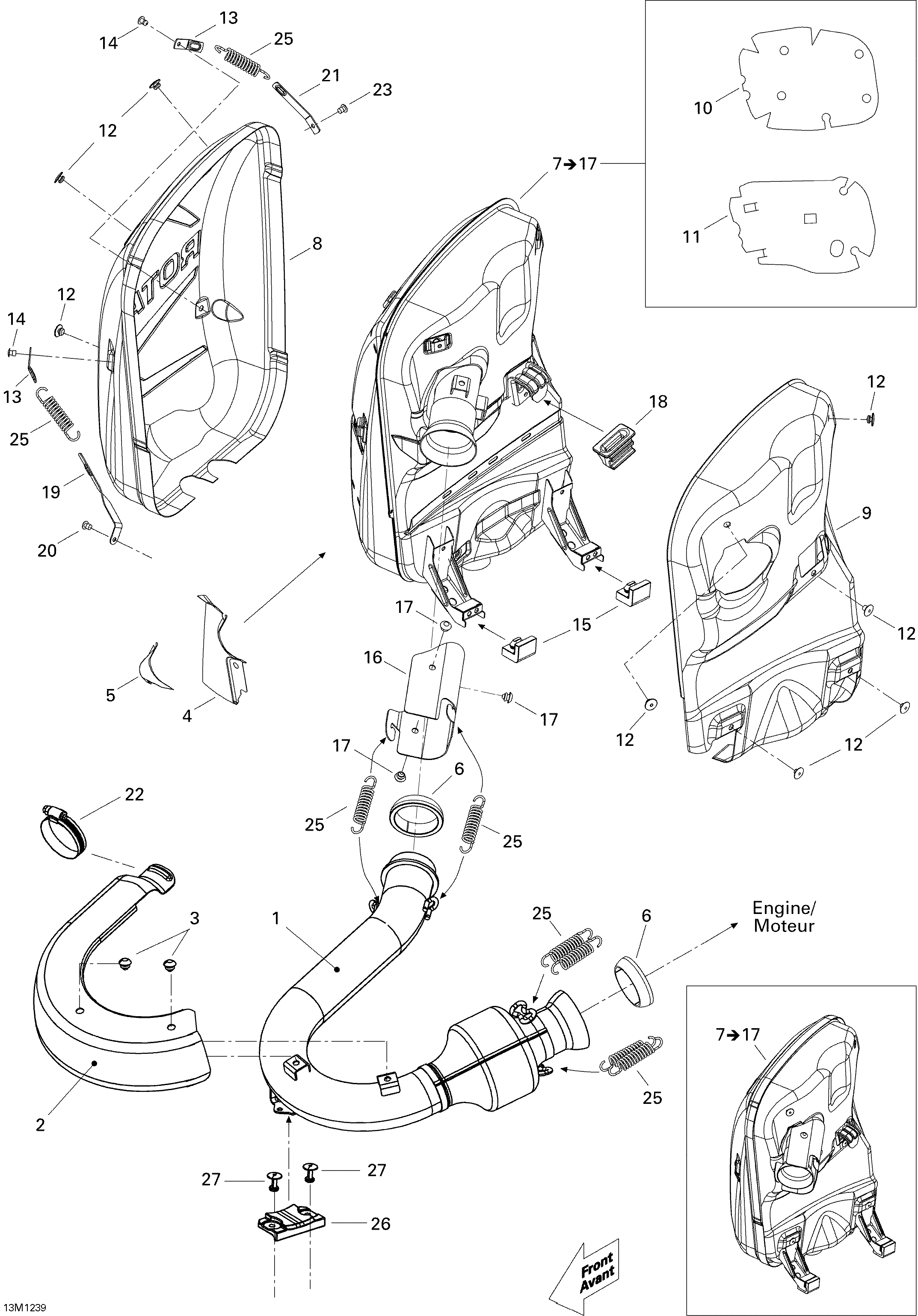

01- Exhaust System для BRP Ski-Doo Expedition LE 1200 XU - 2012
-
№АртикулНазвание
-
1514054843 Exhaust PipeExhaust Pipe
-
3293150173 Rivet 6,4 mmRivet 6,4 mm
-
4514054398 Reflective SheetReflective Sheet
-
5514054399 Reflective SheetReflective Sheet
-
6514054174 Exhaust GasketExhaust Gasket
-
7514054524 Muffler Ass'yMuffler Ass'y
-
8514054474 RH Heat ShieldRH Heat Shield
-
9514054369 LH Heat ShieldLH Heat Shield
-
10514054256 Insulating WoolInsulating Wool
-
11514054257 Insulating WoolInsulating Wool
-
12390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
13514054522 Spring BracketSpring Bracket
-
14390909200 Avex RivetAvex Rivet
-
15514054529 Lower StopperLower Stopper
-
16514054396 DeflectorDeflector
-
17293150173 Rivet 6,4 mmRivet 6,4 mm
-
18514054346 StopperStopper
-
19514054620 Spring BracketSpring Bracket
-
20390909100 Avex RivetAvex Rivet
-
21514054484 Spring BracketSpring Bracket
-
22293650036 Tridon ClampTridon Clamp
-
23390909200 Avex RivetAvex Rivet
-
25514054226 SpringSpring
-
26514054275 BumperBumper
