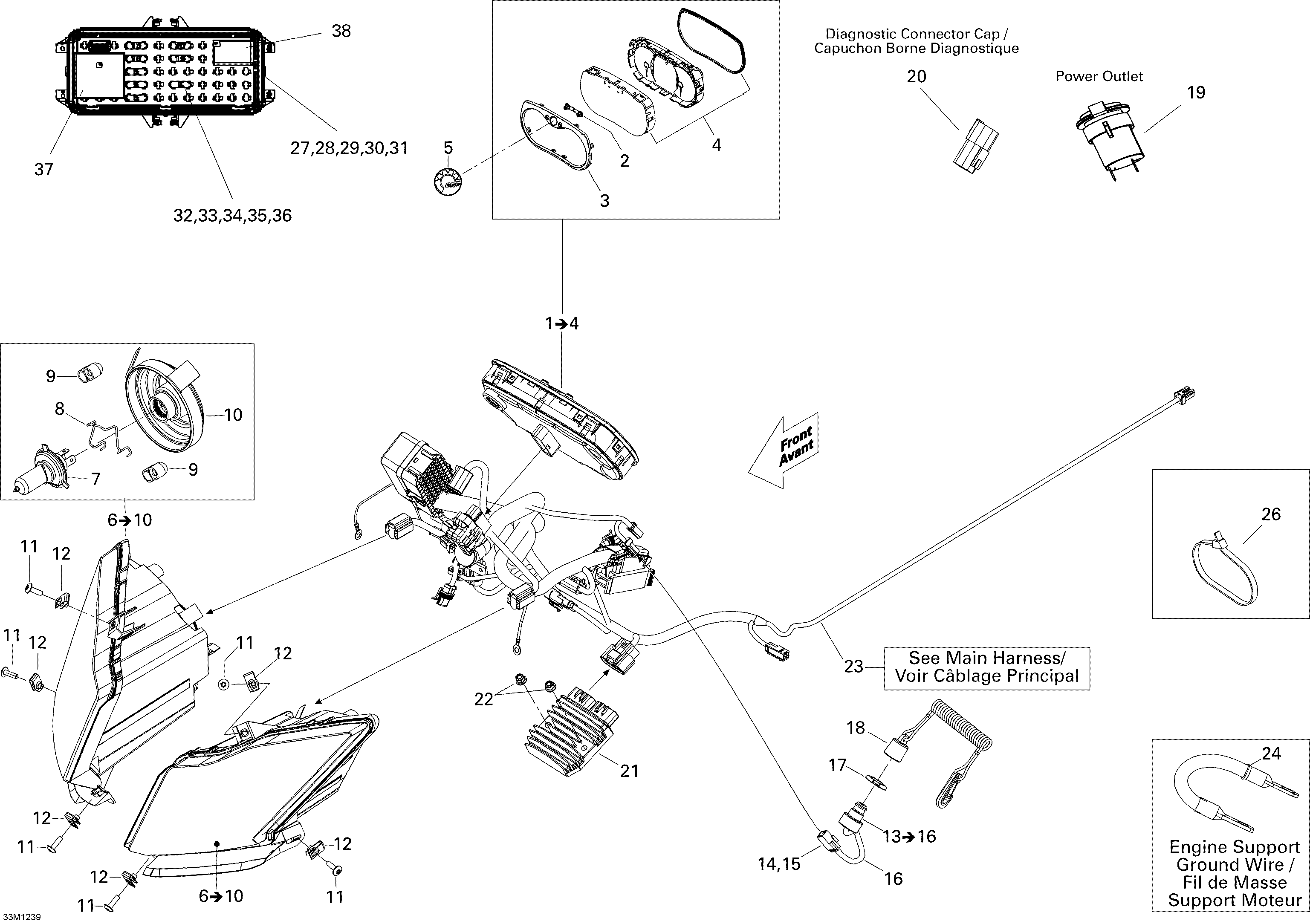

10- Electrical System для BRP Ski-Doo Expedition LE 1200 XU - 2012
-
№АртикулНазвание
-
1515177240 SpeedometerSpeedometer
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
6517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13515176815 Dess SwitchDess Switch
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing 12 mmTubing 12 mm
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515177057 DESS CapDESS Cap
-
19710001248 Outlet DCOutlet DC
-
20515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
21278002021 Voltage RegulatorVoltage Regulator
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23515177076 Main HarnessMain Harness
-
24515176883 Ground WireGround Wire
-
26293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
26293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
27710000781 Fuse PullerFuse Puller
-
28710001026 Fuse CoverFuse Cover
-
30278002172 FoamFoam
-
31710000660 Fuse Box Ass'yFuse Box Ass'y
-
32710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
33710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
34710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
35710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
36710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
37710000740 Relay, 30 AmperesRelay, 30 Amperes
-
38710000739 Relay, 10 AmperesRelay, 10 Amperes
