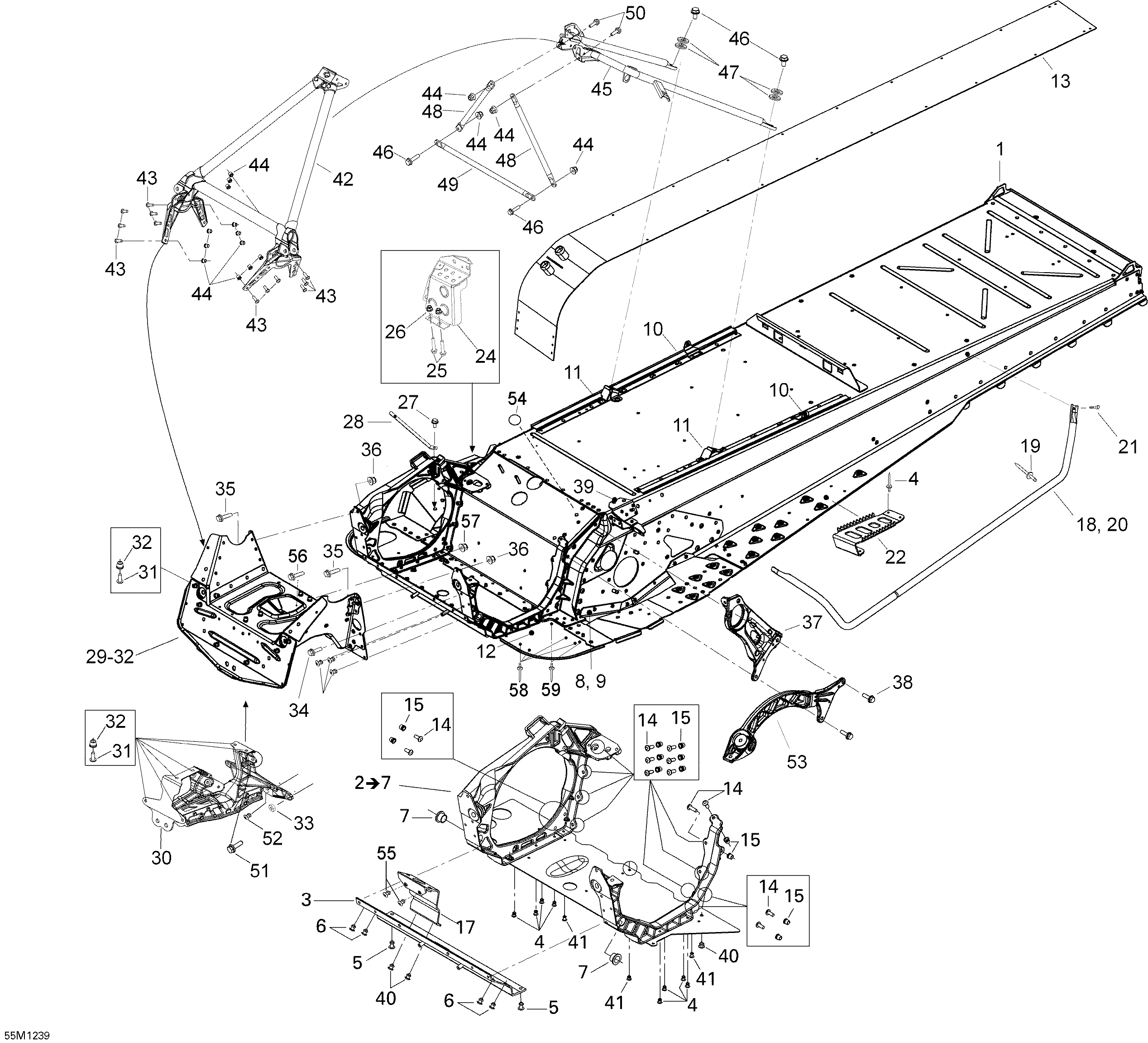

09- Frame and Components для BRP Ski-Doo Expedition LE 1200 XU - 2012
-
№АртикулНазвание
-
1518326985 Frame XU 4TEC SC-5Frame XU 4TEC SC-5
-
2518326524 E ModuleE Module
-
3518326198 Front MemberFront Member
-
4293150144 Stavex RivetStavex Rivet
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505072690 Leg CushionLeg Cushion
-
8518326439 Drive Axle Cover LHDrive Axle Cover LH
-
9518326440 Drive Axle Cover RHDrive Axle Cover RH
-
10518325987 Seat Box BracketSeat Box Bracket
-
11518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
11518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
12518325524 Frame Corner LHFrame Corner LH
-
12518325526 Frame Corner RHFrame Corner RH
-
13509000645 Radiator TunnelRadiator Tunnel
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17518325371 MAG Engine SupportMAG Engine Support
-
18518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
19293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
20518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
21207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
22520000492 FootrestFootrest
-
24518326464 Toe Hook LHToe Hook LH
-
24518326465 Toe Hook RHToe Hook RH
-
25207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28514054616 Spring BracketSpring Bracket
-
29518326764 ''S'' Module''S'' Module
-
30518325925 Front Suspension SupportFront Suspension Support
-
31207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
35250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37518326185 Pulley Support MachinedPulley Support Machined
-
38207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
39605355235 Fastening BracketFastening Bracket
-
40293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
41293150144 Stavex RivetStavex Rivet
-
42518326555 Front MemberFront Member
-
43207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
46207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
48518325114 Upper Column SupportUpper Column Support
-
49518325115 Center Column SupportCenter Column Support
-
50250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
51207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
52293150147 Hemlock RivetHemlock Rivet
-
53518326336 Brace Ass'yBrace Ass'y
-
54518325560 Adhesive PatchAdhesive Patch
-
55207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
56250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
57233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
58293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
59390909200 Avex RivetAvex Rivet
